Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
  • Reign SE
Reign SE

/ GIANT

Reign SE

SKU: 9125008105
$7,999.00
$7,999.00

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.
Size
ColourBlack Lightning
Out of stock

Specifications

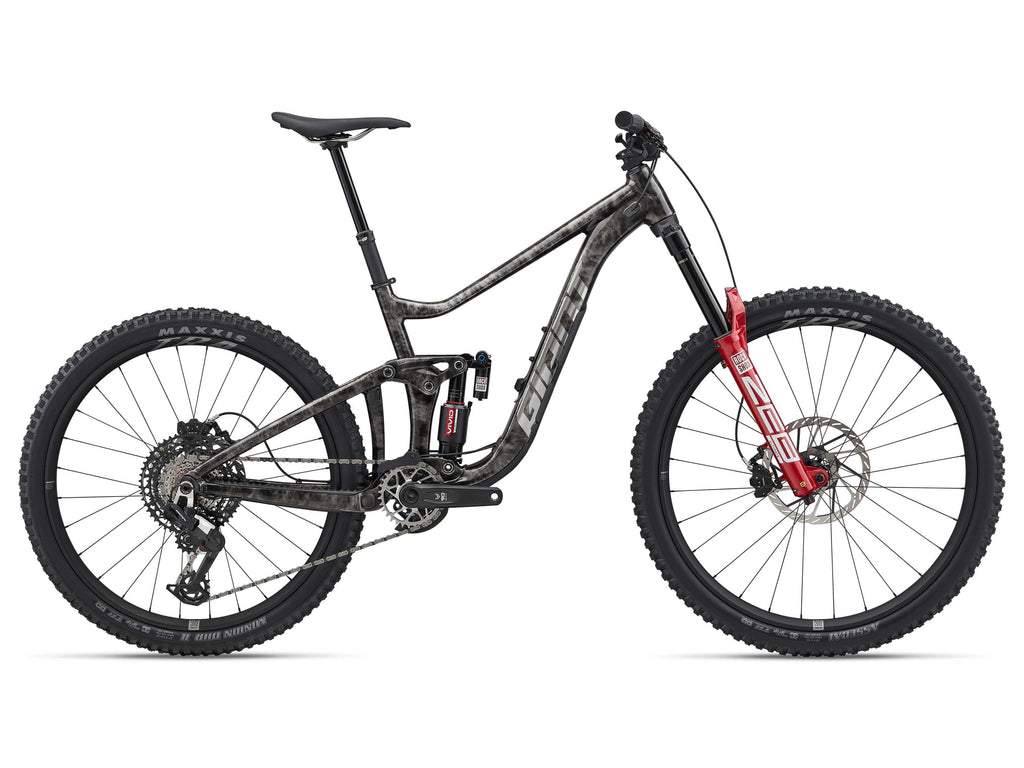

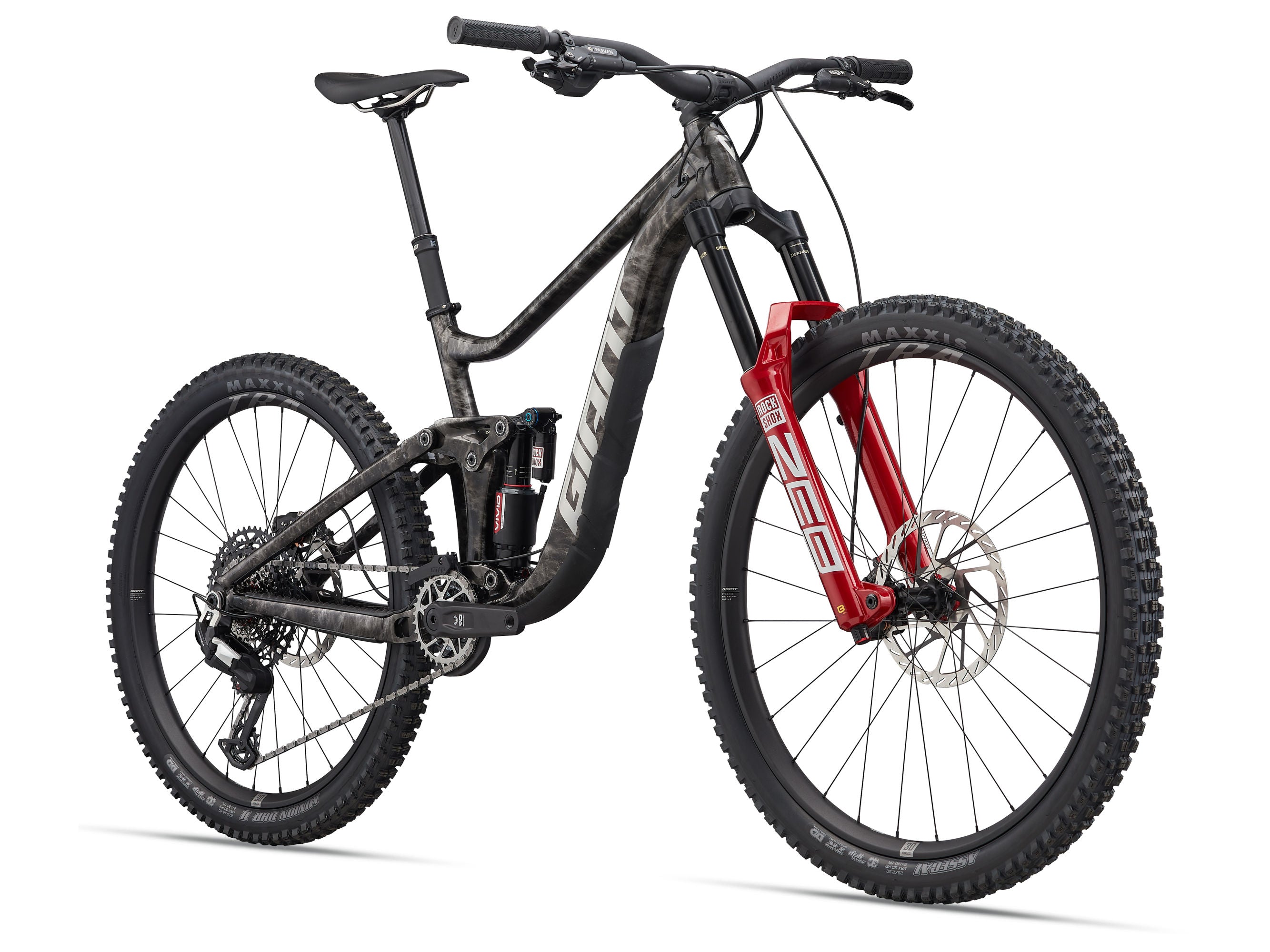

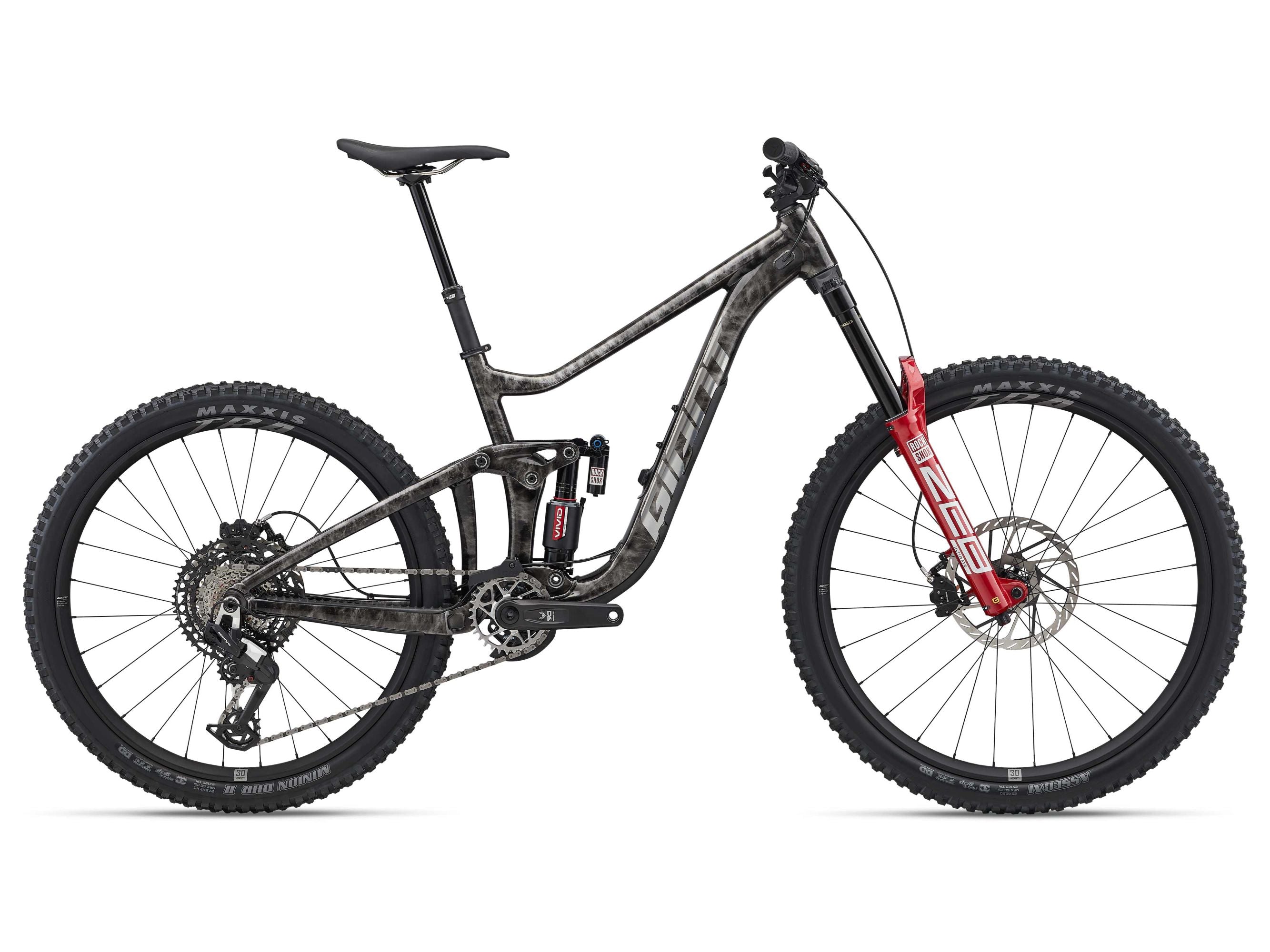

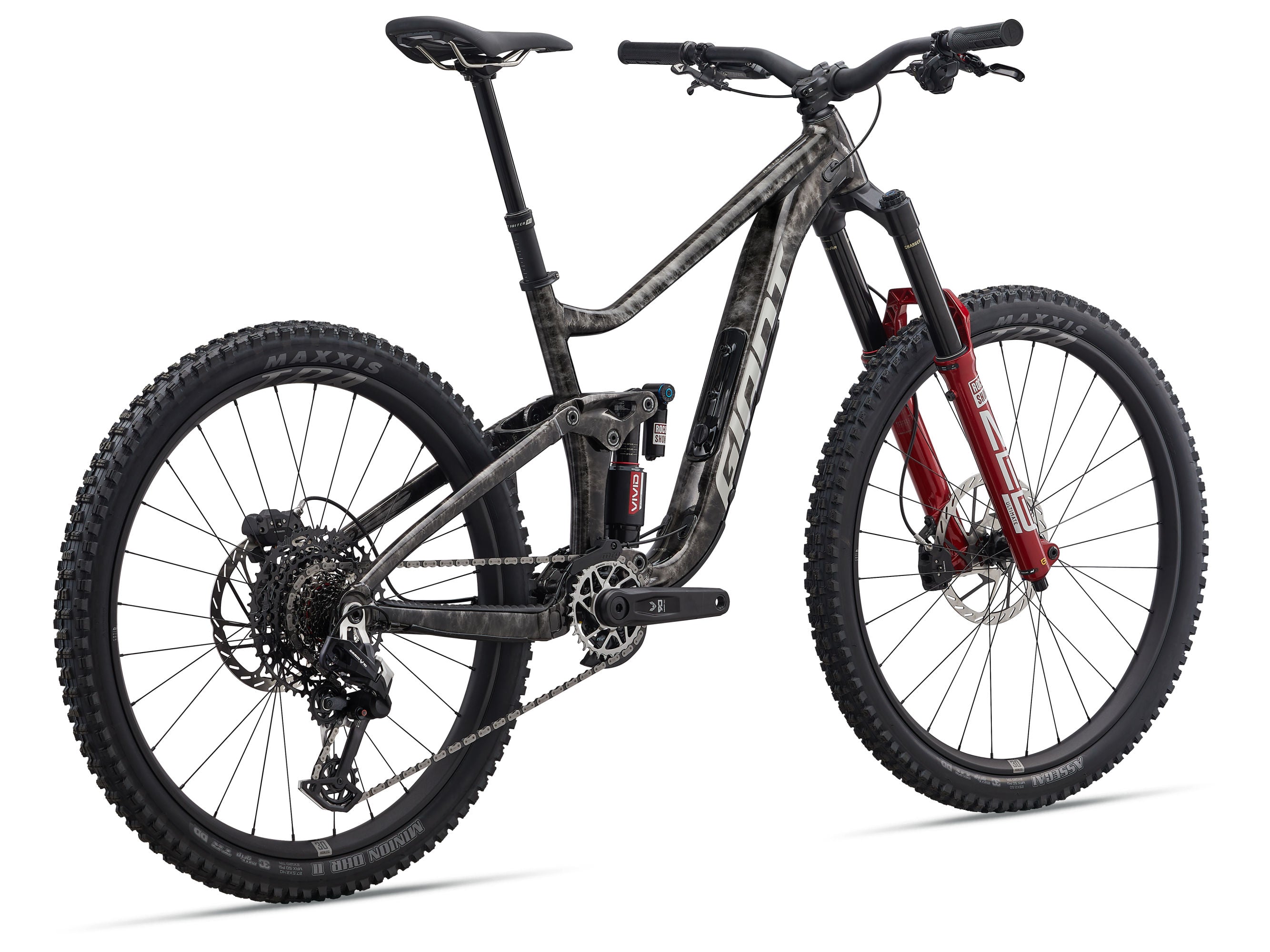

Big hits and all-out descents. This trail-crushing enduro machine features a unique paint treatment that makes each bike one of a kind. Its mixed wheel size, with a 29-inch front and 27.5-inch rear, blends stability and speed with agility that pops. The geometry is designed for a longer-travel 165mm rear suspension setup and a 180mm fork, giving you the upper hand on the on the rowdiest trails and bike park terrain.



Key Performance Factors



RACE-BRED SUSPENSION

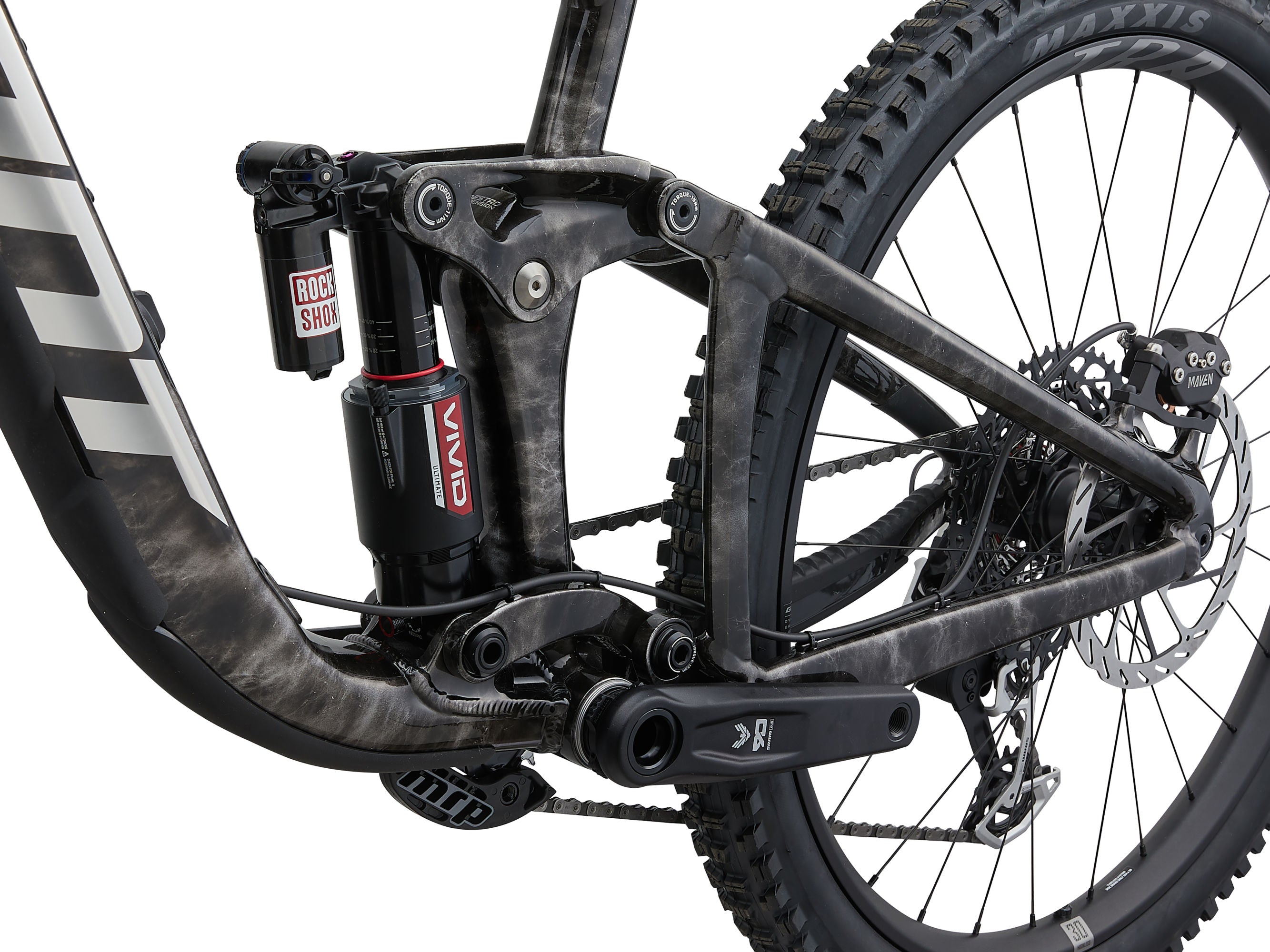

The Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 180mm travel fork. The trunnion mount rear shock has a longer stroke while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.

ADJUSTABLE ENDURO GEOMETRY

A flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 62.6 or 63-degree head angle and corresponding 77.4 or 77.8-degree seat tube angle, resulting in a 20 or 15mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.

MIXED WHEEL SIZE

A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

Highlights

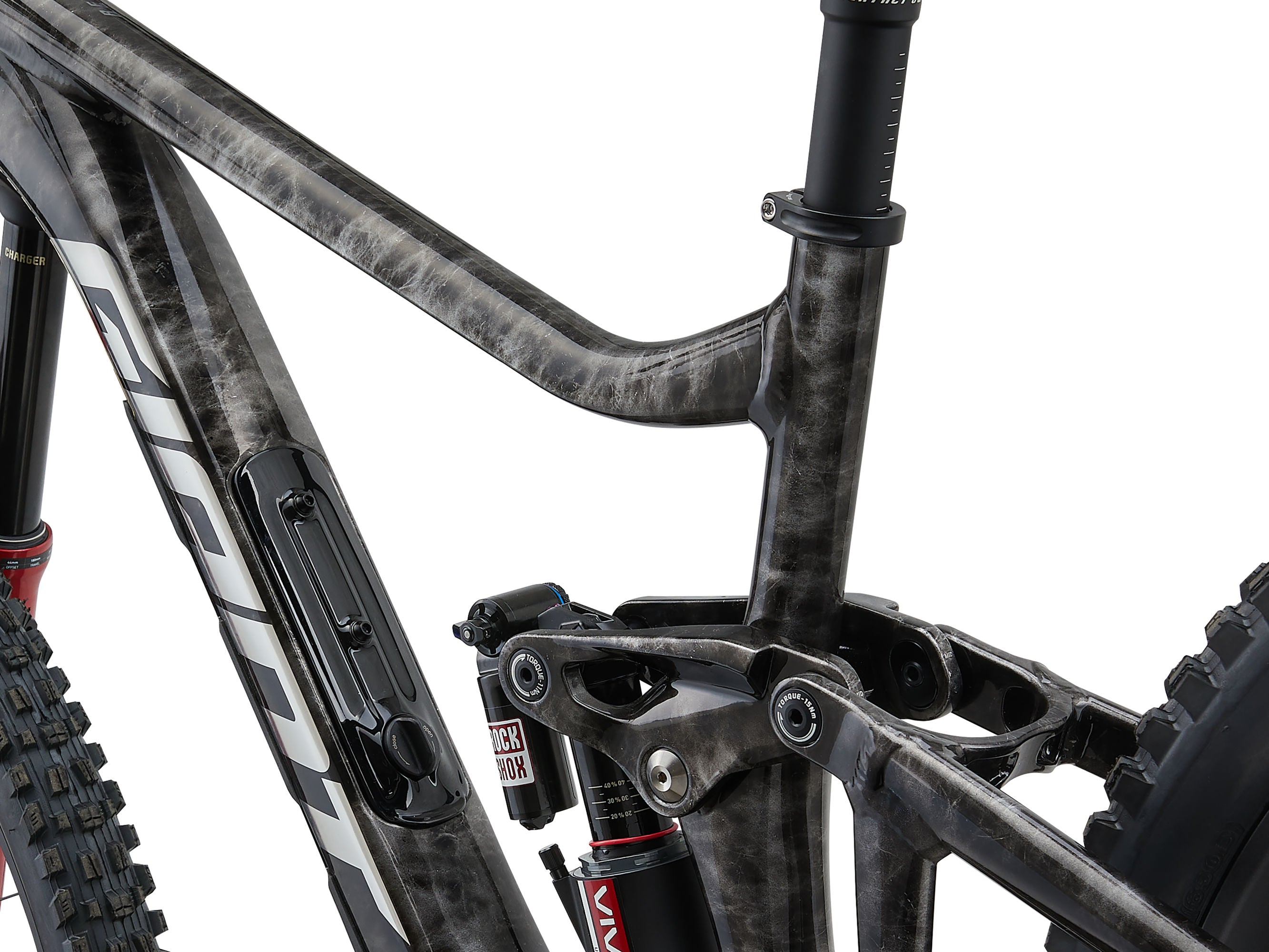

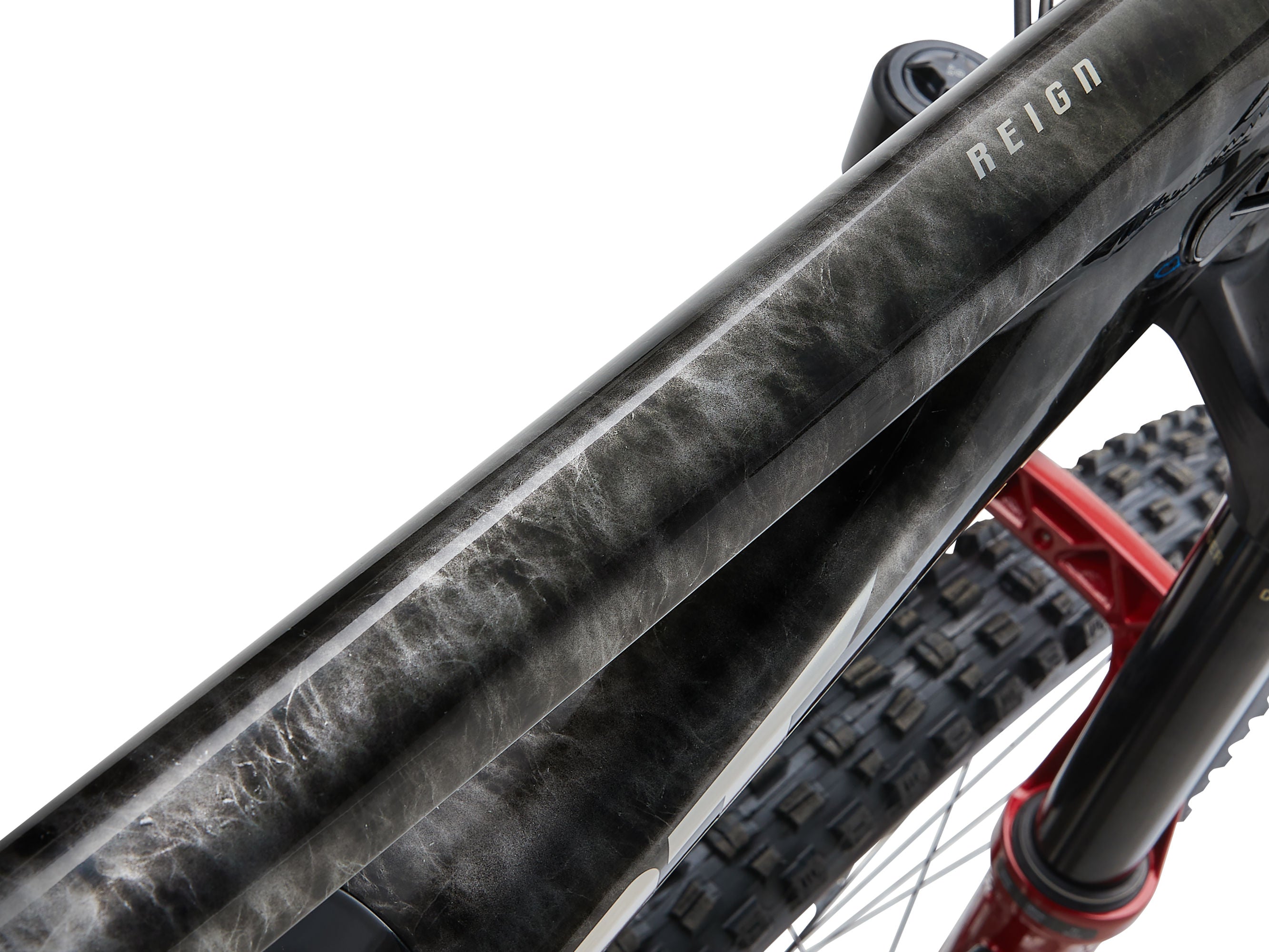

This gravity-focused enduro machine features a lightweight, stiff and super-strong ALUXX SL frameset with a unique paint treatment that makes each bike one of a kind. The geometry is updated to provide added suspension travel in the rear (165mm) along with a 180mm fork to take on the roughest trail conditions. You can adjust the geometry with a flip chip that lets you switch the head tube and seat tube angles, along with bottom bracket drop, to dial in the handling for your riding style and terrain. And a new integrated down tube storage feature provides convenient carrying capacity for on-trail essentials.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  M L XL
  MID | HIGH MID | HIGH MID | HIGH
A Seat Tube Length (mm) 425 450 475
A1 Seat Post Insertion Depth (mm) 383 308 333
B Seat Tube Angle 77.4° | 77.8° 76.4° | 76.8° 76.4° | 76.8°
C Top Tube Length (mm) 589 | 588 623 | 622 655 | 654
D Head Tube Length (mm) 105 105 120
E Head Tube Angle 62.6° | 63.0° 62.6° | 63.0° 62.6° | 63.0°
F Fork Rake (mm) 44 44 44
G Trail (mm) 147 | 145 147 | 145 147 | 144
H Wheelbase (mm) 1251 | 1250 1275 | 1274 1308 | 1307
I Chain Stay Length (mm) 443 | 442 443 | 442 443 | 442
J Bottom Bracket Drop (mm) 20 | 15 20 | 15 21 | 15
K Stack (mm) 639 | 636 648 | 645 653 | 650
L Reach (mm) 446 | 450 466 | 470 497 | 501
M Stand Over Height (mm) 734 | 739 750 | 755 744 | 749
O Stem Length (mm) 40 40 40
P Crank Length (mm) 165 165 165
Q Wheel Size 29" [F] 27.5" [R] 29" [F] 27.5" [R] 29" [F] 27.5" [R]
Specs
  • Sizes
    M, L, XL
  • Colours
    Black Lightning/Chrome
  • Frame
    ALUXX SL-grade aluminium front and rear triangles, 165mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated down tube storage
  • Fork

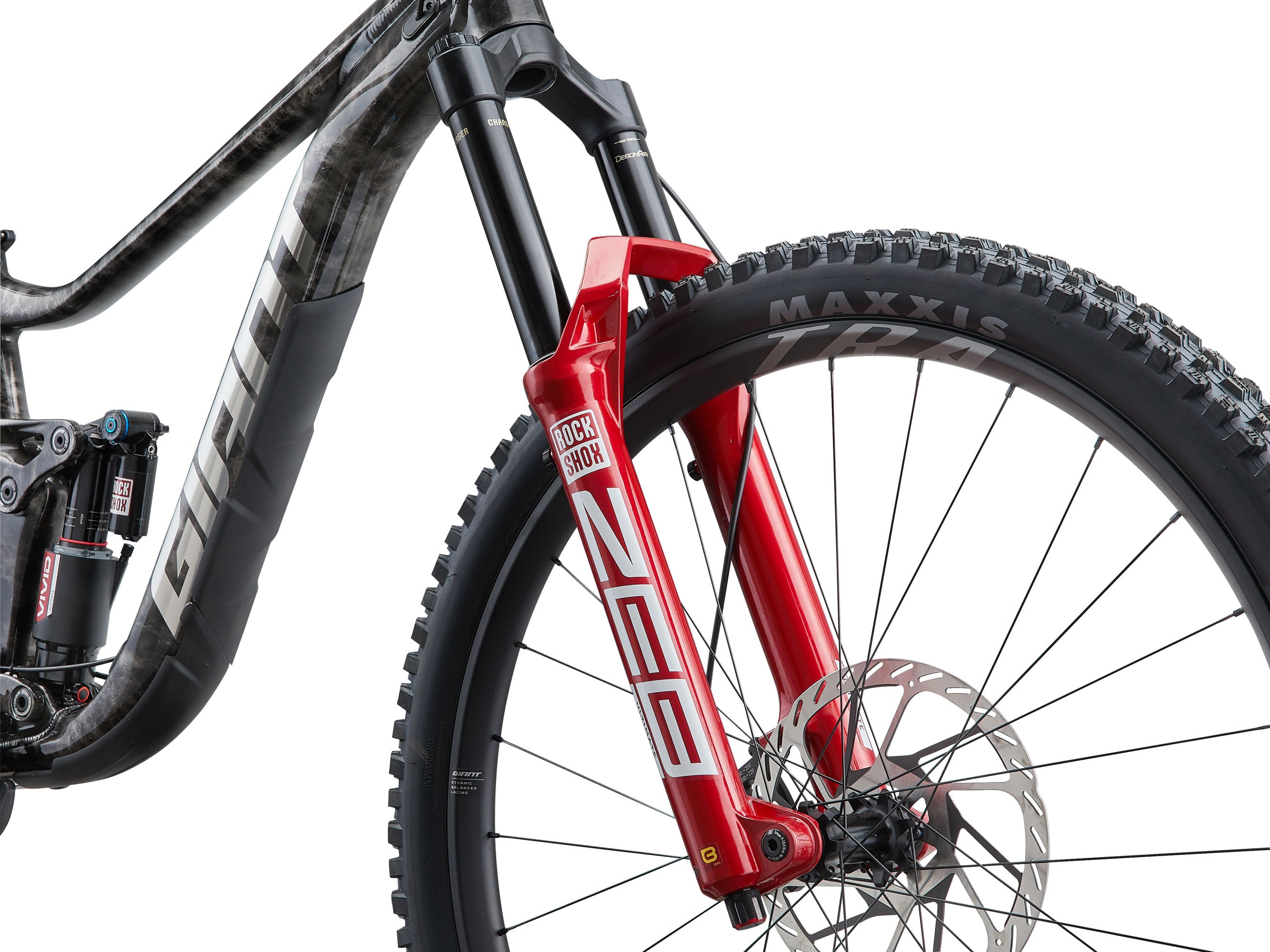

    RockShox Zeb Ultimate, Charger 3.1 RC2 damper, 180mm, 15x110, Maxle Stealth, Debonair
  • Shock

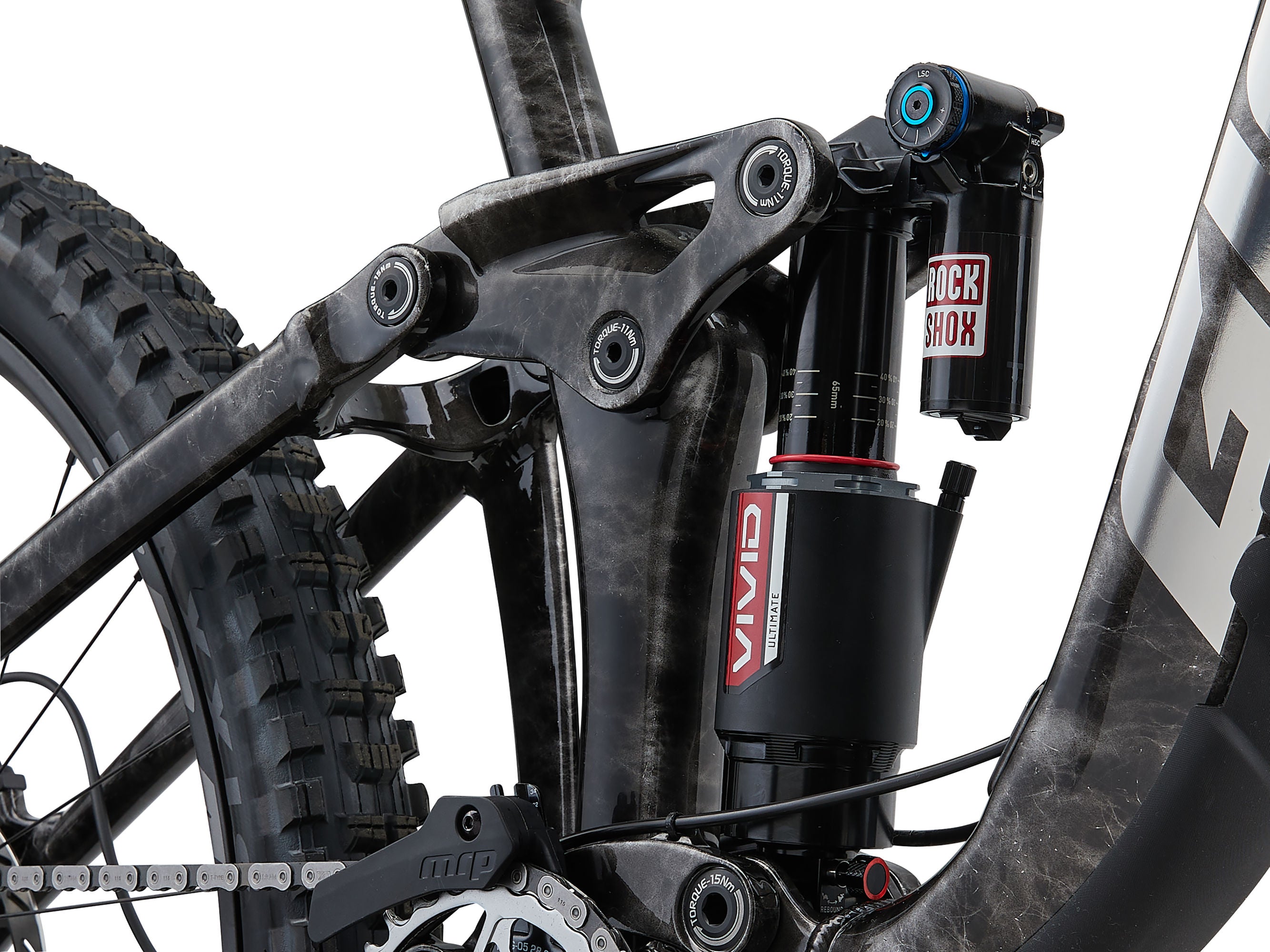

    RockShox Vivid Ultimate, RCT2, adjustable hydraulic bottom out, trunnion mount, 205/65 S:425#, M:425#, L:450#, XL: 475#
  • Handlebar

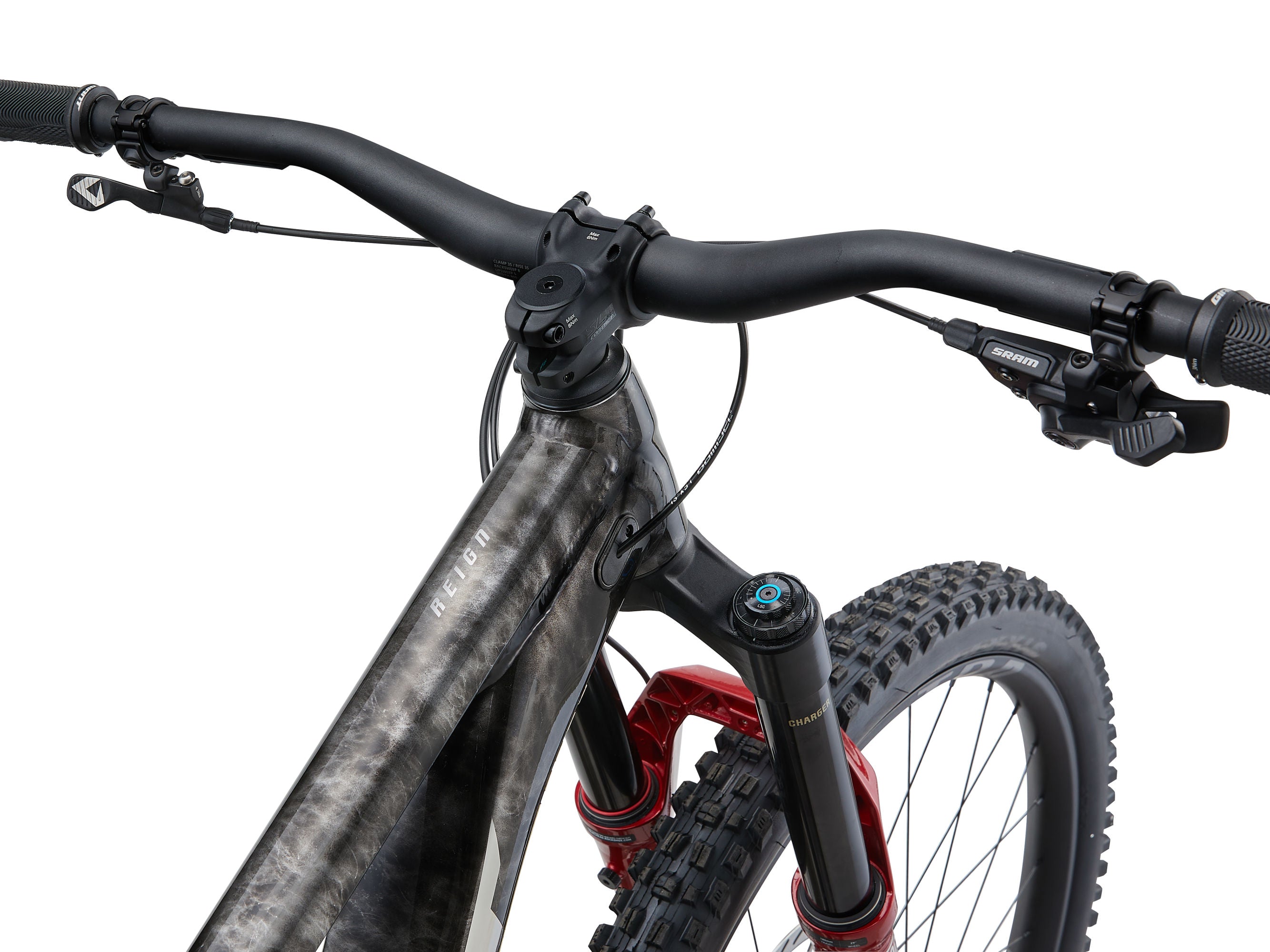

    Giant Contact TR35, 35mm rise
  • Grips
    Giant Tactal Pro Single
  • Stem
    Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
  • Seatpost
    Contact Switch AT dropper, remote M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
  • Saddle
    Giant Romero
  • Pedals
    N/A
  • Shifters
    SRAM Eagle 90, mechanical, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur

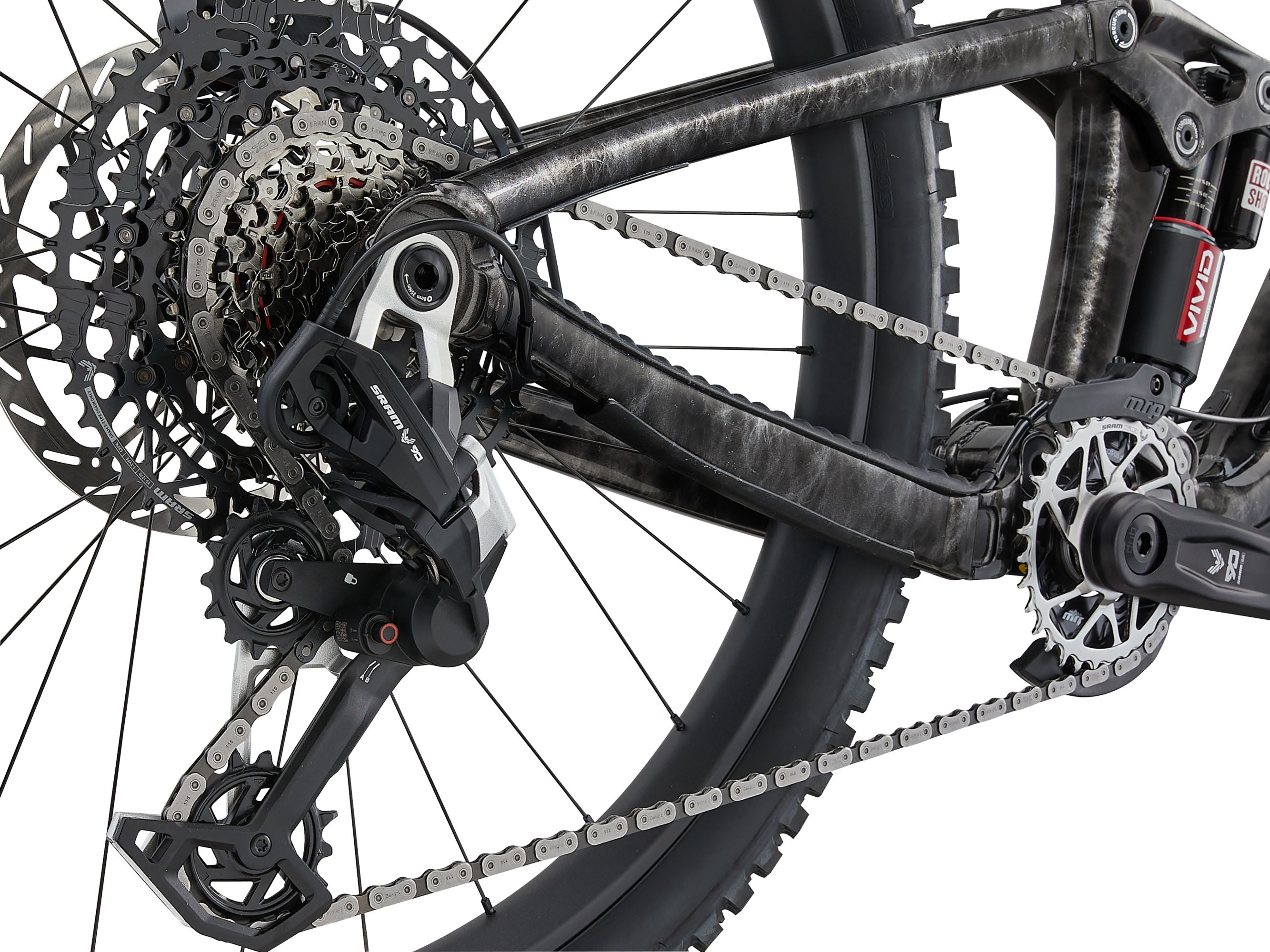

    SRAM Eagle 90 mechanical transmission
  • Brakes

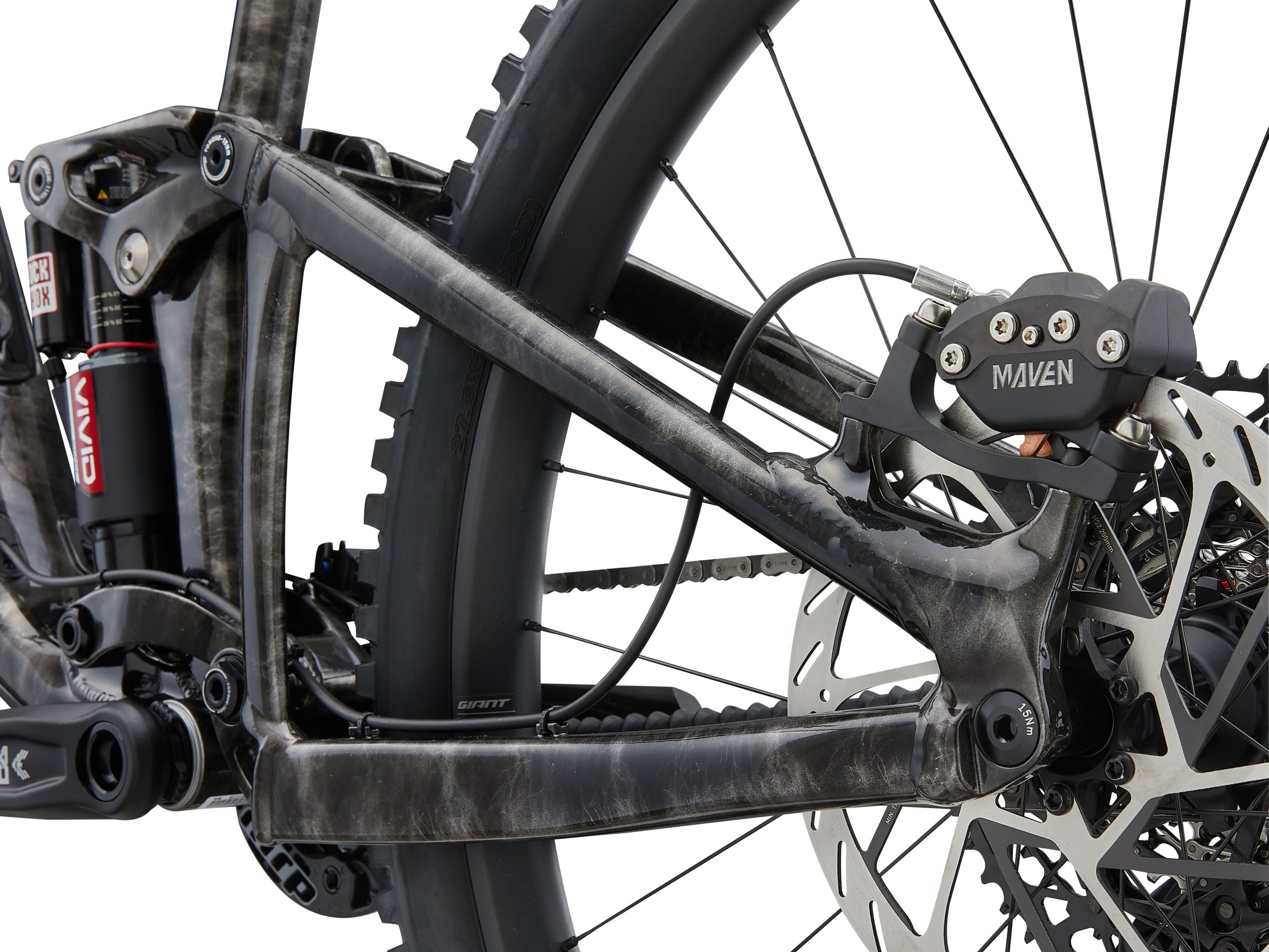

    SRAM Maven, hydraulic, SRAM HS2 rotors [F]220mm, [R]200mm
  • Brake Levers
    SRAM Maven
  • Cassette
    SRAM XS 1270, 10x52
  • Chain
    SRAM 70
  • Crankset
    SRAM 90, 32t, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant TRA WheelSystem, 6069 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
  • Hubs
    [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 72 POE (Points of Engagement), 6-bolt, MicroSpline driver body
  • Spokes
    Sapim, 28, straight pull, DBL Technology
  • Tyres
    [F] Maxxis Assegai 29x2.5 WT, 3C MaxxGrip, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxGrip, DD, TR tubeless
  • Extras
    Tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
