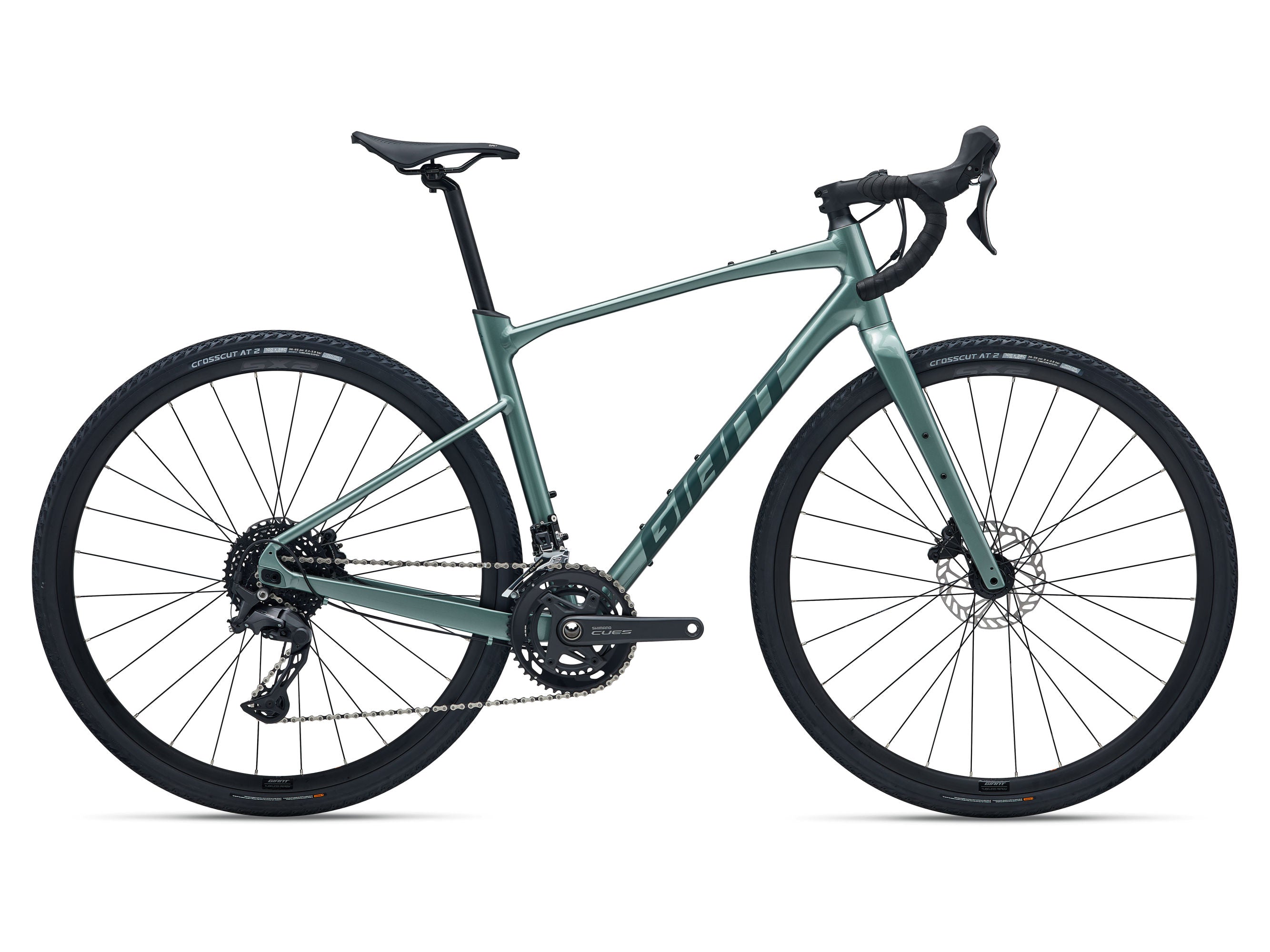

Revolt 1
  • Revolt 1
Revolt 1

/ GIANT

Revolt 1

SKU: 9080014123
$2,499.00
$2,499.00

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.
Size
ColourAlpine Green
Out of stock

Specifications

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.



Key Performance Factors



Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  XS S M ML L XL
  LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1029 | 1039 1025 | 1035 1030 | 1040 1035 | 1045 1045 | 1055 1061 | 1071
I Chain Stay Length (mm) 430 | 440 430 | 440 430 | 440 430 | 440 430 | 440 430 | 440
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 717 | 724 734 | 741 752 | 759 769 | 776 786 | 793 801 | 810
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C |
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Alpine Green
  • Frame
    ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Grips
    Cork tape with gel
  • Stem
    Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant D-Fuse, alloy, 14mm offset
  • Saddle
    Giant Grit
  • Pedals
    N/A
  • Shifters
    Shimano CUES U6030, 2x10
  • Front Derailleur
    Shimano CUES U6030
  • Rear Derailleur
    Shimano Cues U6020, Shadow+
  • Brakes
    Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Shimano CUES U6030 hydraulic
  • Cassette
    Shimano CS-LG300, 11x39
  • Chain
    KMC X11
  • Crankset
    Shimano Cues U6030-2, 32-46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    Shimano, threaded
  • Rims
    Giant S-X2 Disc wheelset, alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Stainless
  • Tyres
    Giant CrossCut AT 2, 700x38c, tubeless
  • Extras
    Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
  • Max Tyre Clearance
    53mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
