ROCKYMOUNTS GUIDERAIL 2"

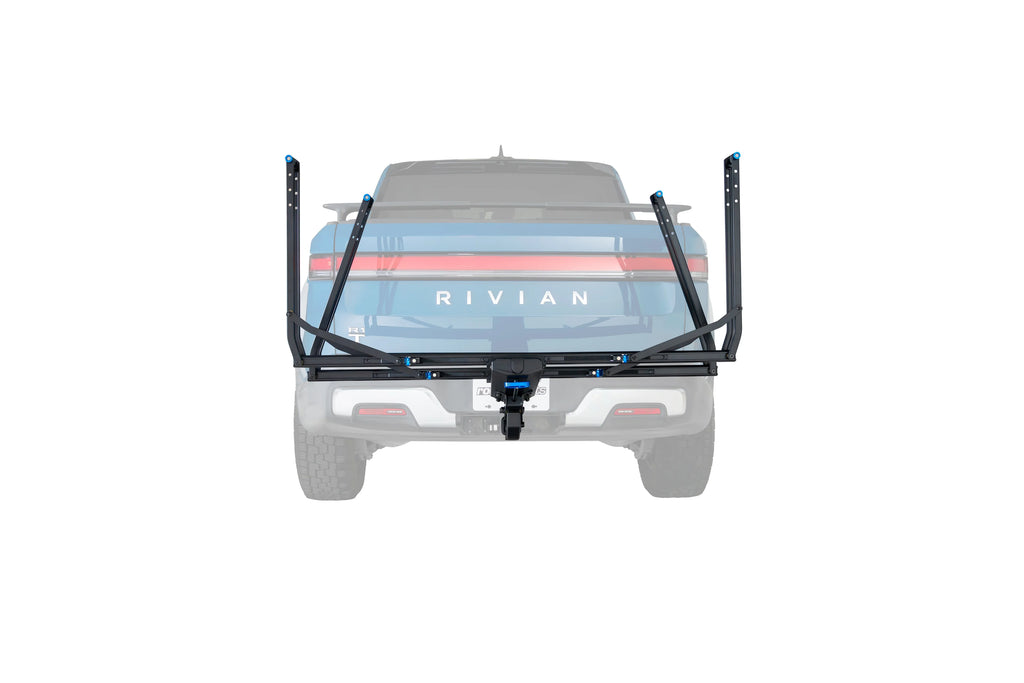

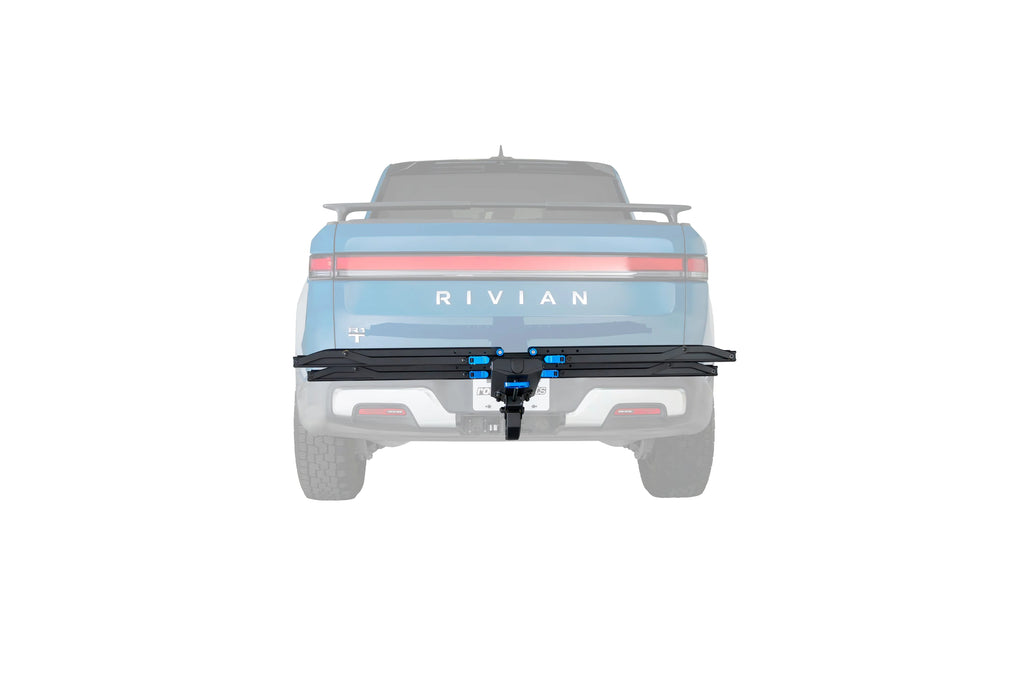

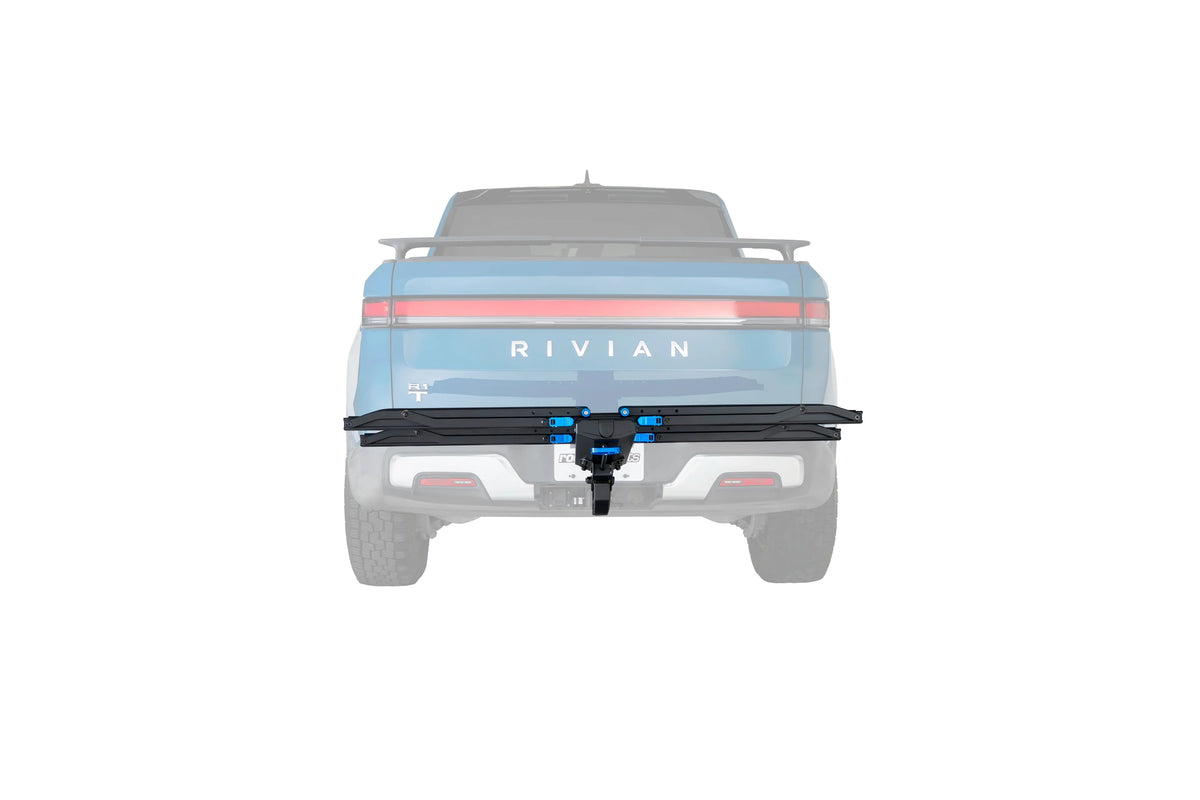

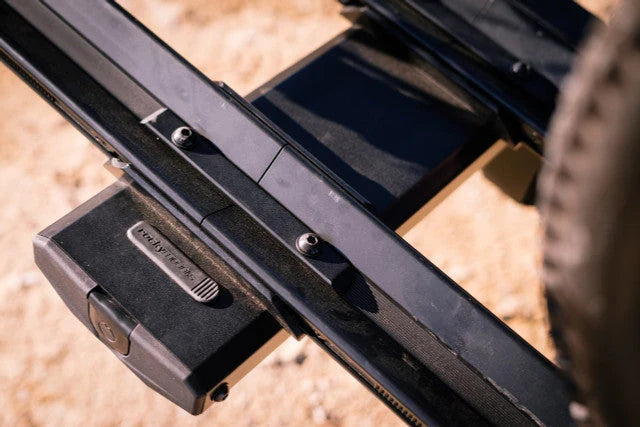

The GuideRail reimagines platform hitch rack design by using dual load arms that eliminate all frame and fork contact. This setup allows asymmetric bike loading to prevent handlebar interference and provides a streamlined appearance that complements most vehicles. Built with minimal plastic and maximum strength, the GuideRail matches the capacity and durability of the MonoRail family. It securely carries most E-bikes and comes equipped with a robust security chain for peace of mind on the road.

Features
- Dual load arms eliminate frame and fork contact
- Bikes can be loaded asymmetrically to avoid handlebar interference

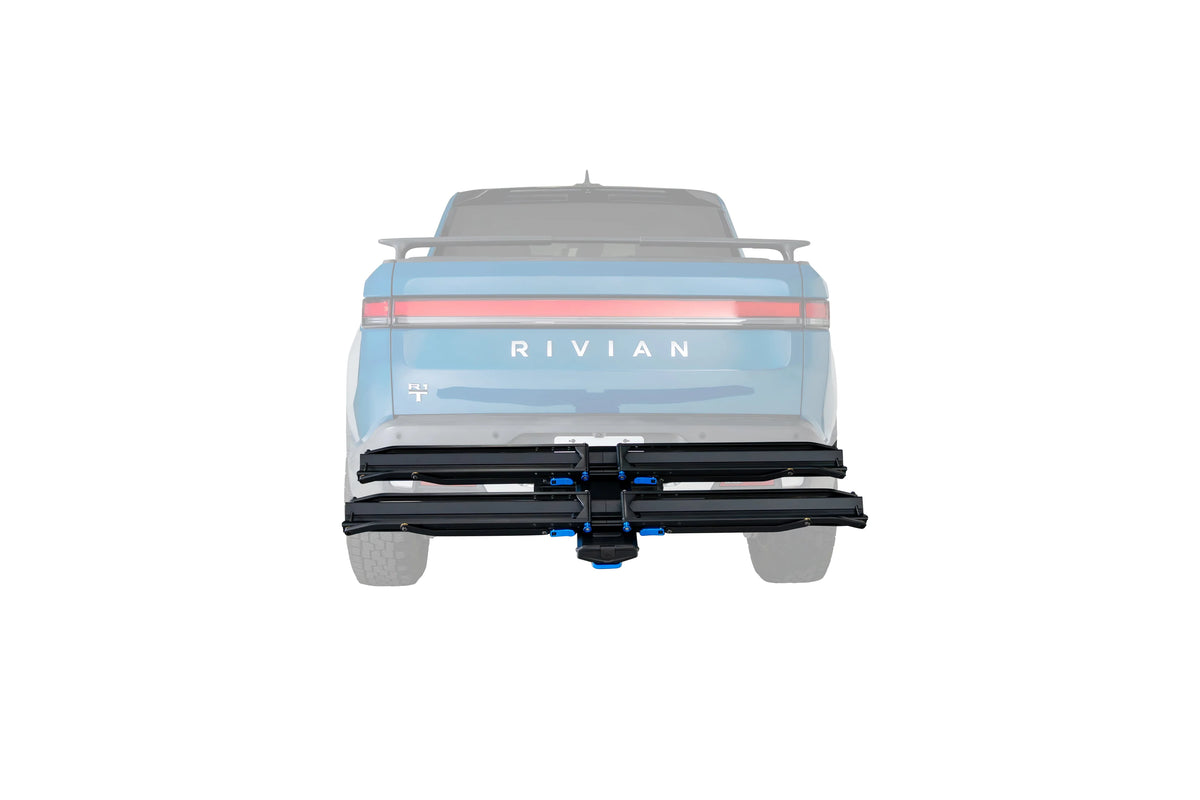

- Expandable to 3 bikes with Add-On (2 inch version only, up to 45 lbs per tray)

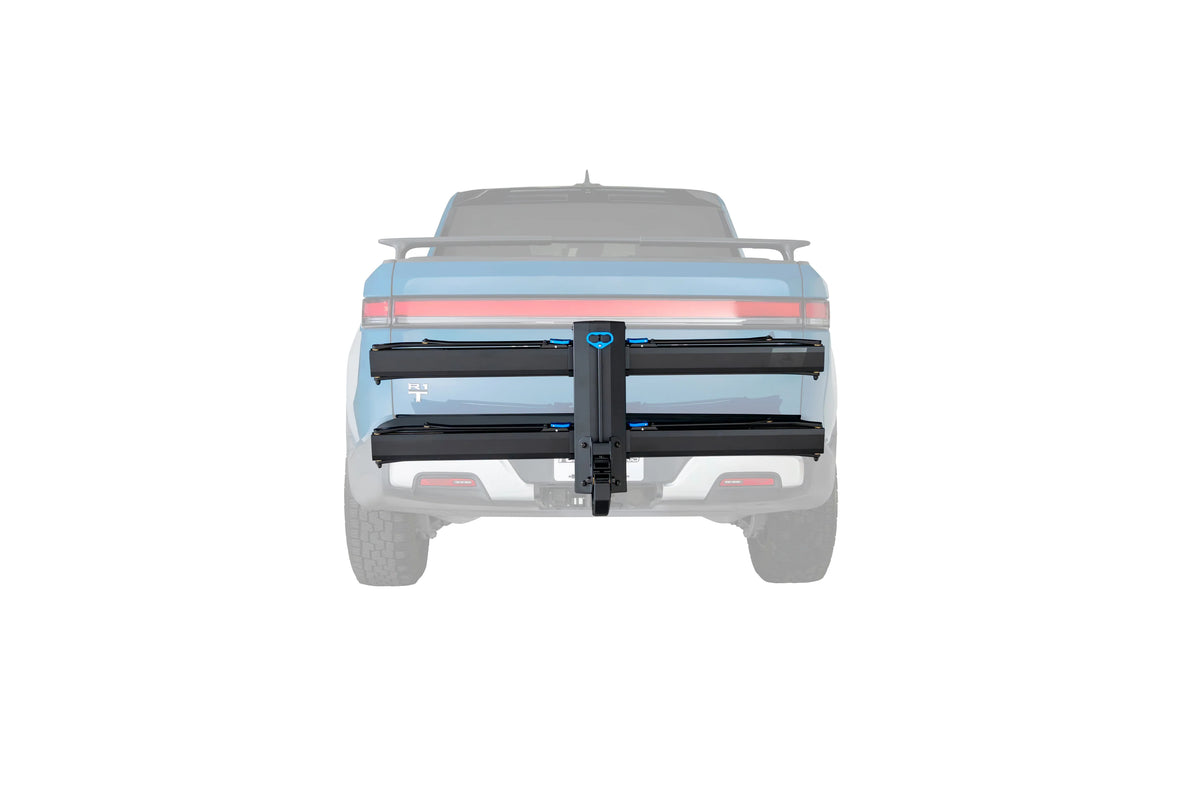

- Folds flat against the vehicle when not in use
- Tilts down 30 degrees for hatch access
- Available for 1.25 inch or 2 inch Class II or higher hitch receivers
- Works with both 1.25 inch and 2 inch hitches when using the Adapter Sleeve (sold separately)
- Includes premium 3 axis anti wobble hitch system
- Not compatible with bikes equipped with fenders

Specs
- Bike capacity: 2 bikes (up to 60 lbs each, 120 lbs total)
- Expandable: Yes, to 3 bikes with Add-On (2 inch hitch version only)
- Tire width: Fits 19 mm to 3.0 inch wide tires
- Wheel diameter: Compatible with 20 inch to 29 inch wheels
- Wheelbase range: Supports bikes with 36 inch to 55 inch wheelbases
- Rack weight: 49 lbs (shipping weight: 61 lbs)
- Fit note: For cargo vans, a fit check is recommended. Depending on hitch placement and handlebar width, an 8 inch hitch extension may be required
