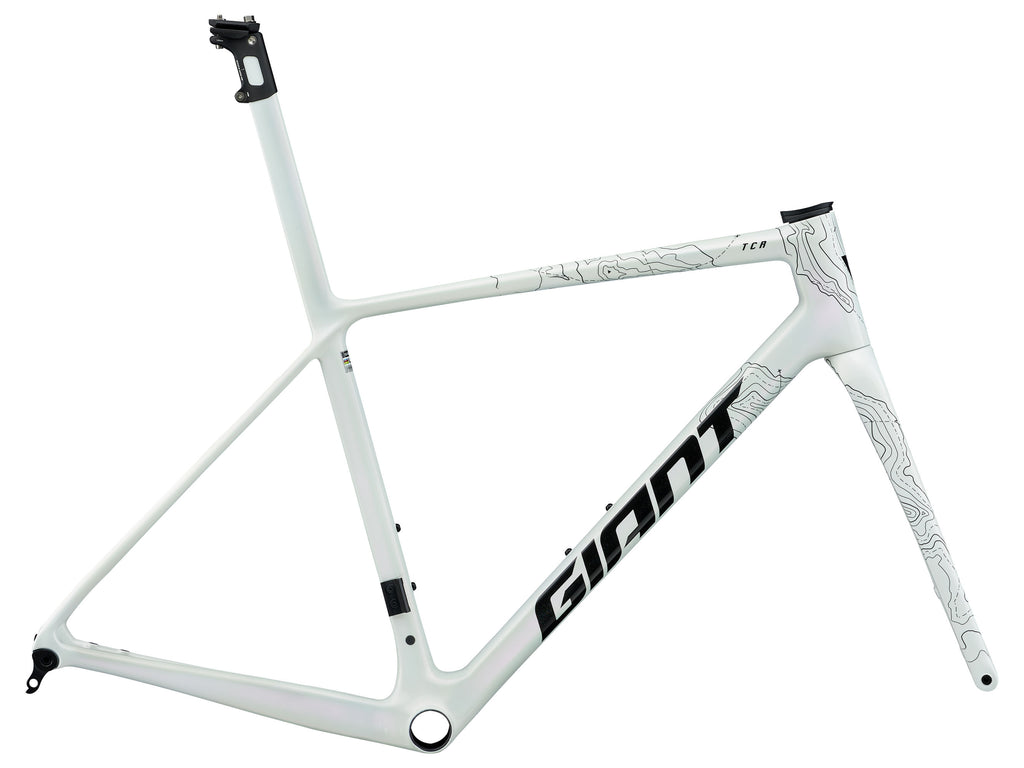

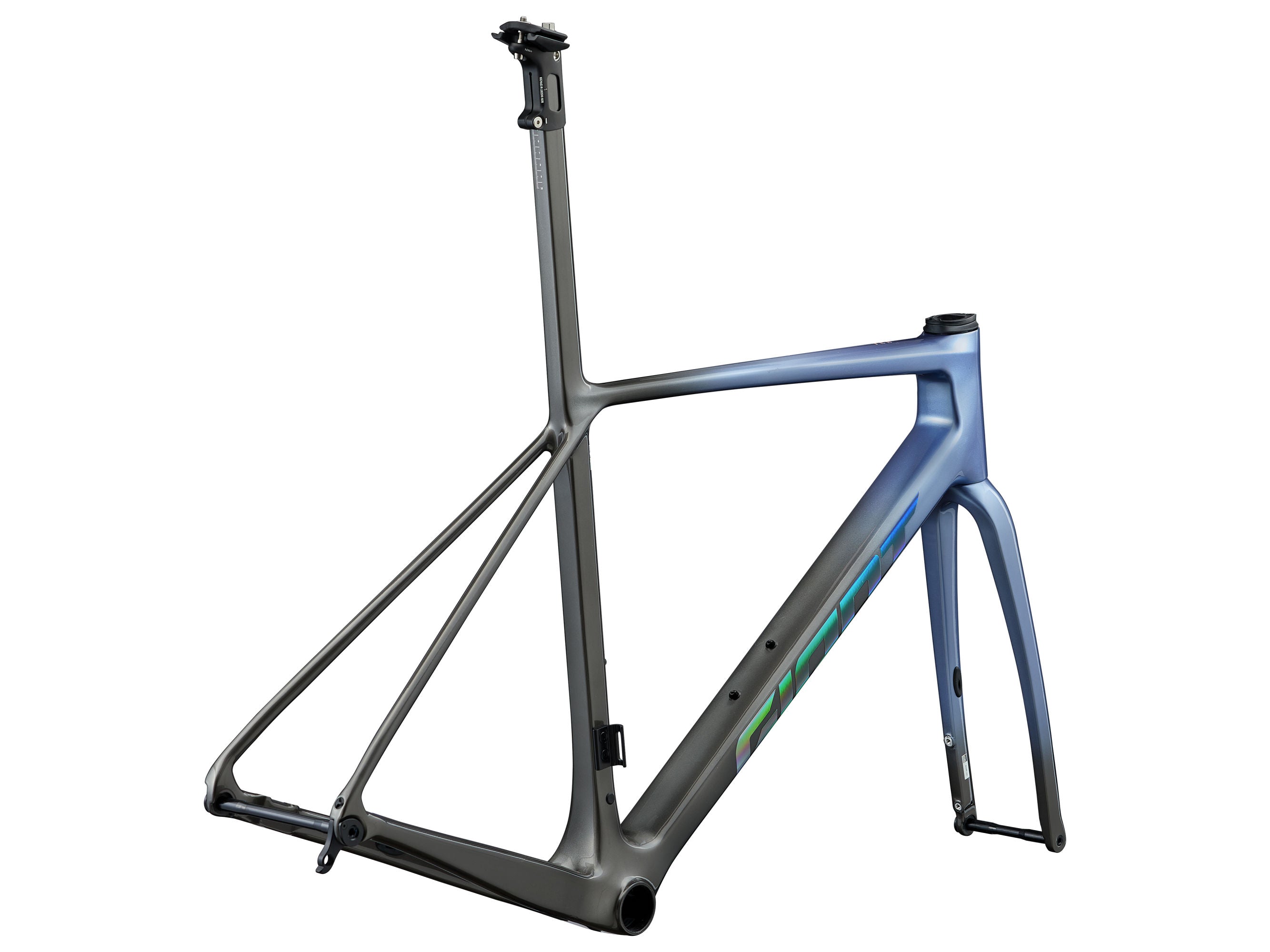

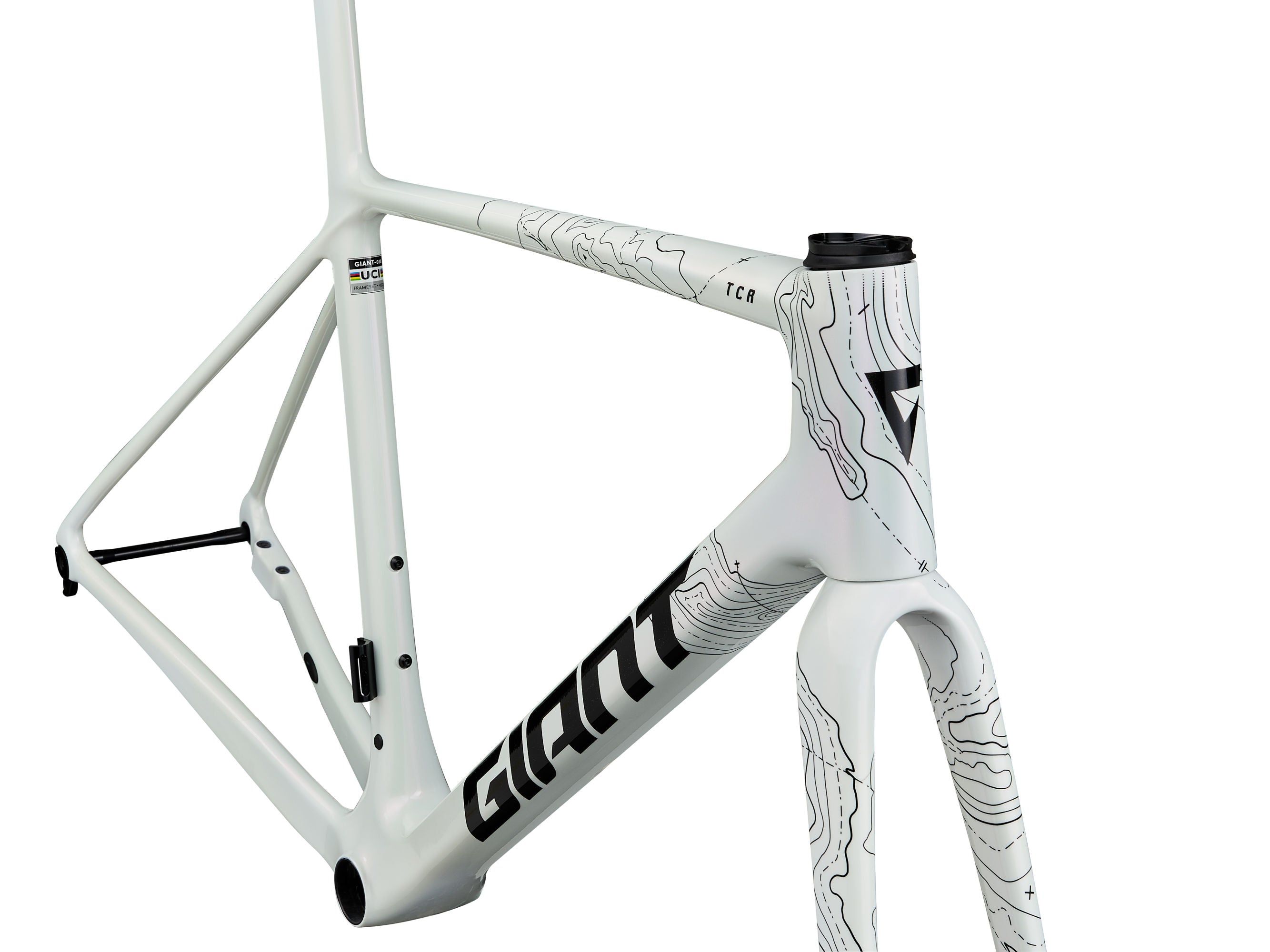

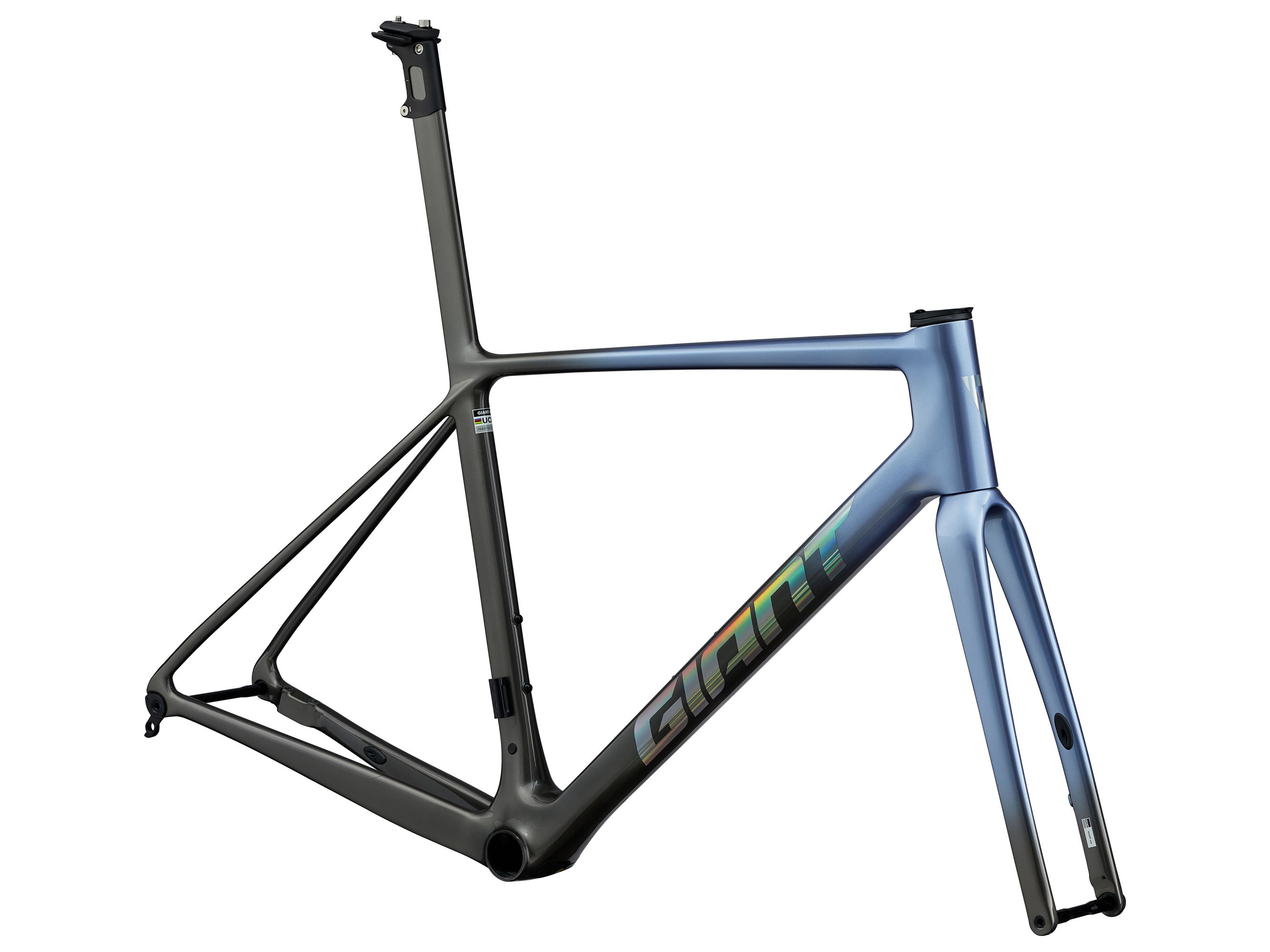

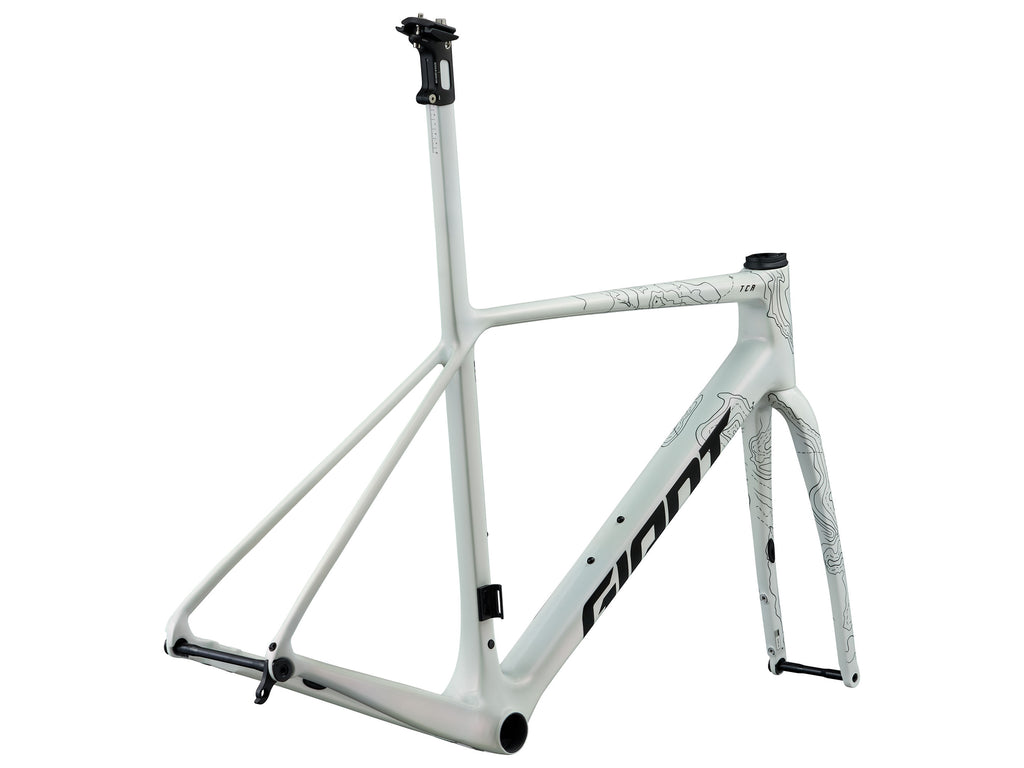

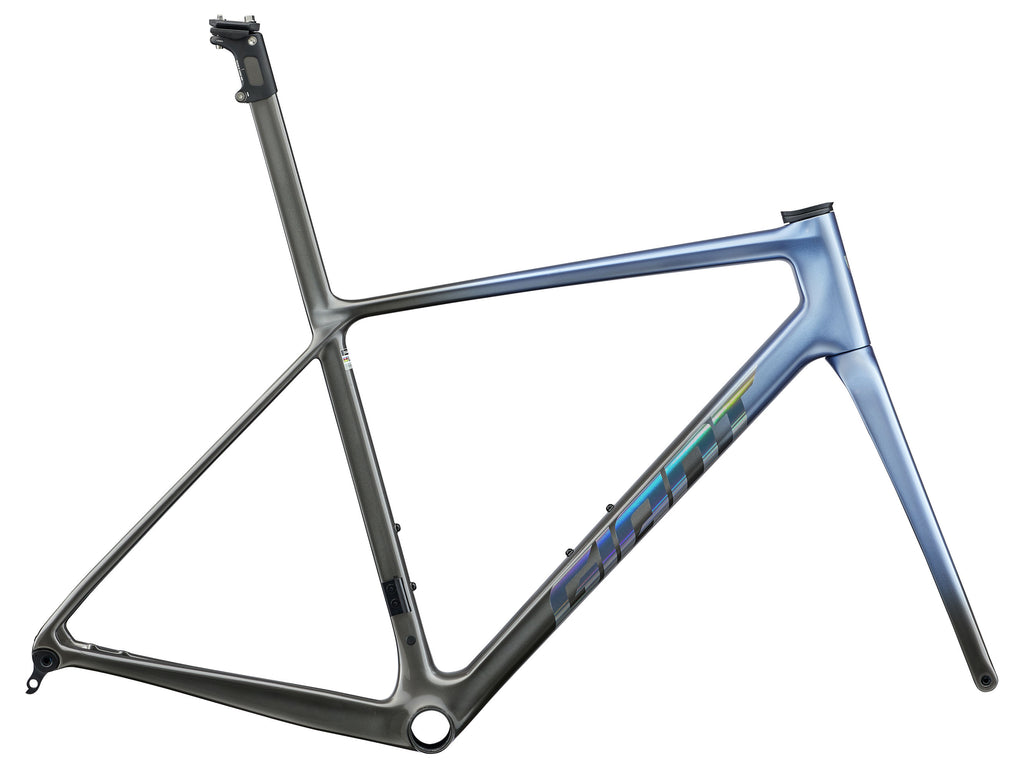

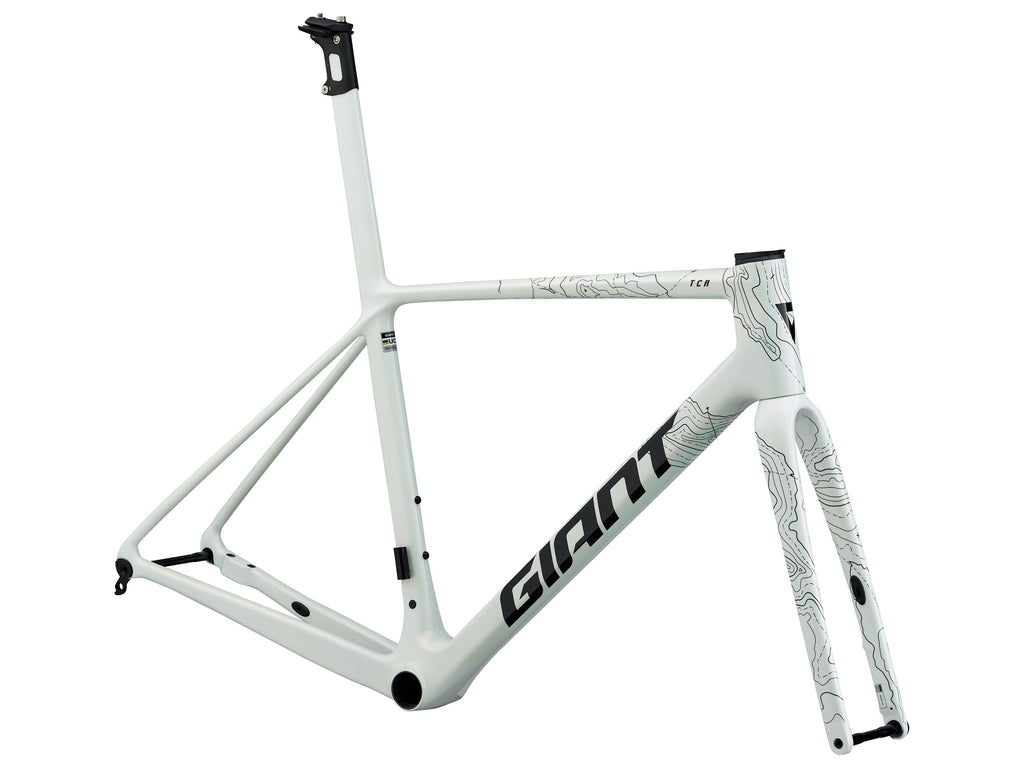

TCR Advanced SL-FF

/ GIANT

TCR Advanced SL-FF

SKU: 1913008104
$5,599.00
Sale price  $5,599.00 Regular price

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.

Size
Colour
Out of stock

Specifications

From hors categorie climbs to rollers and flats, this WorldTour level race bike is the pro’s choice for all-rounder performance. The all-new flagship TCR uses system integration and innovative construction methods to deliver a clear advantage on the road.



Key Performance Factors



SYSTEM OPTIMISATION

The frame, fork and integrated seatpost are engineered, developed and tested to perform as a system. The fork features a D-shaped steerer tube with corresponding spacers that, in addition to improving aerodynamics, also allows the cables to be internally routed through the handlebars, stem and frame/fork for a cleaner profile. And the signature ISP saves 40g while also adding road smoothing compliance and further improving its aero performance.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedalling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.

MADE FASTER

This pro-level frameset is designed for competitive road riders who obsess over performance. With a special colorway inspired by the colors of Team Jayco AlUla, it’s a limited-edition frameset with a proven track record for grand tour pros and everyday riders alike. Its legendary ride quality, system integration and innovative construction methods make it more efficient than ever. The down tube is redesigned over the previous generation for improved aerodynamics. And the integrated seatpost reduces weight, improves aero performance, and adds road-smoothing compliance.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  S M ML L XL
A Seat Tube Length (mm) 710 740 770 800 830
B Seat Tube Angle 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 535 550 565 580 600
D Head Tube Length (mm) 130 145 165 185 200
E Head Tube Angle 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45
G Trail (mm) 64 59.2 59.2 59.2 59.2
H Wheelbase (mm) 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405
J Bottom Bracket Drop (mm) 70 70 67 67 67
K Stack (mm) 528 545 562 581 596
L Reach (mm) 383 388 393 402 412
M Stand Over Height (mm) 734 752 768 786 803
O Stem Length (mm) 90 100 110 110 120
P Crank Length (mm) 165 170 170 172.5 172.5
Specs
  • Sizes
    S, M, M/L, L, XL
  • Colours

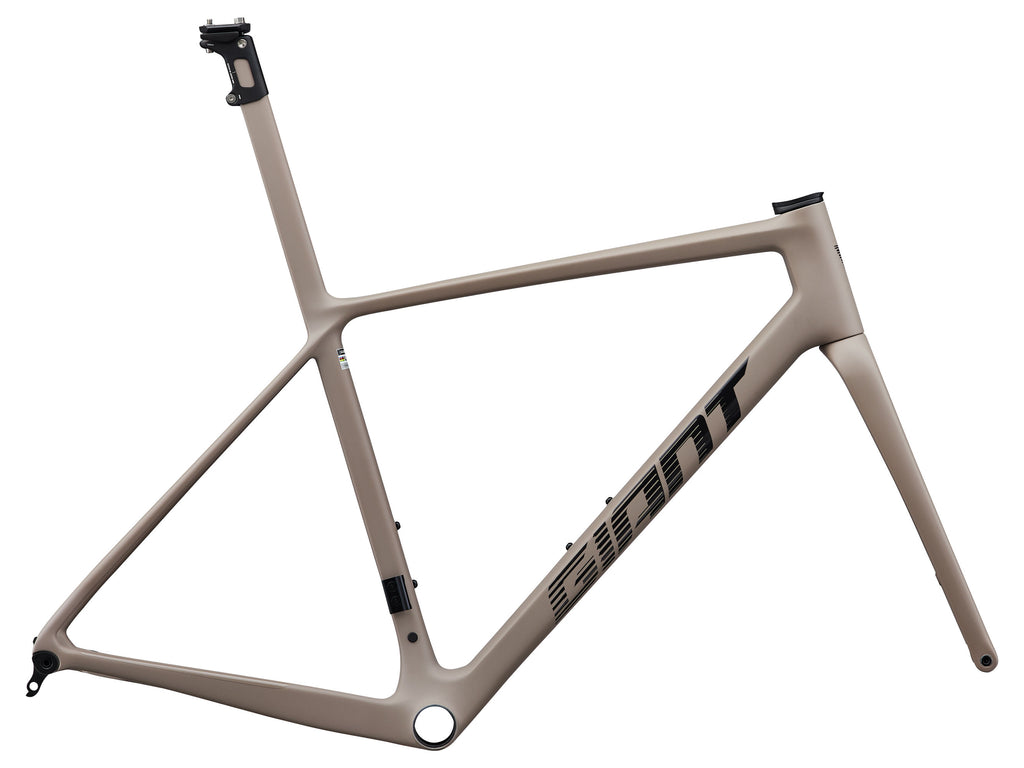

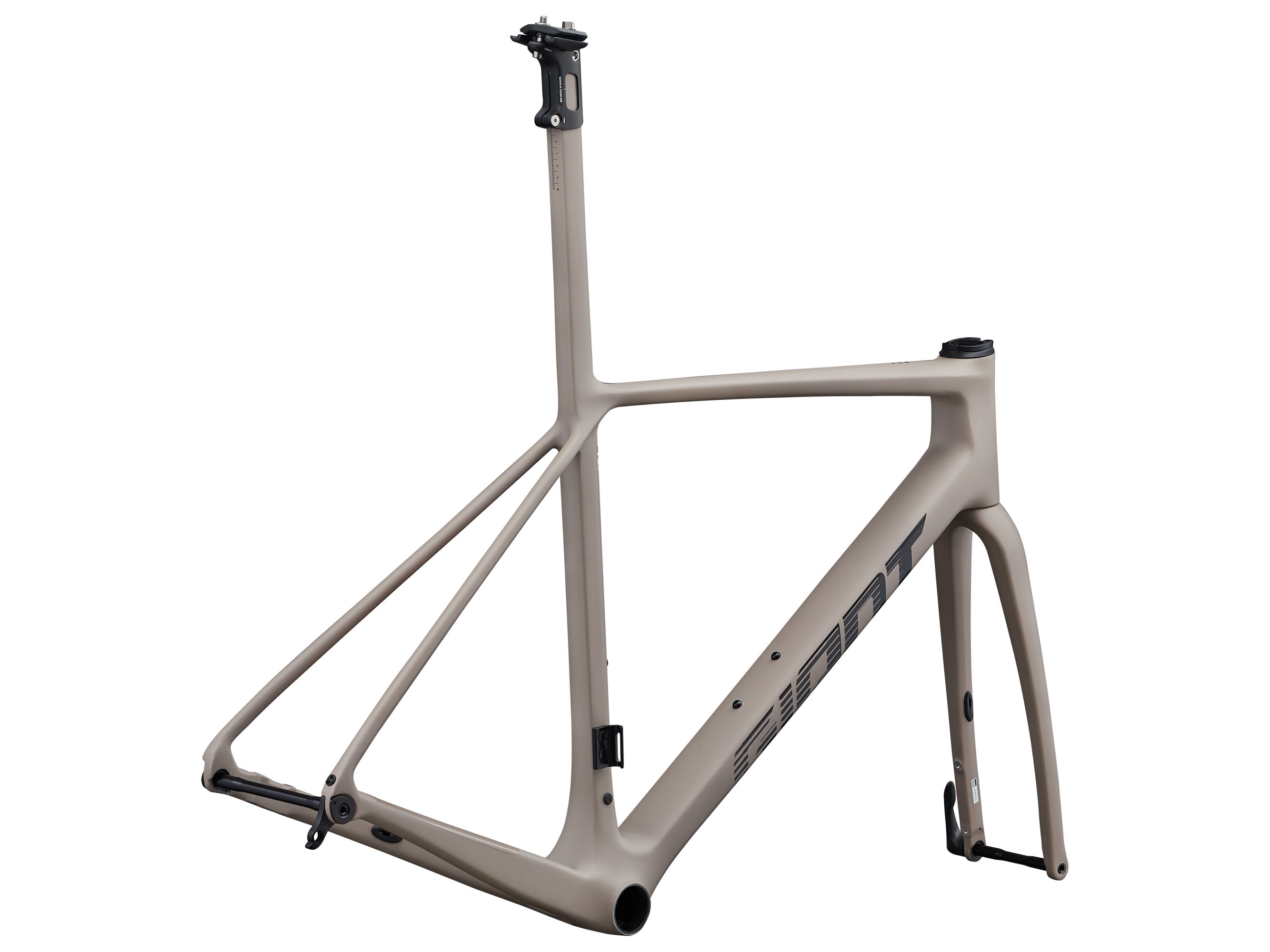

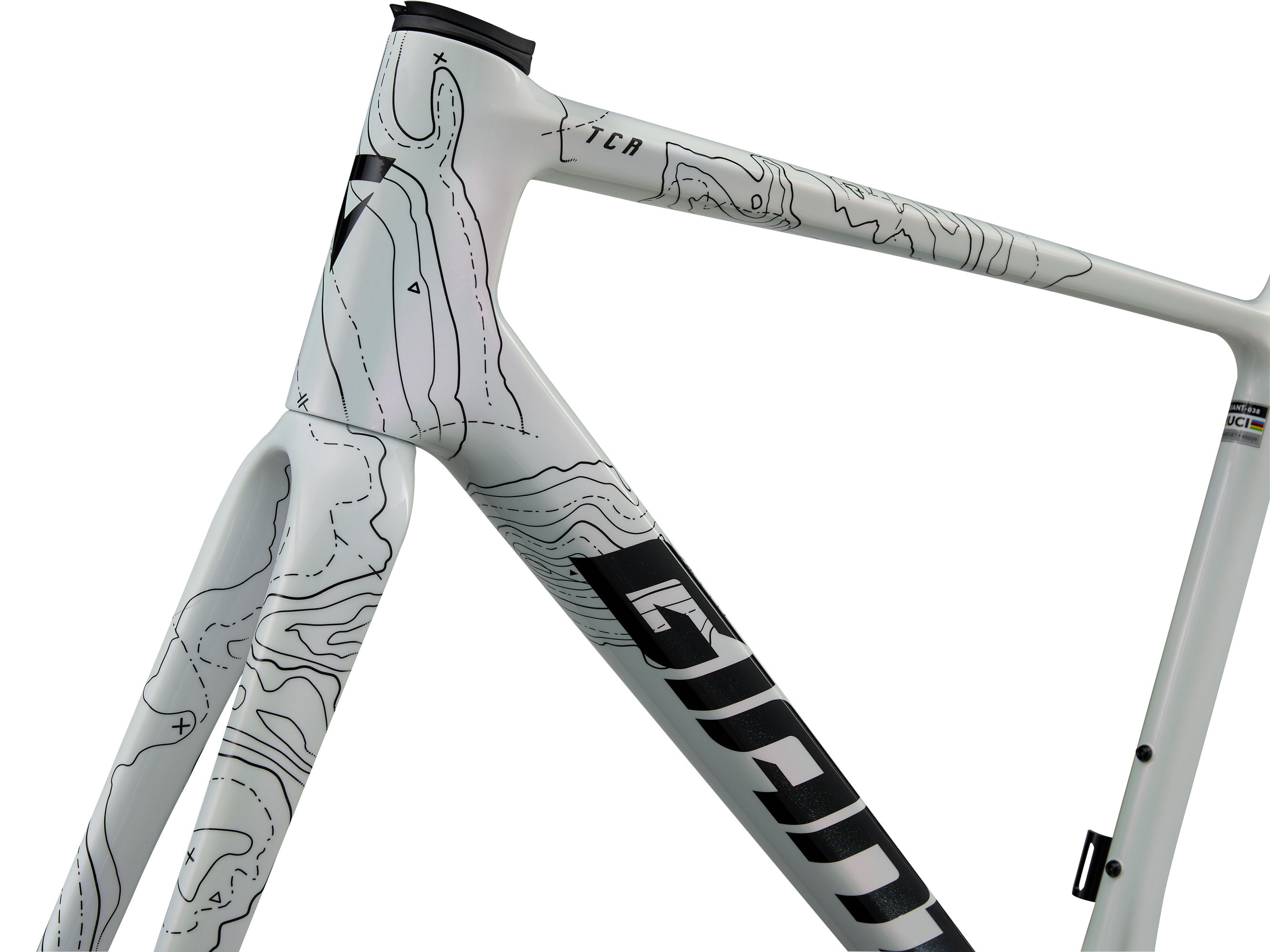

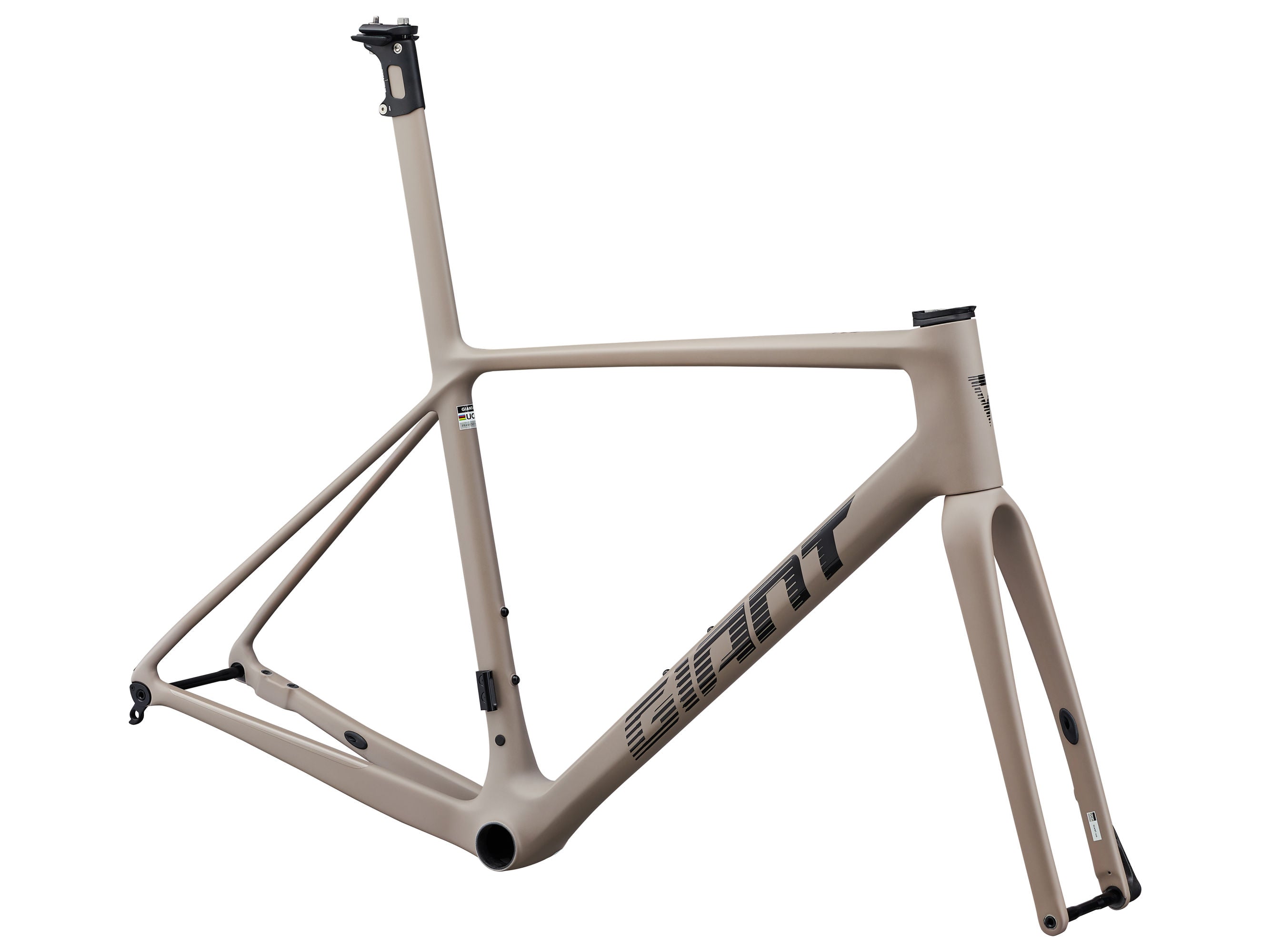

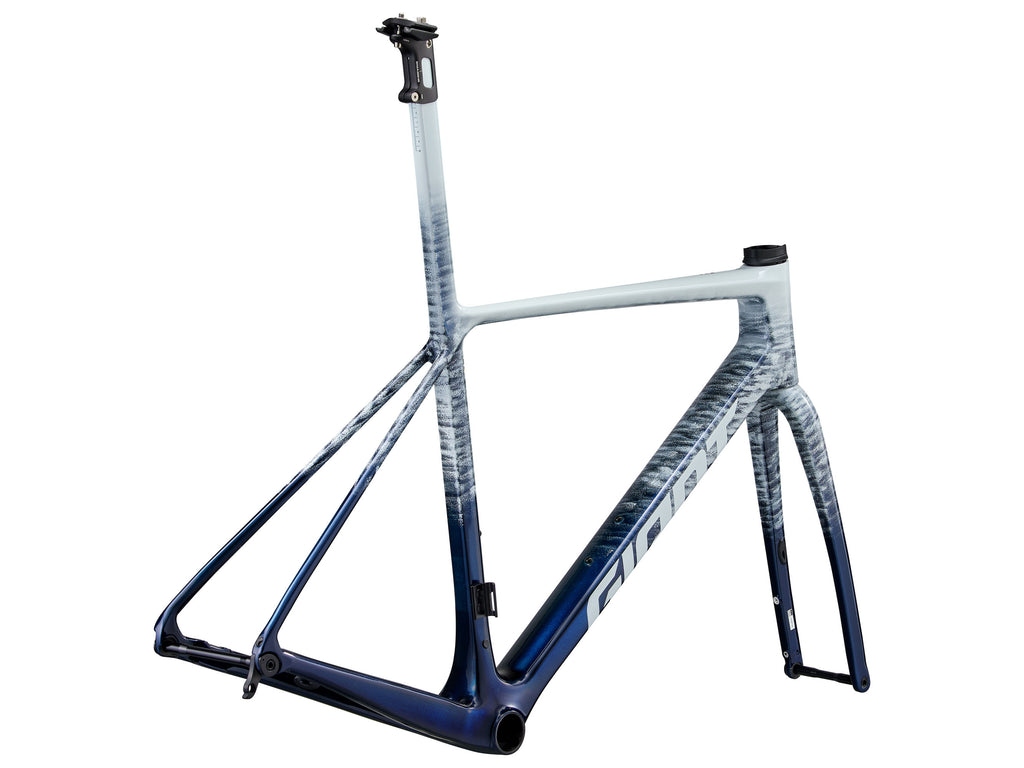

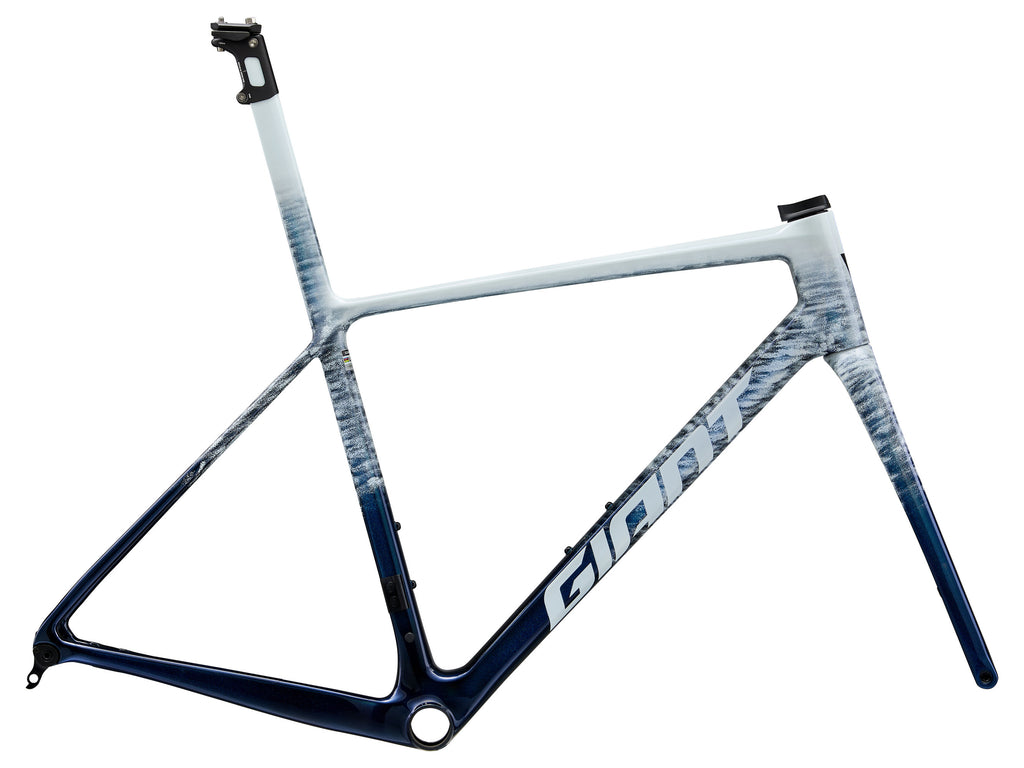

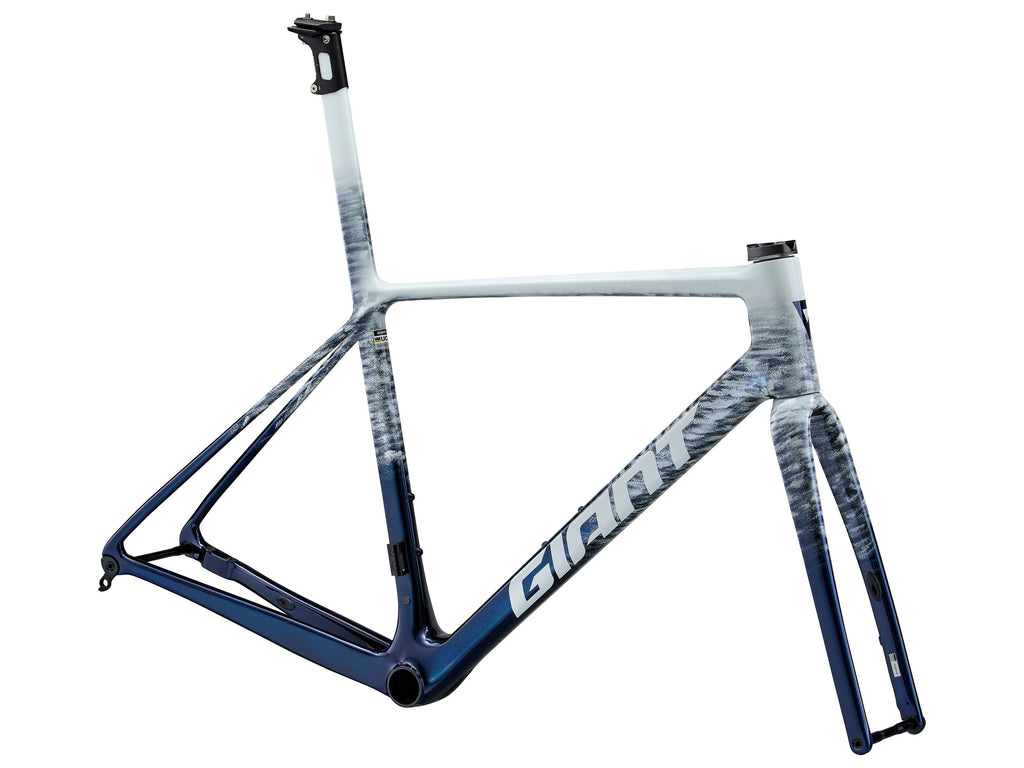

    Atmosphere/Stealth Chrome/Iris, Terrain Tracker, Polar Tide, Dune Beige
  • Frame
    Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Seatpost
    Giant Integrated Seatpost, -5/+15mm offset
  • Bottom Bracket
    BB86 accepts press fit style BB only, bearing set not included
  • Extras
    Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps
  • Max Tyre Clearance
    33mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
