Specifications

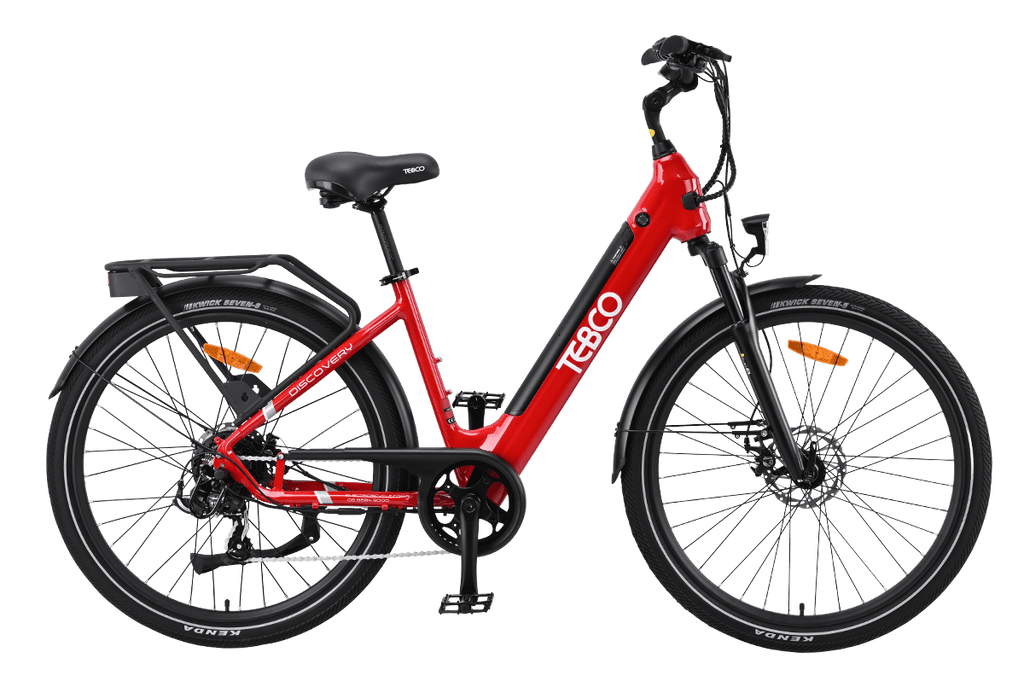

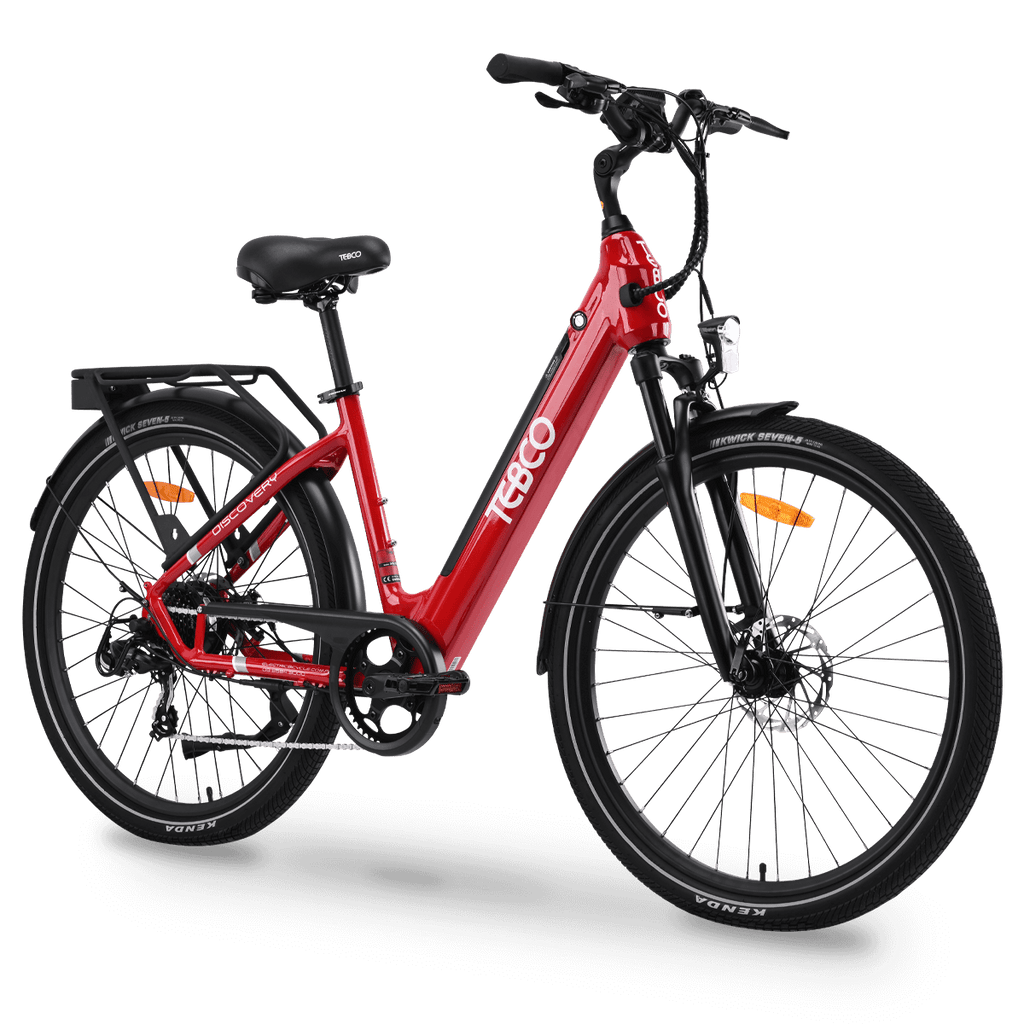

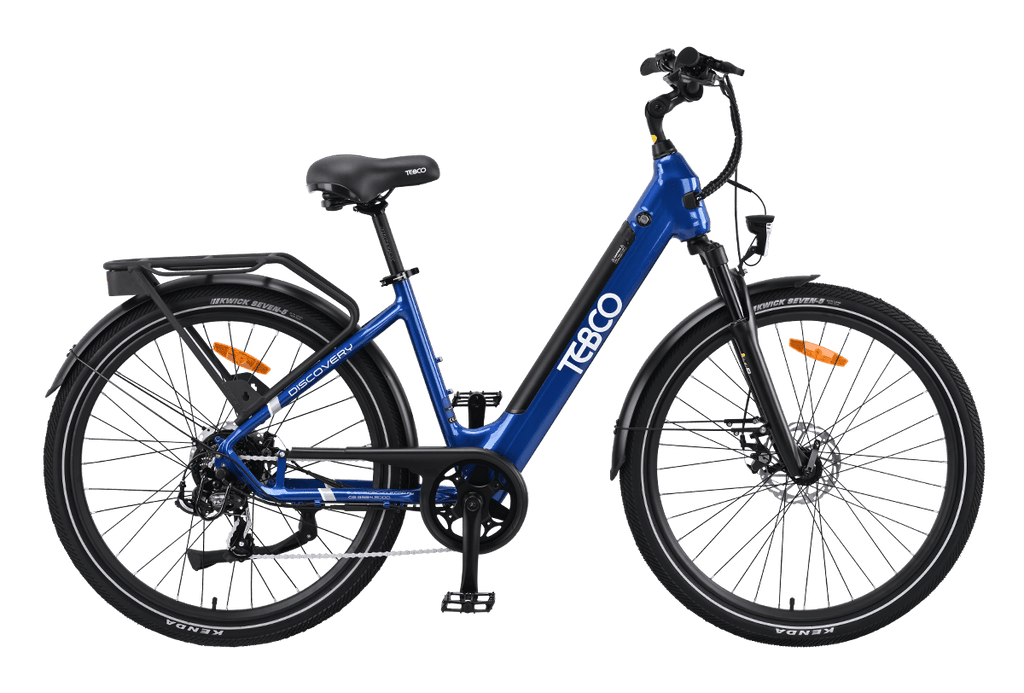

TEBCO DISCOVERY
Step-through unisex frame built for road or trail. The ULTIMATE TRANSPORT ALTERNATIVE.
FEATURES

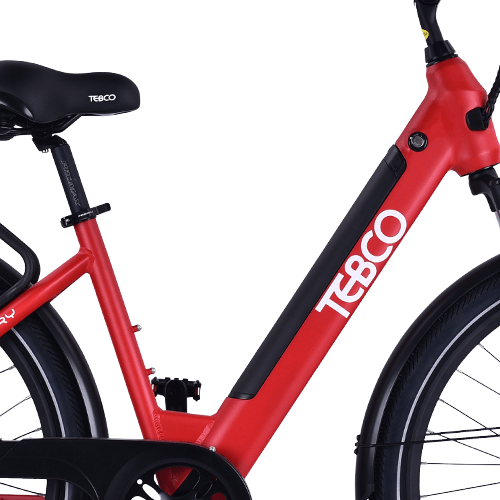

650B Wheels / Step Thru Unisex Alloy Frame
Max Speed 25kmh / Max Range 80kms (1:1 Pedalling)

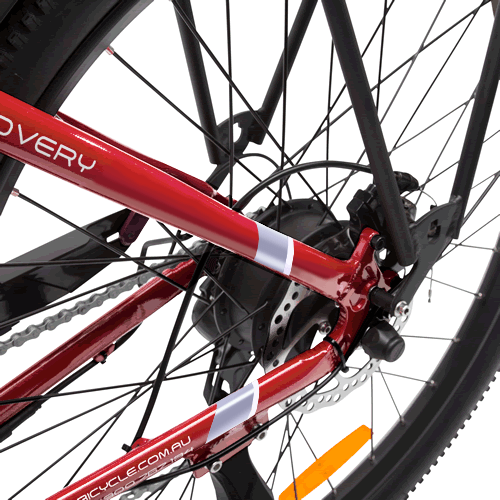

250W Motor Rear Hub Drive / 3 Level Torque Sensing
36V 14Ah Samsung Lithium Battery

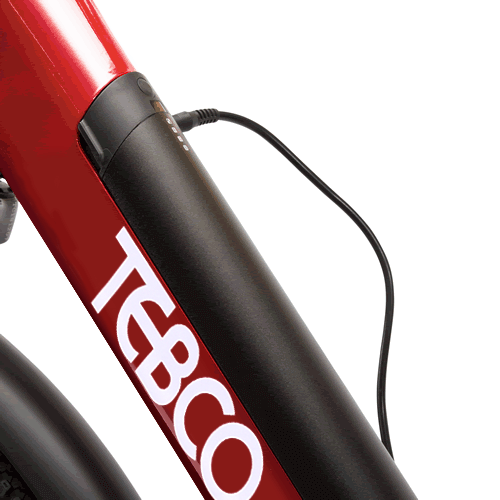

LATEST IN-FRAME BATTERY DESIGN

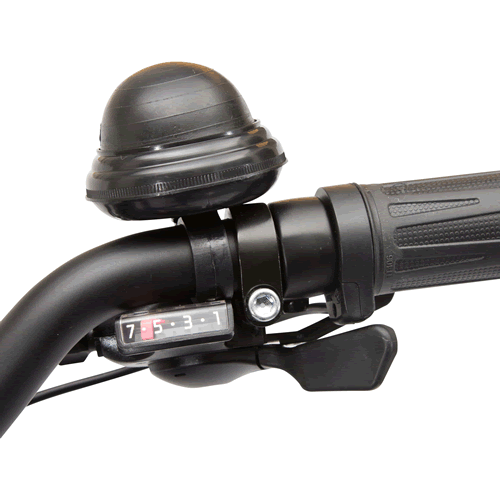

7 Speed Shimano Trigger Shift Gears
High Quality 2.125 Kenda K924 Tyres
Colour Indicator / Trip Computer / Speedo / Battery Gauge

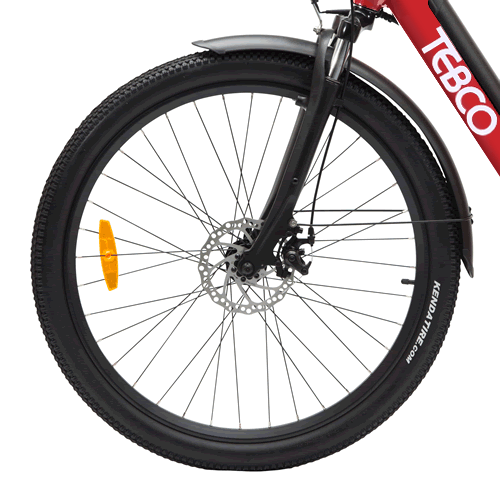

Disc Brake Front and Rear
No Licence or Registration Required
SPECIFICATIONS
Mechanical |
|
|---|---|
| Frame | 6061 Grade Alloy |
| Wheel Size | 650B 36H Front and Rear |

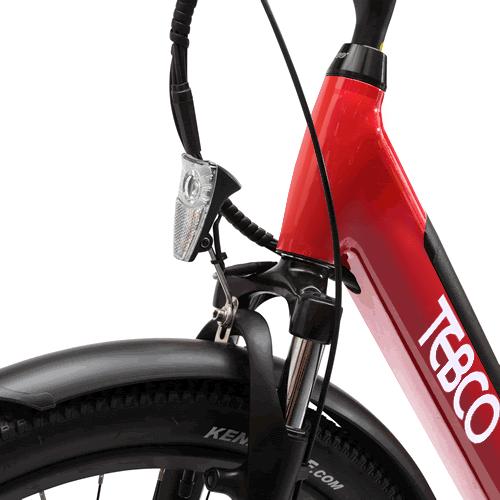

| Fork | Zoom Suspension |
| Handlebar | ZOOM HB-T320 |
| Stem | PROMAX MQ-565S |
| Seatpost | 28.6mm Promax Seatpost |
| Seat Clamp | 28.6mm Promax Seat Clamp |
| Saddle | Tebco Saddle Wide Based |
| Shifters | SHIMANO SL-M315 |
| Derailleur | SHIMANO TOURNEY 7Spd |
| Rims | 650B 36H Double Wall Alloy (Black) |
| Hubs | Modus Aluminum Hub |
| Spokes | 12g 2.4mm F / 12g 2.6mm R Stainless Steel Black |
| Tyres | KENDA K924 650B x 2.125in |
| Cranks | PROMAX E44PP/32 170MM 48T |
| Pedals | YONGHUA 8X |
| Chain | KMC Z51/RB/140L |
| Brakes Front | TEKTRO Aries Mechanical Disc |
| Brakes Rear | TEKTRO Aries Mechanical Disc |
| Brake Levers | WUXING 108PPD/4 |
| Mudguards | Black Plastic 650B x 65mm |
Electrical |
|
|---|---|
| Motor | 36V 250W Rear Hub Drive Motor |
| Controller | 15Ah LISHUI Brushless LSW1155-59M |
| Battery | 36V 14Ah Samsung Lithium Battery |
| Battery Life | Up to 800 recharges from flat |
| Battery Weight | 2.4kg |
| Display Panel | KEY DISPLAY KD86 |
| Pedal Activation | Torque Sensing Bottom Bracket |
| Light Front | BUCHEL LED 51252712 Static Illumination |
| Light Rear | BUCHEL LED 51254523 Static Illumination |
| Charger | Sans 36V 2Amp Lithium AU Compliant |
| Main Cable | JULET 1T5 Waterproof Quick Release |
| Audible Warning | HONKA HOOTA Black |
| Max Speed | 25kmh |
| Max Range | 80km 1:1 Pedal Assist |
| Bicycle Weight | 25kg incl battery |
Sizing |
|
|---|---|
| Length | 1820mm |
| Width | 660mm |
| Max Seat Height | 1060mm |
| Min Seat Height | 860mm |
| Step Over | 450mm |
