Anthem X Advanced SL 3
  • Anthem X Advanced SL 3
  • Anthem X Advanced SL 3
  • Anthem X Advanced SL 3
  • Anthem X Advanced SL 3
  • Anthem X Advanced SL 3
  • Anthem X Advanced SL 3
  • Anthem X Advanced SL 3
  • Anthem X Advanced SL 3
Anthem X Advanced SL 3

/ GIANT

Anthem X Advanced SL 3

SKU: 9008016104
$7,399.00
$7,399.00

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.
Size
ColourCarbon/Moon Dust
Out of stock

Specifications

Built to slay singletrack with blazing speed, the new Anthem X Advanced SL blurs the lines between XC and trail performance. The lightweight composite frame features a new semi-integrated FlexPoint Pro rear suspension setup with 120mm of travel plus a flip chip to adjust geometry. Combined with a 130mm fork and an integrated handlebar with clean cable routing, it’s fast, fun and ready to rip.



Key Performance Factors



RACE-BRED TRAIL SPEED

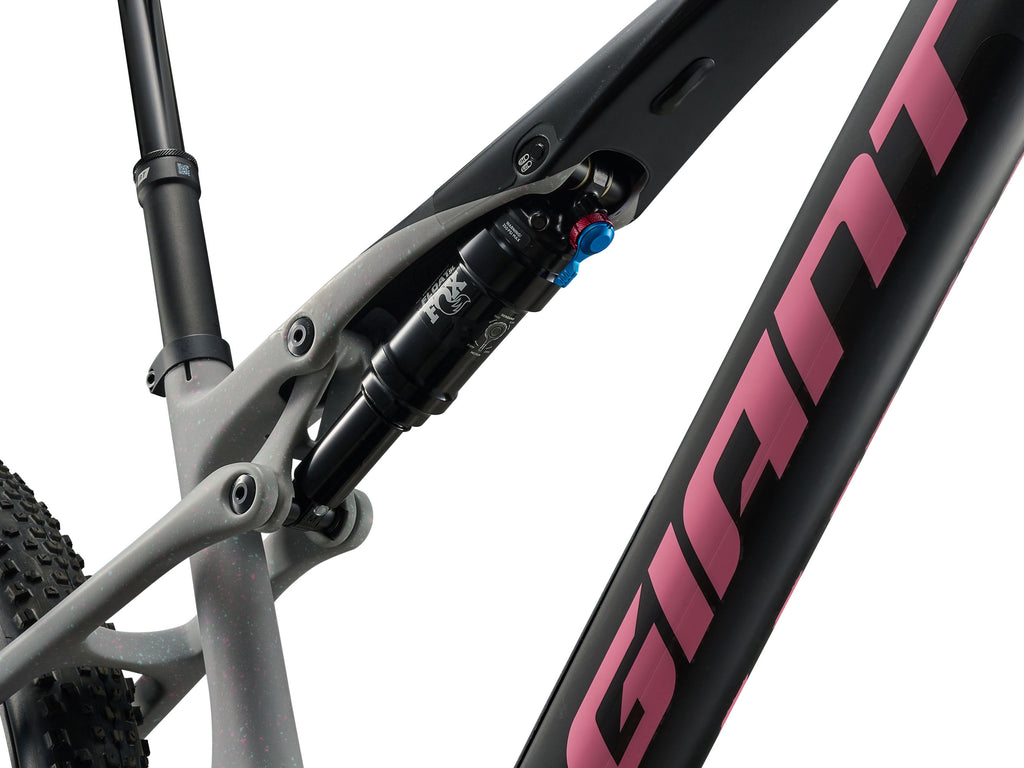

A full-composite frameset is both ultra-light and highly efficient to help you power up climbs and make every watt count. The WheelSystems and integrated handlebar/stem units are designed for maximum efficiency and instantaneous response to rider input. The rear shock is repositioned and semi-integrated with the top tube, shaving weight and creating space for a second water bottle cage.

TOTAL CONTROL

The new FlexPoint Pro suspension delivers 120mm of smooth, active rear travel paired with a 130mm fork—helping you fly down rough descents and power up technical climbs. A flip chip lets you fine tune handling for all types of terrain. Superlight composite or alloy Giant WheelSystems (depending on model) with a next-generation 120-tooth helical ratchet drive system for immediate power and robust 5mm rim sidewalls for greater protection against impacts and punctures.

SYSTEM INTEGRATION

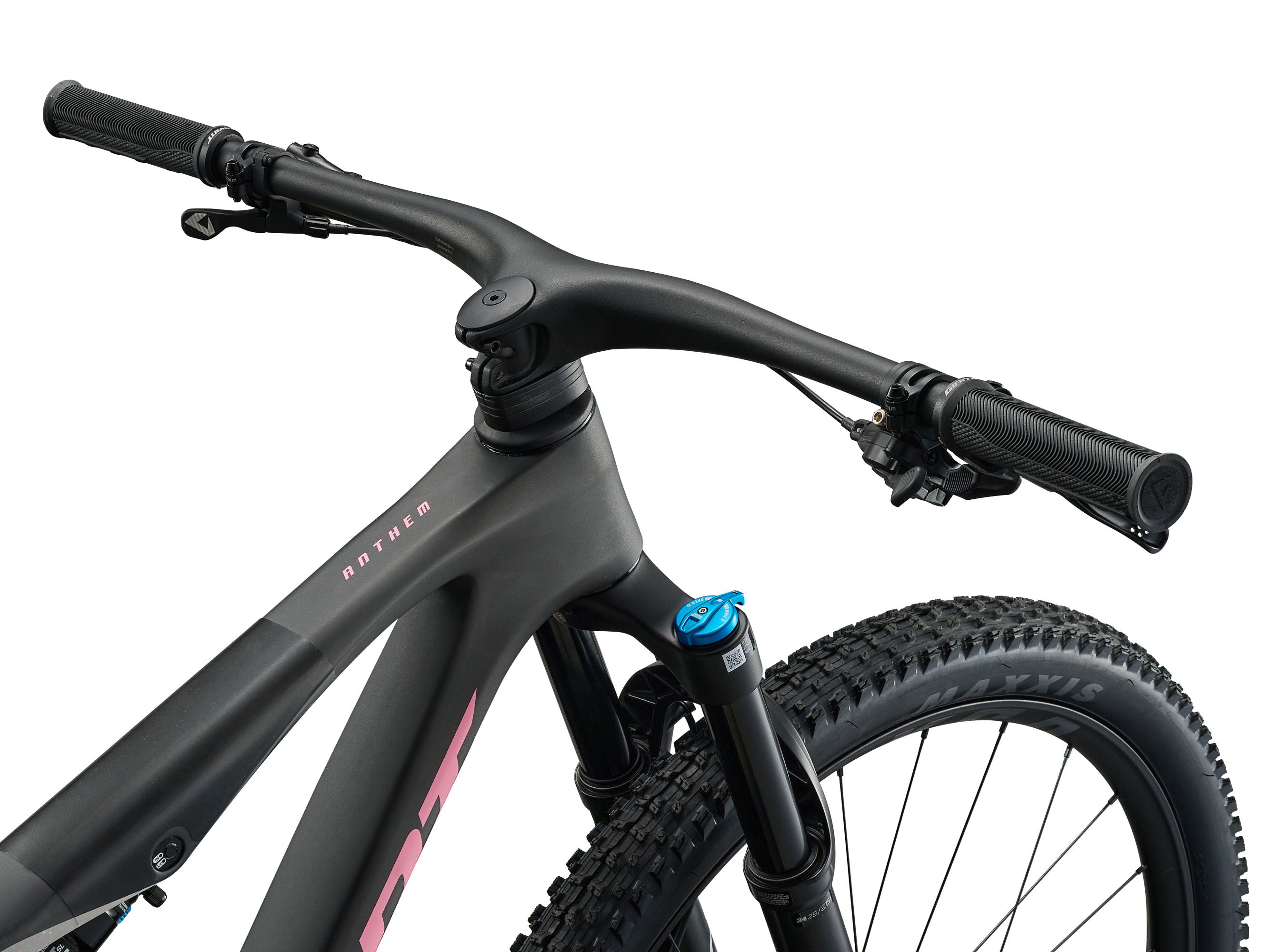

A new one-piece integrated handlebar/stem unit adds compliance to reduce shocks and vibrations, improving control and hand comfort. It’s available in two models—the Contact SLR XC Integrated composite and Contact SL XC Integrated alloy. Both feature the same seamless cable routing and versatile sizing with a 780mm standard width and stem lengths ranging from 50-90mm.

Highlights

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  S M L XL
  LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A Seat Tube Length (mm) 400 420 465 495
B Seat Tube Angle 75.0° | 75.5° 75.1° | 75.5° 75.1° | 75.6° 75.1° | 75.6°
C Top Tube Length (mm) 577 | 575 603 | 602 625 | 624 653 | 651
D Head Tube Length (mm) 90 95 105 115
E Head Tube Angle 66.0° | 66.5° 66.1° | 66.5° 66.1° | 66.6° 66.1° | 66.6°
F Fork Rake (mm) 44 44 44 44
G Trail (mm) 119.5 | 115.7 119.3 | 115.6 119.2 | 115.5 119 | 115.4
H Wheelbase (mm) 1145 | 1144 1172 | 1171 1196 | 1195 1225 | 1224
I Chain Stay Length (mm) 437 | 435 437 | 435 437 | 435 437 | 435
J Bottom Bracket Drop (mm) 48 | 42 48 | 42 48 | 42 48 | 42
K Stack (mm) 606 | 602 611 | 607 620 | 616 629 | 625
L Reach (mm) 415 | 420 440 | 445 460 | 465 485 | 490
M Stand Over Height (mm) 774 | 780 770 | 776 762 | 769 757 | 764
O Stem Length (mm) 50 50 60 70
P Crank Length (mm) 170 170 175 175
Specs
  • Sizes
    S, M, L, XL
  • Colours
    Carbon/Moon Dust
  • Frame
    Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, internal storage
  • Fork
    Fox 34 Rhythm, 130mm, GRIP damper, Boost 15x110, 44mm offset
  • Shock
    Fox Float SL Performance
  • Handlebar
    Giant Integrated XC, alloy, 9-degree upsweep
  • Grips
    Giant Tactal, lock on
  • Stem
    Giant Integrated XC Alloy S:50mm, M:50mm, L:60mm, XL:70mm
  • Seatpost
    Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 110-140mm travel / 30.9 x 395mm L: 140-170mm travel / 30.9 x 470mm XL: 140-170mm travel / 30.9 x 470mm
  • Saddle
    Giant Grit Core
  • Pedals
    N/A
  • Shifters
    Shimano Deore SL-M6100, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano Deore SL-M6100 Shadow +
  • Brakes
    TRP Slate EVO hydraulic, stainless, TRP rotors [F]203mm, [R]180mm
  • Brake Levers
    TRP EVO Comp HD-M7040
  • Cassette
    Shimano M6200, 10x51
  • Chain
    KMC X-12
  • Crankset
    Praxis Cadet HD M24, 32t, 55mm chainline S:170mm, M:170mm, L:175mm, XL:175mm
  • Bottom Bracket
    Praxis, press fit
  • Rims
    XCA 29 Alloy Wheelsystem
  • Hubs
    [F] Giant alloy, 6-bolt [R] Giant Alloy, 120T Helical-Bevel Ratchet Driver, 6-Bolt
  • Spokes
    Sapim
  • Tyres
    [F] Maxxis Rekon 29.x2.4", TLR, EXO, tubeless, [R] Maxxis Rekon Race 29x2.4", TLR, EXO, tubeless
  • Extras
    Tubeless prepared, MRP 1x CS chain guide
  • Max Tyre Clearance
    2.4"
  • Max Chainring Size
    34t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
