Avail Advanced E+ Elite AR 25km/h
  • Avail Advanced E+ Elite AR 25km/h
  • Avail Advanced E+ Elite AR 25km/h
  • Avail Advanced E+ Elite AR 25km/h
  • Avail Advanced E+ Elite AR 25km/h
  • Avail Advanced E+ Elite AR 25km/h
  • Avail Advanced E+ Elite AR 25km/h
  • Avail Advanced E+ Elite AR 25km/h
  • Avail Advanced E+ Elite AR 25km/h
Avail Advanced E+ Elite AR 25km/h

/ GIANT

Avail Advanced E+ Elite AR 25km/h

SKU: 6680003103
$10,499.00
$10,499.00

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.
Size
ColourEucalyptus/Ocean Storm
Out of stock

Specifications

The design of the Avail Advanced E+ Elite AR stealthily conceals its potent electric capabilities. A compact rear hub motor, lightweight carbon frame and fork, hidden controls, and internal cable routing is the epitome of a beautiful, high-end road bike that looks fast—even when it’s not moving.



Key Performance Factors



A Natural Ride

It looks like an analog road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.

Maximum Miles. Minimum Fatigue.

The Avail Advanced E+ Elite AR provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience.

Delivering Power & Speed

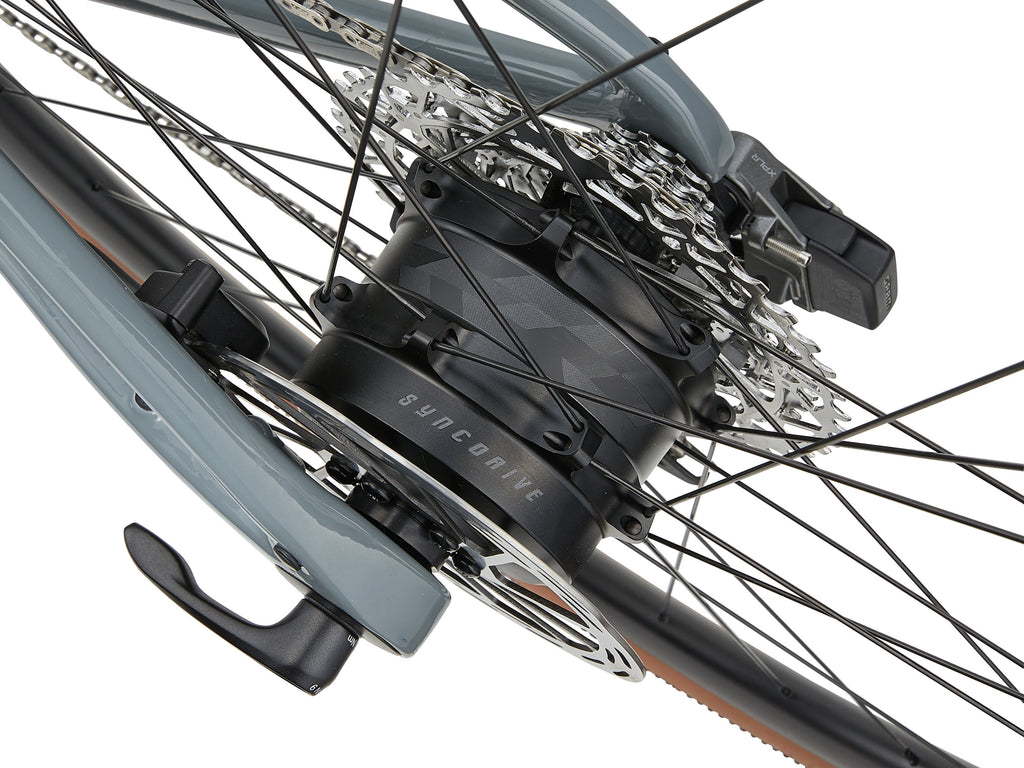

The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30 Nm which is comparable to 75 Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 25 km/h in Australia.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  XS S M
A Seat Tube Length (mm) 400 435 470
B Seat Tube Angle 74.5° 74.5° 74.0°
C Top Tube Length (mm) 515 525 540
D Head Tube Length (mm) 120 135 155
E Head Tube Angle 70.5° 71.0° 72.0°
F Fork Rake (mm) 50 50 50
H Wheelbase (mm) 993 999 1003
I Chain Stay Length (mm) 420 420 420
J Bottom Bracket Drop (mm) 80 80 80
K Stack (mm) 529 545 563
L Reach (mm) 368 374 378
M Stand Over Height (mm) 677 708 743
O Stem Length (mm) 80 90 100
Q Wheel Size 700C 700C 700C
Specs
  • Motor
    Giant SyncDrive Move Plus, Rear Hub, 30Nm
  • Controller
    Mode support switch from SRAM Blips
  • Display
    Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak smart charger 4A
  • Maximum assisted speed
    Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    XS, S, M
  • Colours
    Eucalyptus/ Ocean Storm
  • Frame
    Advanced-grade composite,12x145 thru-axle
  • Fork
    Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
  • Shock
    -
  • Handlebar
    Giant Contact SL D-Fuse XS:38/41cm, S:38/41cm, M:40/43cm
  • Stem
    Giant Contact SL AeroLight XS:80mm S:90mm, M:100mm
  • Seatpost
    Giant D-Fuse, Composite, 14mm offset
  • Saddle
    Liv Approach
  • Pedals
    N/A
  • Shifters
    SRAM Rival AXS
  • Front Derailleur
    n/a
  • Rear Derailleur
    SRAM Rival XPLR AXS
  • Brakes
    SRAM Rival AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM Rival AXS hydraulic
  • Cassette
    SRAM Rival XPLR XG-1251, 12-speed, 10-44
  • Chain
    SRAM Rival
  • Crankset
    SRAM X-SYNC 46T BCD107 chain ring Praxis E Crank Alloy ISIS, XS:165 S:165mm, M:170mm
  • Bottom Bracket
    Giant E+ System BBSS
  • Rims
    Giant P-R2 Alloy Disc Wheel System, Tubeless Ready, 22mm inner width, 12mm thru-axle, w/ Sapim spoke E-Light [R] Race [F], e-bike optimized
  • Hubs
    [F] Giant Alloy, 24H [R] Giant SyncDrive Move Plus, 28H
  • Spokes
    Sapim spoke E-Light [R] Race [F], e-bike optimised
  • Tyres
    Schwalbe G-one Allround Performance, RaceGuard, Brown side-wall, tubeless, 700x35
  • Extras
    N/A
  • NSW Certification
    ULL-104279-EA
  • Lighting
    Seatpost clamp integrated tail light
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
