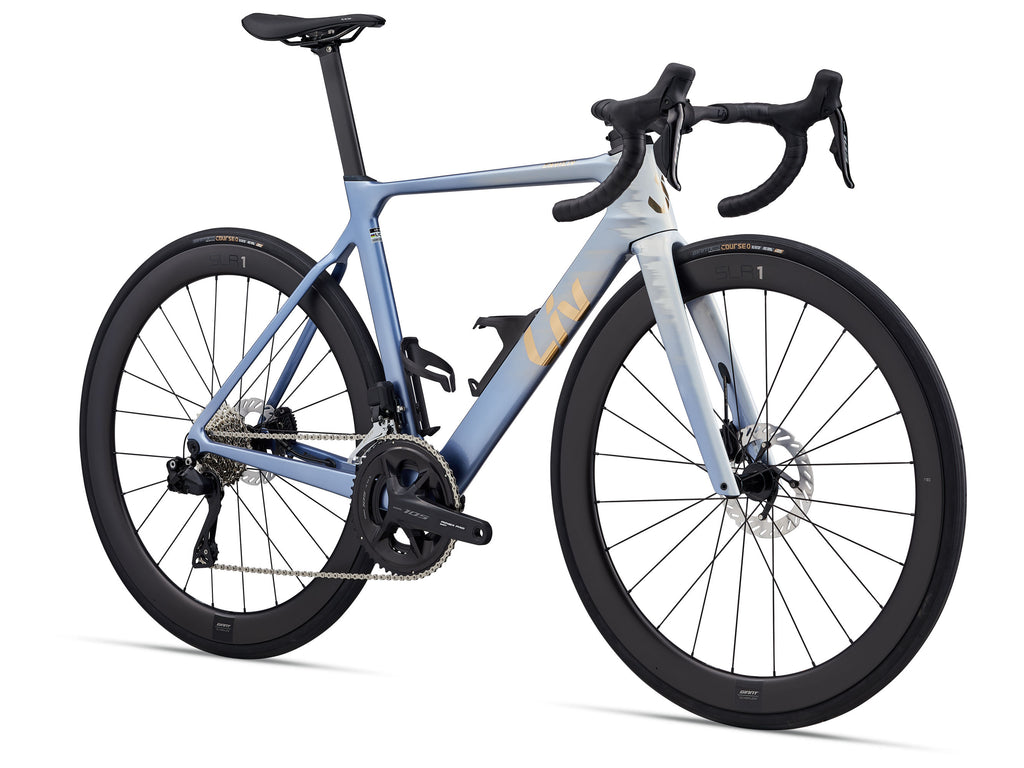

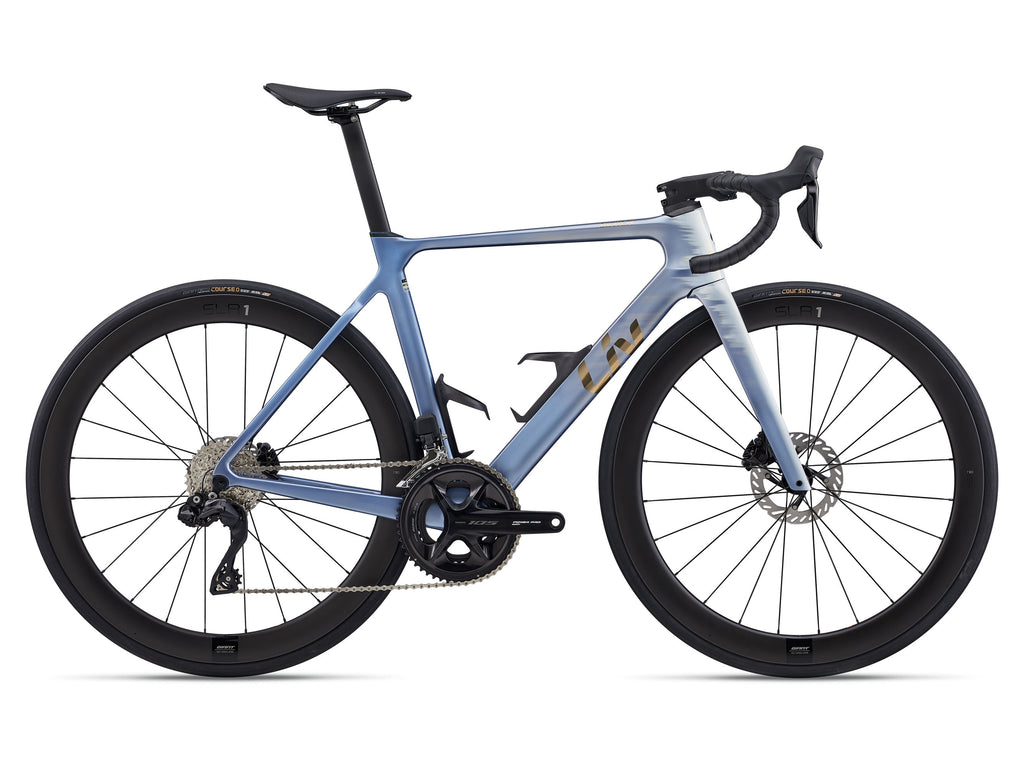

EnviLiv Advanced Pro 1

/ GIANT

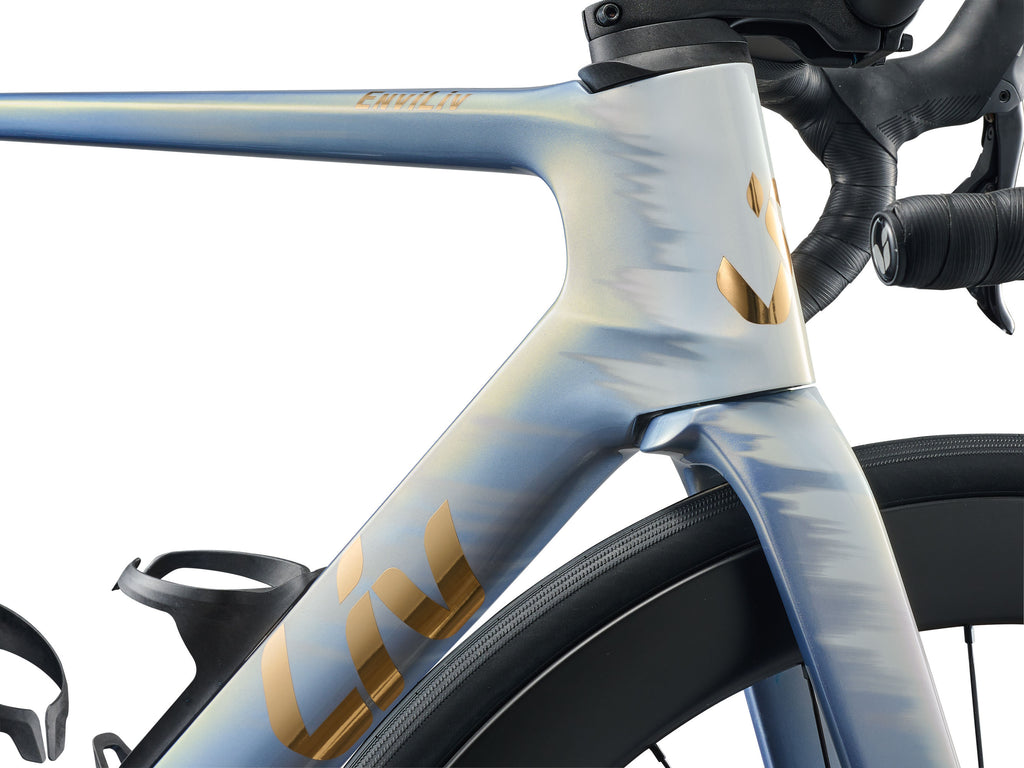

EnviLiv Advanced Pro 1

SKU: 9036012103
$6,999.00
Sale price  $6,999.00 Regular price

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.

Size
ColourDreamy Blue
Out of stock

Specifications

From the stage race breakaway to the final criterium lap, the all-new EnviLiv is made to be out front. We’ve redesigned our signature sprinter for optimised aerodynamic performance, greater stiffness-to-weight advantage, and maximum trophies.



Key Performance Factors



Optimised Aerodynamics

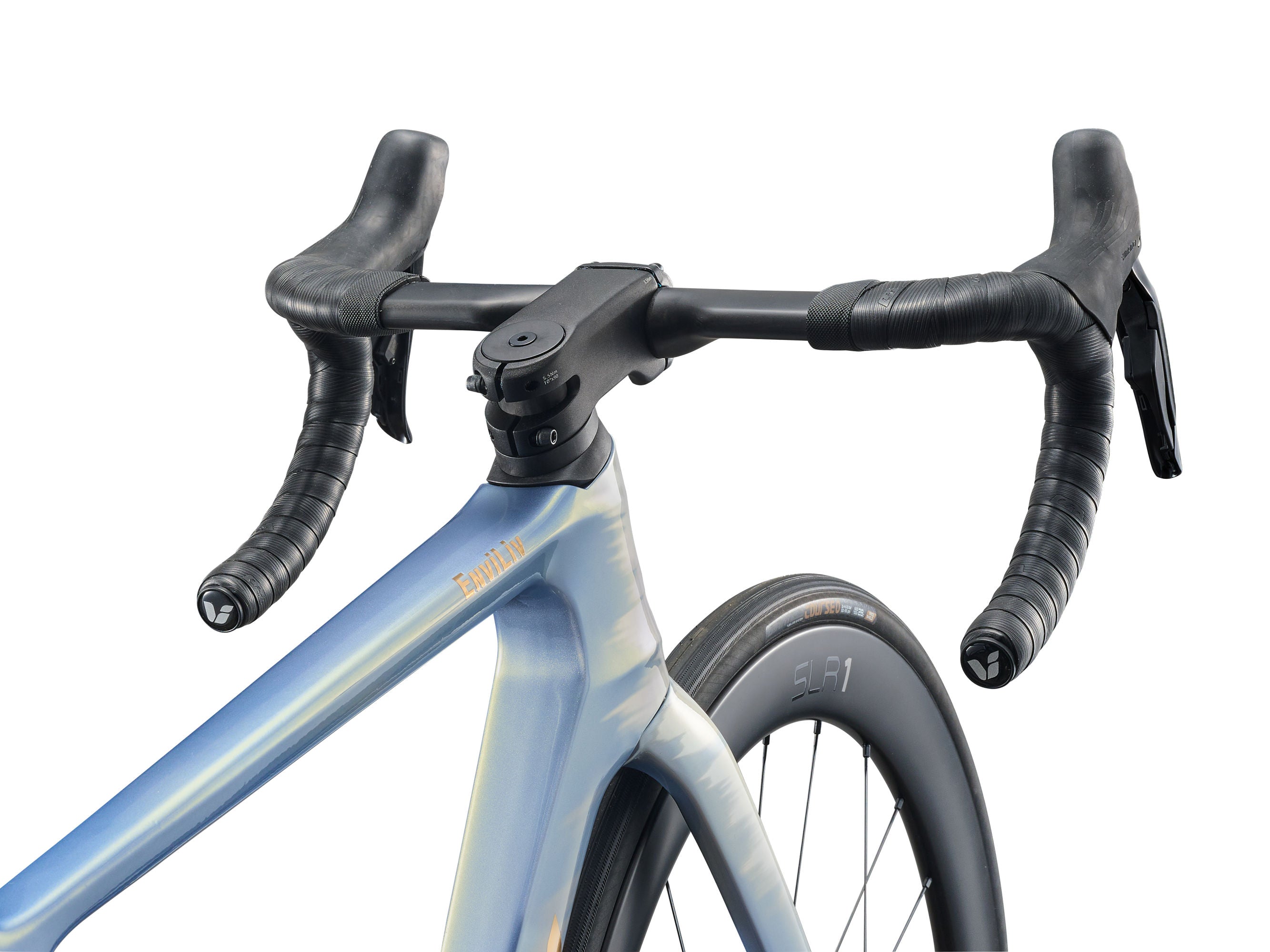

In our pursuit of maximum power and efficiency, we analyse how the bike and rider experience airflow at every speed and direction, both on the computer and in the wind tunnel. The new EnviLiv features truncated ellipse airfoil tube shapes and an all-new Contact SLR Aero cockpit, with flattened tops and deeper drops, for reduced drag and added control, and better overall aero performance.

Sprinting Efficiency

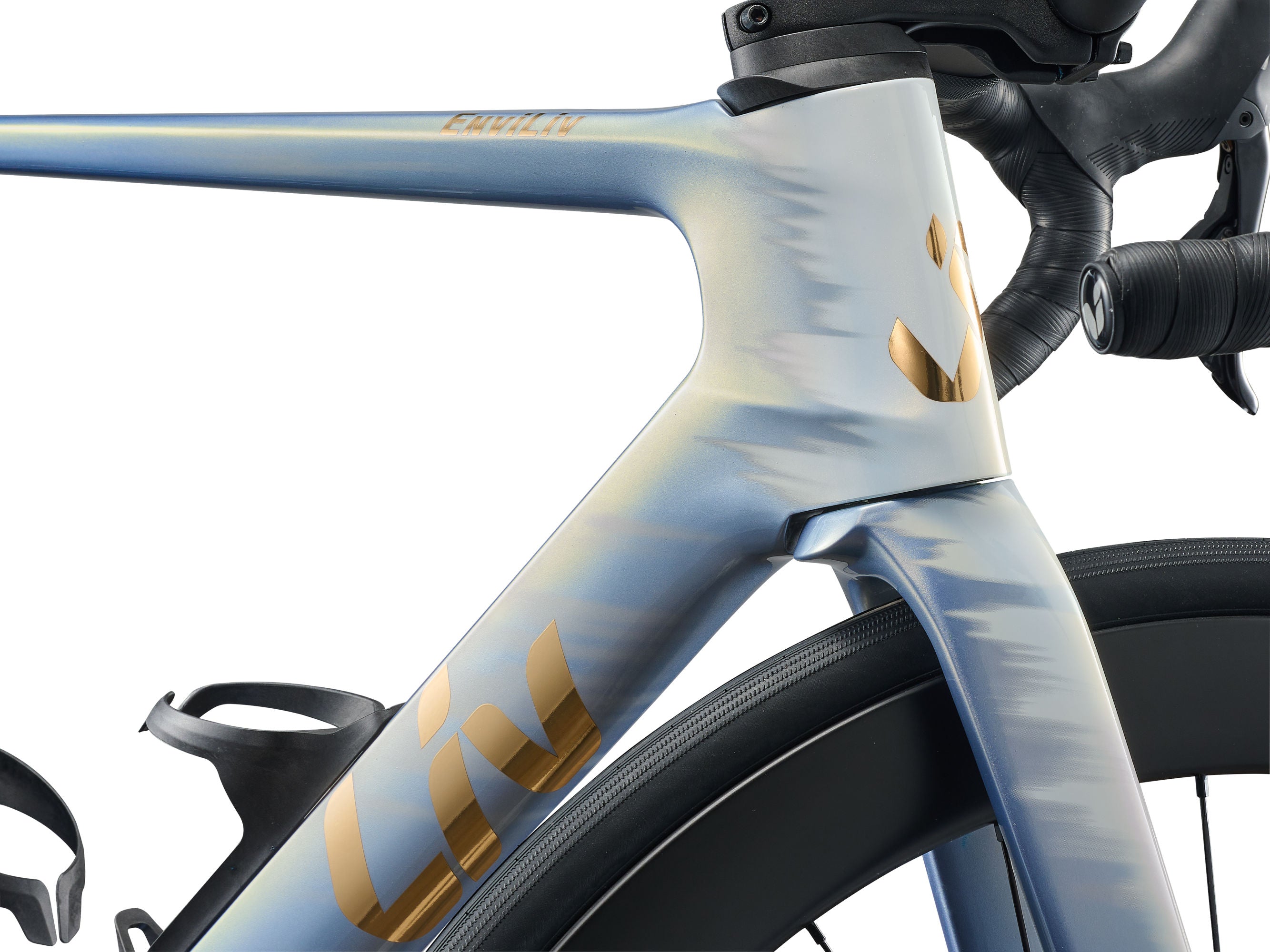

Aerodynamics are affected by many factors, two of them often seen as mutually exclusive: stiffness and weight. But the EnviLiv has found the sweet spot, with a new Advanced-grade composite frame and an Advanced SL-grade composite fork—resulting in 205 grams of weight savings over the previous generation.

Seamless Integration

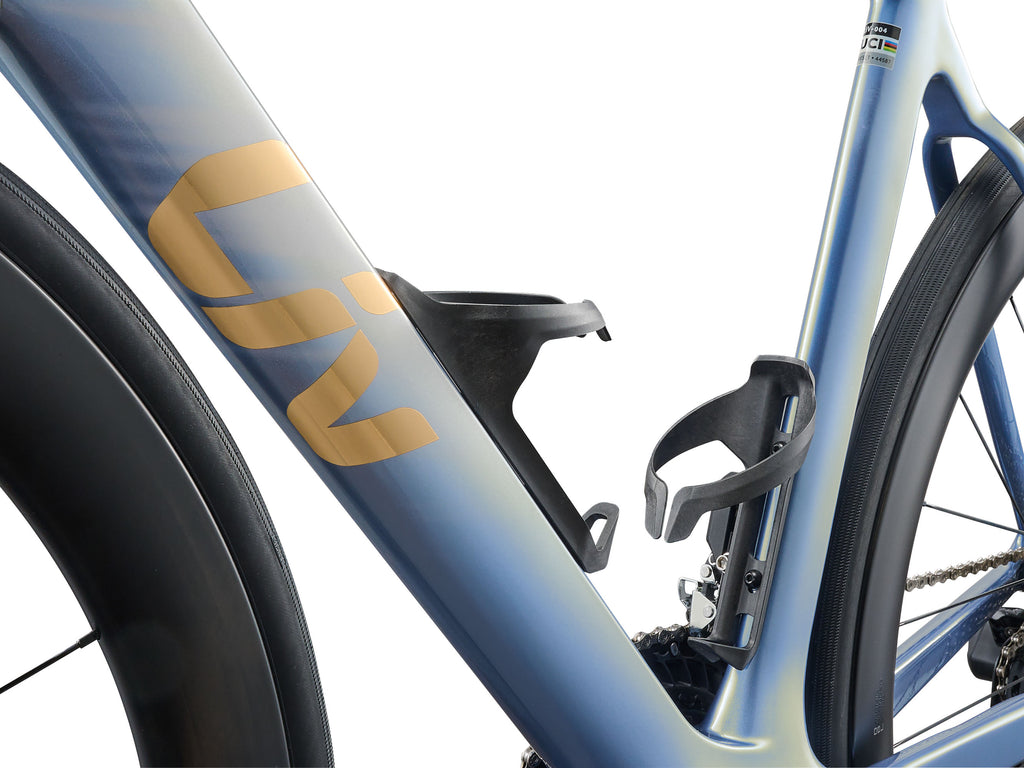

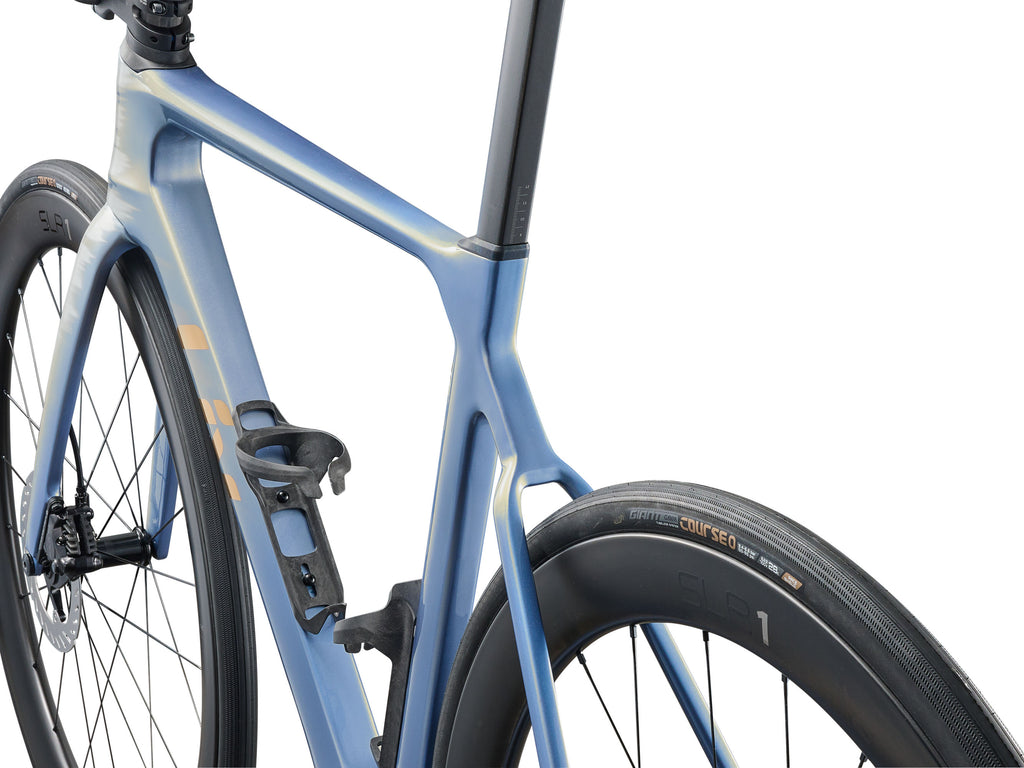

When every second matters, so does every detail. So we developed a new way to route cables through the handlebar, stem, and frame, which improves aero performance, and also makes it easier to disassemble your bike for travel and maintenance. Two aerodynamic water bottle cages flawlessly integrate with the seat tube and down tube, further reducing drag.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  XS S M
A Seat Tube Length (mm) 470 500 530
B Seat Tube Angle 75.0° 74.5° 74.0°
C Top Tube Length (mm) 508 524 540
D Head Tube Length (mm) 120 135 155
E Head Tube Angle 71.0° 72.0° 72.5°
F Fork Rake (mm) 49 49 49
G Trail (mm) 66.3 59.9 56.8
H Wheelbase (mm) 973 977 984
I Chain Stay Length (mm) 405 405 405
J Bottom Bracket Drop (mm) 72 70 70
K Stack (mm) 517 532 553
L Reach (mm) 370 377 382
M Stand Over Height (mm) 732 761 787
O Stem Length (mm) 80 90 100
P Crank Length (mm) 165 165 170
Specs
  • Sizes
    XS, S, M
  • Colours
    Dreamy Blue
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc
  • Fork
    Advanced SL-grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Liv Contact SLR Aero XS:36cm, S:38cm, M:40cm
  • Grips
    Liv Stratus Elite 2.0
  • Stem
    Giant Contact SL Aero, OverDrive Aero XS:80mm, S:90mm, M:100mm
  • Seatpost
    Giant Vector, composite, -5/+15mm offset
  • Saddle
    Liv Alacra SL
  • Pedals
    N/A
  • Shifters
    Shimano 105 Di2
  • Front Derailleur
    Shimano 105 Di2 FD-R7150
  • Rear Derailleur
    Shimano 105 Di2 RD-R7150
  • Brakes
    Shimano 105 Di2 hydraulic, Shimano RT-CL700 rotors, [F] 160mm, [R] 140mm
  • Brake Levers
    Shimano 105 Di2
  • Cassette
    Shimano 105, 12-speed, 11x34
  • Chain
    KMC X12L-1
  • Crankset

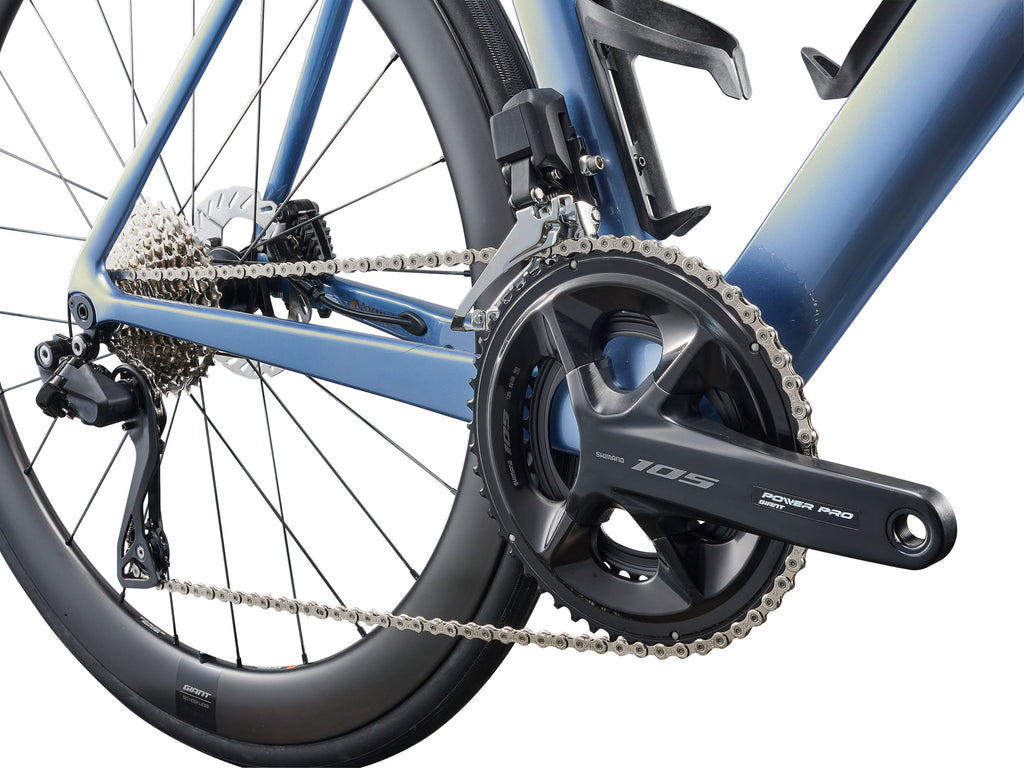

    Shimano 105, 36/52 with Giant Power Pro power meter XS:165mm, S:165mm, M:170mm
  • Bottom Bracket
    Shimano, press fit
  • Rims

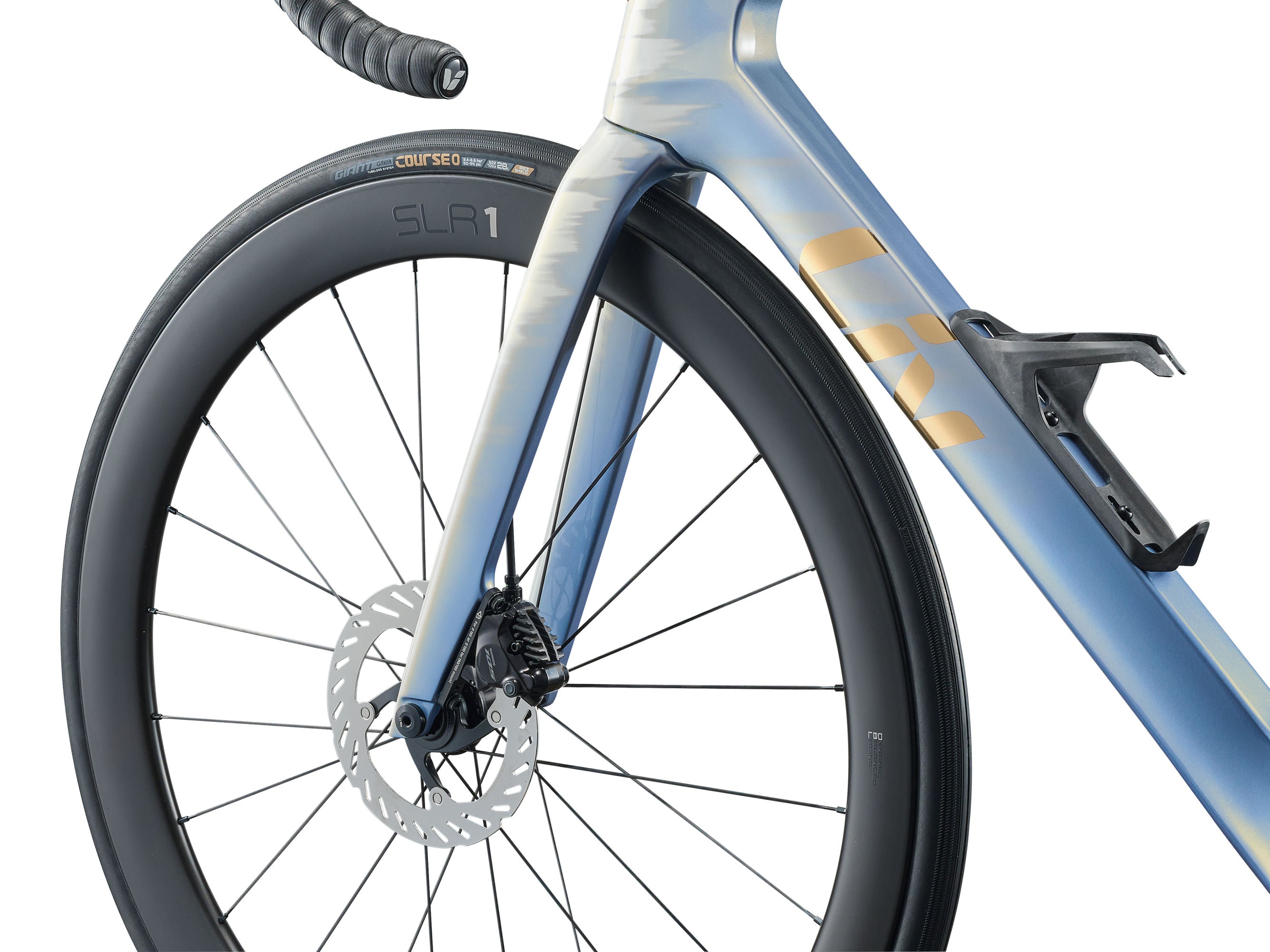

    Giant SLR 1 50 Carbon Disc WheelSystem, [F] 50mm, [R] 50mm
  • Hubs
    [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
  • Spokes
    SAPIM CX-Ray
  • Tyres
    Giant Gavia Course 0, 700x28c, folding, tubeless
  • Extras
    Computer mount, water bottle cages, tubeless prepared, 30mm max tyre size
  • Max Tyre Clearance
    30mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
