Langma Advanced 1-PC
  • Langma Advanced 1-PC
  • Langma Advanced 1-PC
  • Langma Advanced 1-PC
  • Langma Advanced 1-PC
  • Langma Advanced 1-PC
  • Langma Advanced 1-PC
Langma Advanced 1-PC

/ LIV

Langma Advanced 1-PC

SKU: 9065040103
$4,999.00
$4,999.00

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.
Size
ColourMorning Haze
Out of stock

Specifications

The official bike of road riding season, the Langma Advanced was designed to climb mountains and leaderboards. The re-engineered frameset and components are seamlessly integrated for effortless ascents and fearless descents. Streamlined aerodynamics round out this all-rounder, inspiring you to push limits all day long.



Key Performance Factors



QOM-LEVEL EFFICIENCY

The re-engineered frameset and integrated components yield efficient power transfer for quick bursts of speed and sustained climbing prowess.

LIMIT-PUSHING CONTROL

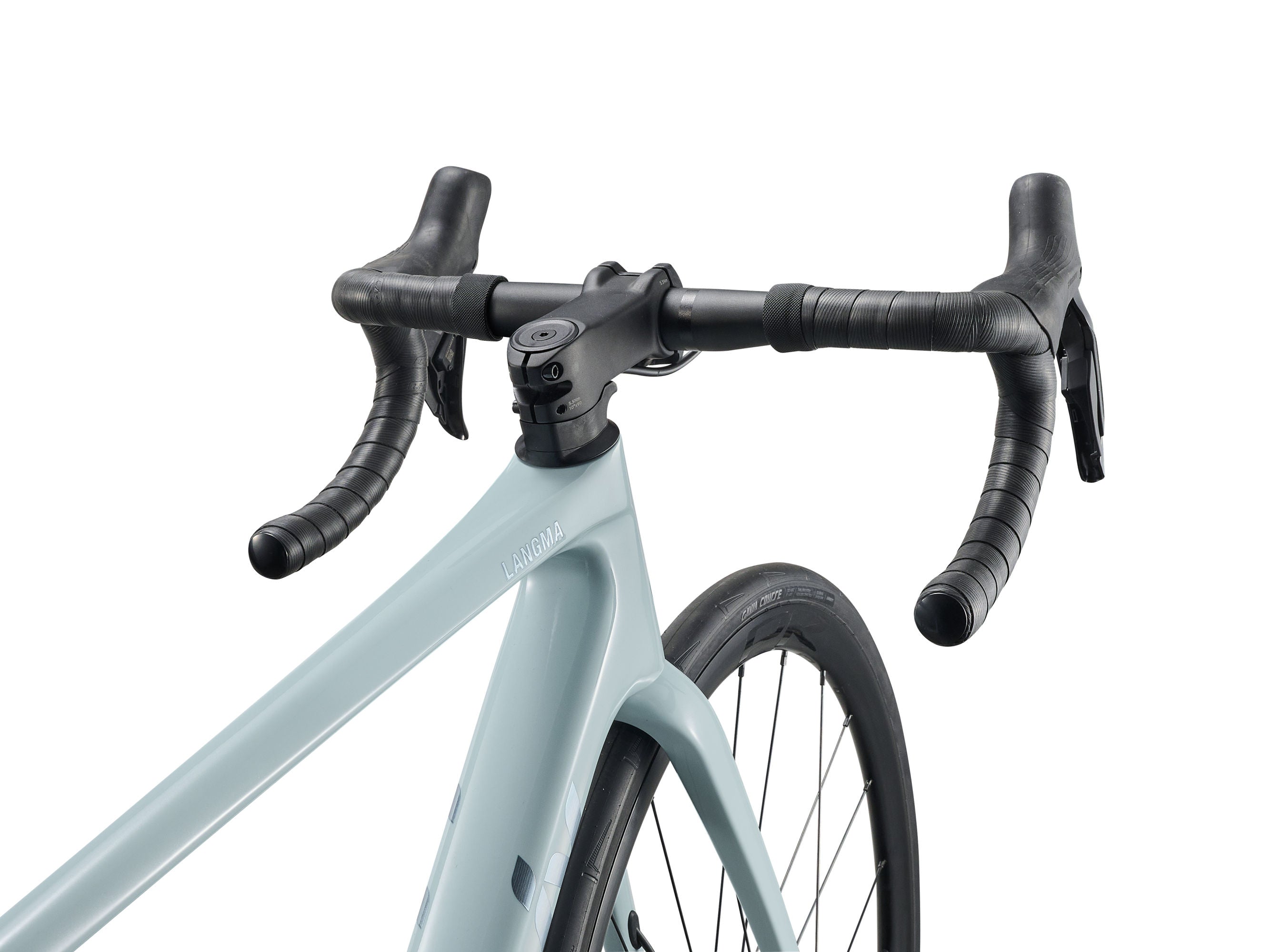

Up to 33mm tyre clearance means you’re ready for any road, from the freshly-poured to the weather-beaten, without compromising handling. The flared handlebar injects control and confidence into those explosive sprints and bomber descents.

GAP-WIDENING AERO

With truncated ellipse tube shapes and a new internal cable routing design, you’ll reduce drag, pick up speed, and watch the scenery fly by.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  XS S M
A Seat Tube Length (mm) 420 450 480
B Seat Tube Angle 75.0° 74.5° 74.0°
C Top Tube Length (mm) 508 524 540
D Head Tube Length (mm) 120 135 155
E Head Tube Angle 71.0° 72.0° 72.5°
F Fork Rake (mm) 49 49 49
G Trail (mm) 68 61 58
H Wheelbase (mm) 973 977 984
I Chain Stay Length (mm) 405 405 405
J Bottom Bracket Drop (mm) 72 70 70
K Stack (mm) 517 532 553
L Reach (mm) 370 377 382
M Stand Over Height (mm) 707 736 763
O Stem Length (mm) 80 90 100
P Crank Length (mm) 165 165 170
Specs
  • Sizes
    XS, S, M
  • Colours
    Morning Haze
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
  • Handlebar
    Liv Contact XS:36cm, S:38cm, M:40cm
  • Grips
    Stratus Elite 3.0
  • Stem
    Giant Contact AeroLight XS:80mm, S:90mm, M:100mm
  • Seatpost
    Giant Variant, composite, -5/+15mm offset
  • Saddle
    Liv Approach
  • Pedals
    N/A
  • Shifters
    Shimano 105 Di2 ST-R7170
  • Front Derailleur
    Shimano 105 Di2 FD-7150
  • Rear Derailleur
    Shimano 105 Di2 RD-7150
  • Brakes
    Shimano 105 Di2 hydraulic, Shimano SM-RT64 rotors [F] 160mm, [R] 140mm
  • Brake Levers
    Shimano 105 Di2
  • Cassette
    Shimano 105, 12-speed, 11x34
  • Chain
    KMC X12L-1
  • Crankset
    Shimano 105, 36/52 XS:165mm, S:165mm, M:170mm
  • Bottom Bracket
    Shimano, press fit
  • Rims
    Giant P-R1, [F]30mm, [R]30mm
  • Hubs
    [F] Giant Alloy, CenterLock, 24H [R] Giant Alloy, CenterLock, 24H
  • Spokes
    Sapim Race
  • Tyres
    Giant Gavia Course 0, tubeless, 700x30c (30mm), folding
  • Extras
    Tubeless prepared
  • Max Tyre Clearance
    33mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
