Propel Advanced SL-FF

/ GIANT

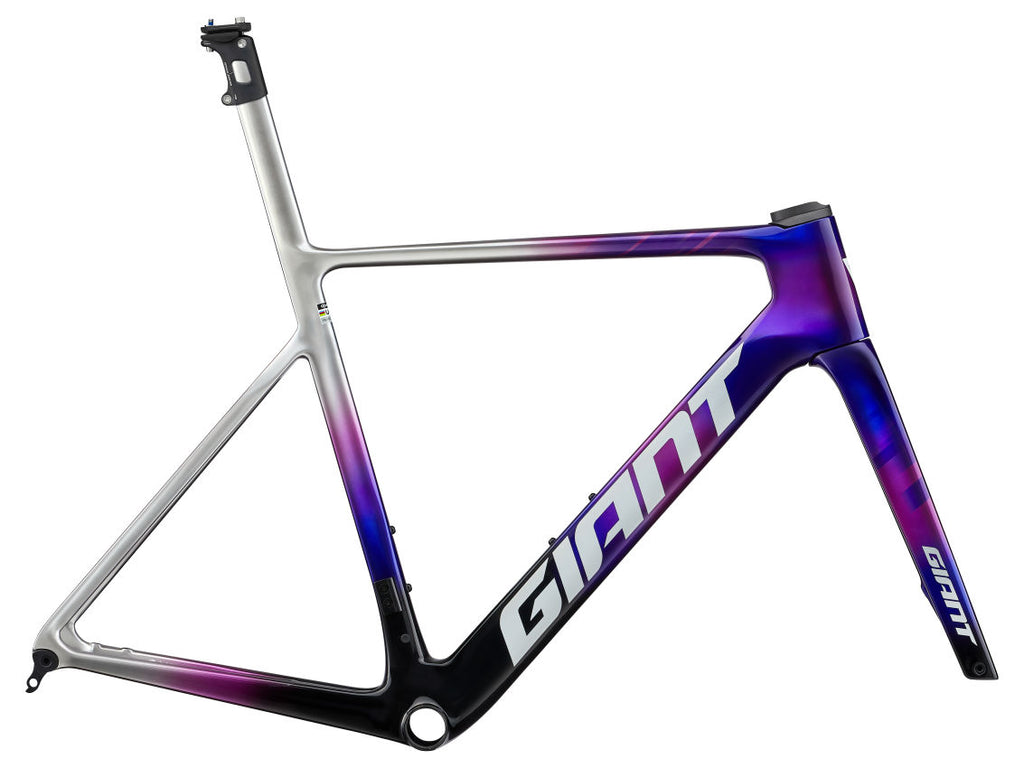

Propel Advanced SL-FF

SKU: 1906007104
$5,499.00
Sale price  $5,499.00 Regular price

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.

Size
Colour
Out of stock

Specifications

Unleash your sprint with 200 metres to go. Close a gap, chase back, launch a solo attack. This new aero road machine is made for the moments that count. More aero, more adjustable, more ways to win.



Key Performance Factors



Integrated aerodynamics

AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes produces outstanding overall aero performance.

Easier adjustability

All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.

Race-winning efficiency

Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.

Highlights

The Propel Advanced SL frameset is engineered with Giant’s AeroSystem Shaping technology, which means every tube shape and angle is optimized for minimal drag. The tubes feature a truncated ellipse shape for a frame that is ultra-stiff and superlight, while the integrated seatpost reduces weight, improves aero performance, and adds road-smoothing compliance. This special edition honors Team Jayco AlUla with the team’s bold colors.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  S M ML L XL
A Seat Tube Length (mm) 710 740 770 800 830
B Seat Tube Angle 74.0° 73.5° 73.0° 73.0° 72.5°
C Top Tube Length (mm) 535 550 565 580 600
D Head Tube Length (mm) 130 145 165 185 200
E Head Tube Angle 72.3° 73.0° 73.0° 73.0° 73.0°
F Fork Rake (mm) 45 45 45 45 45
G Trail (mm) 62.5 57.8 57.8 57.8 57.8
H Wheelbase (mm) 977 980 991 1006 1020
I Chain Stay Length (mm) 405 405 405 405 405
J Bottom Bracket Drop (mm) 70 70 67 67 67
K Stack (mm) 528 545 562 581 596
L Reach (mm) 383 388 393 402 412
M Stand Over Height (mm) 755 775 794 821 834
O Stem Length (mm) 90 100 110 110 120
P Crank Length (mm) 165 170 170 172.5 172.5
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours

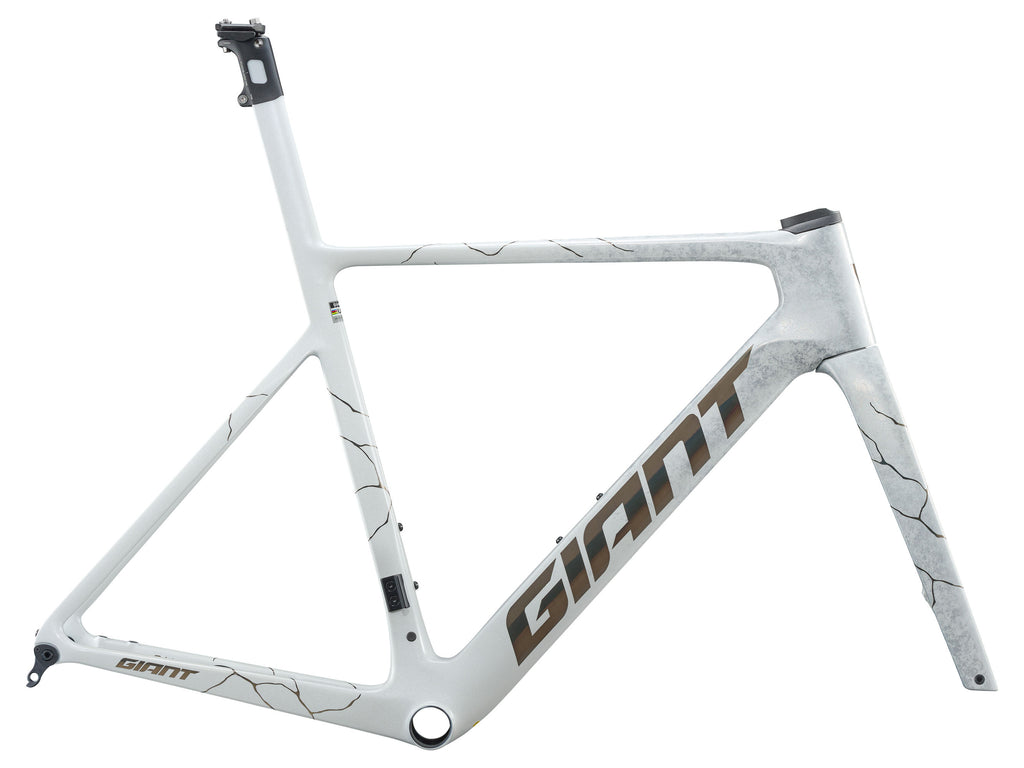

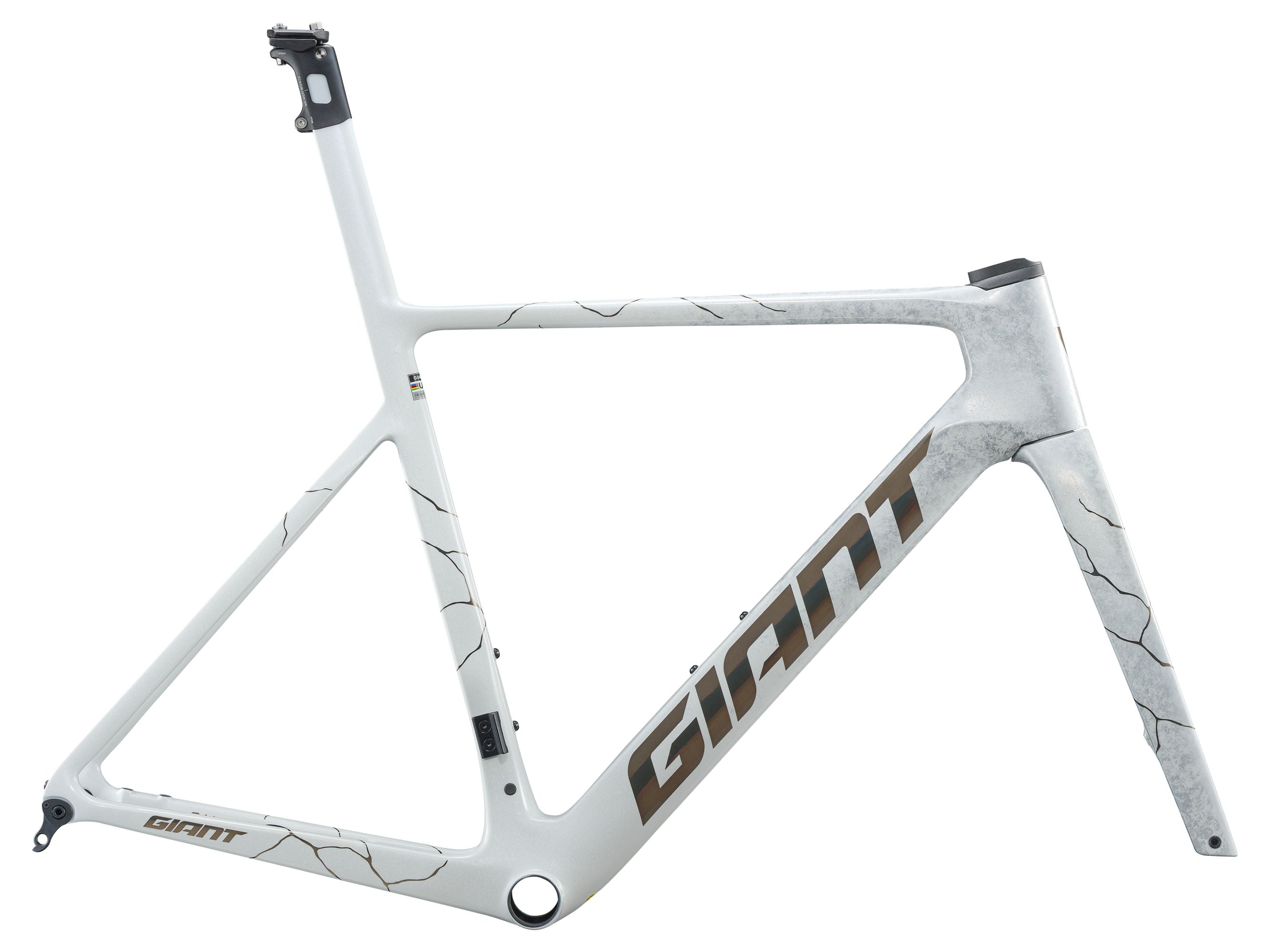

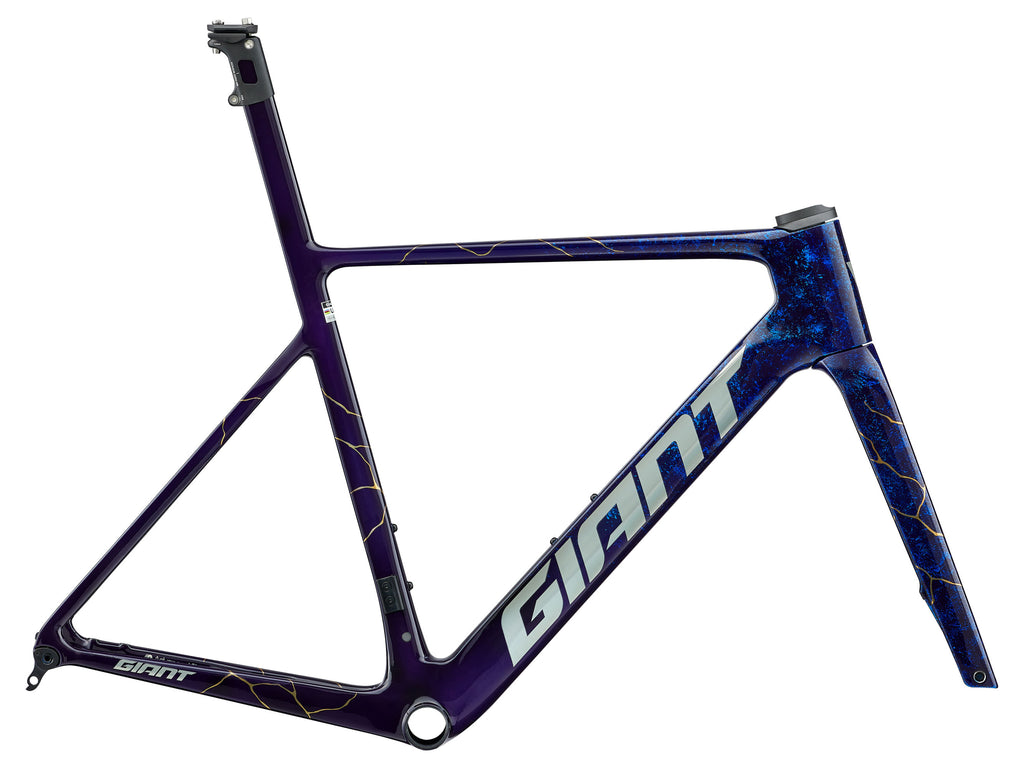

    Kintsugi Blue/Chrome, Howlite

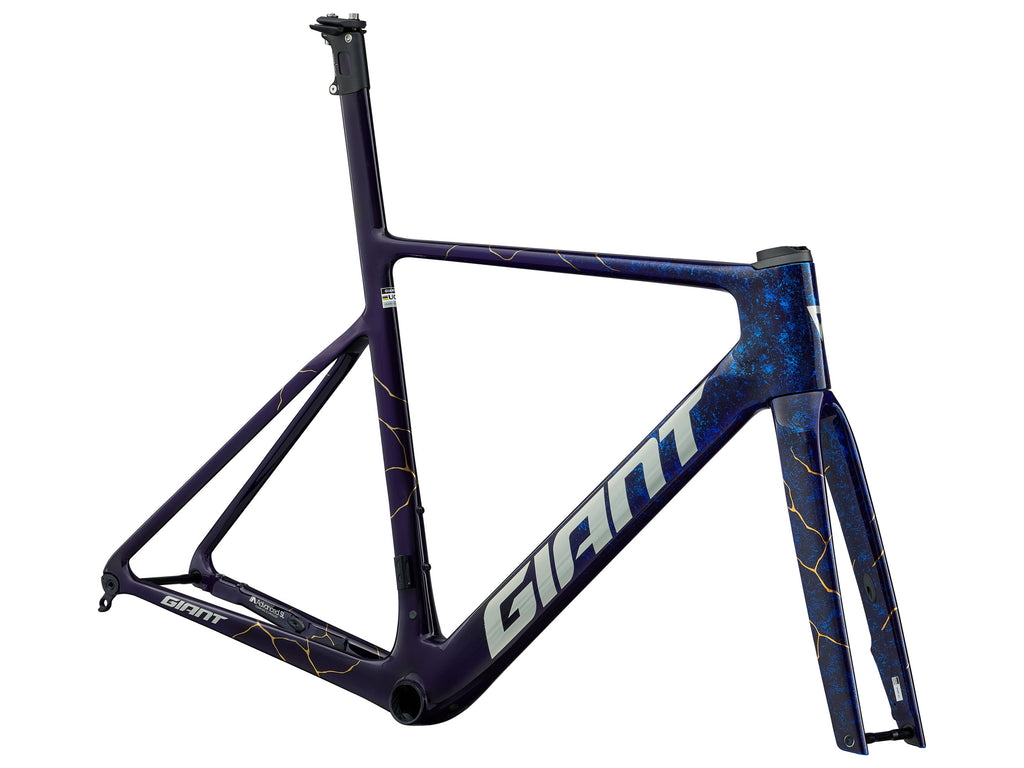

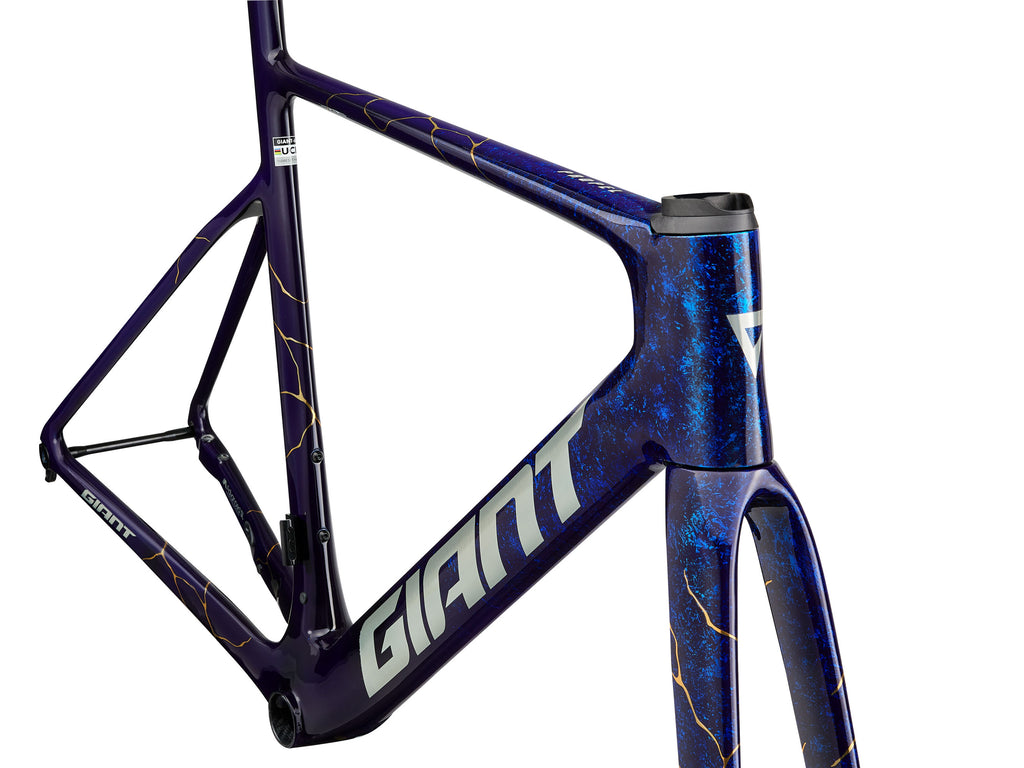

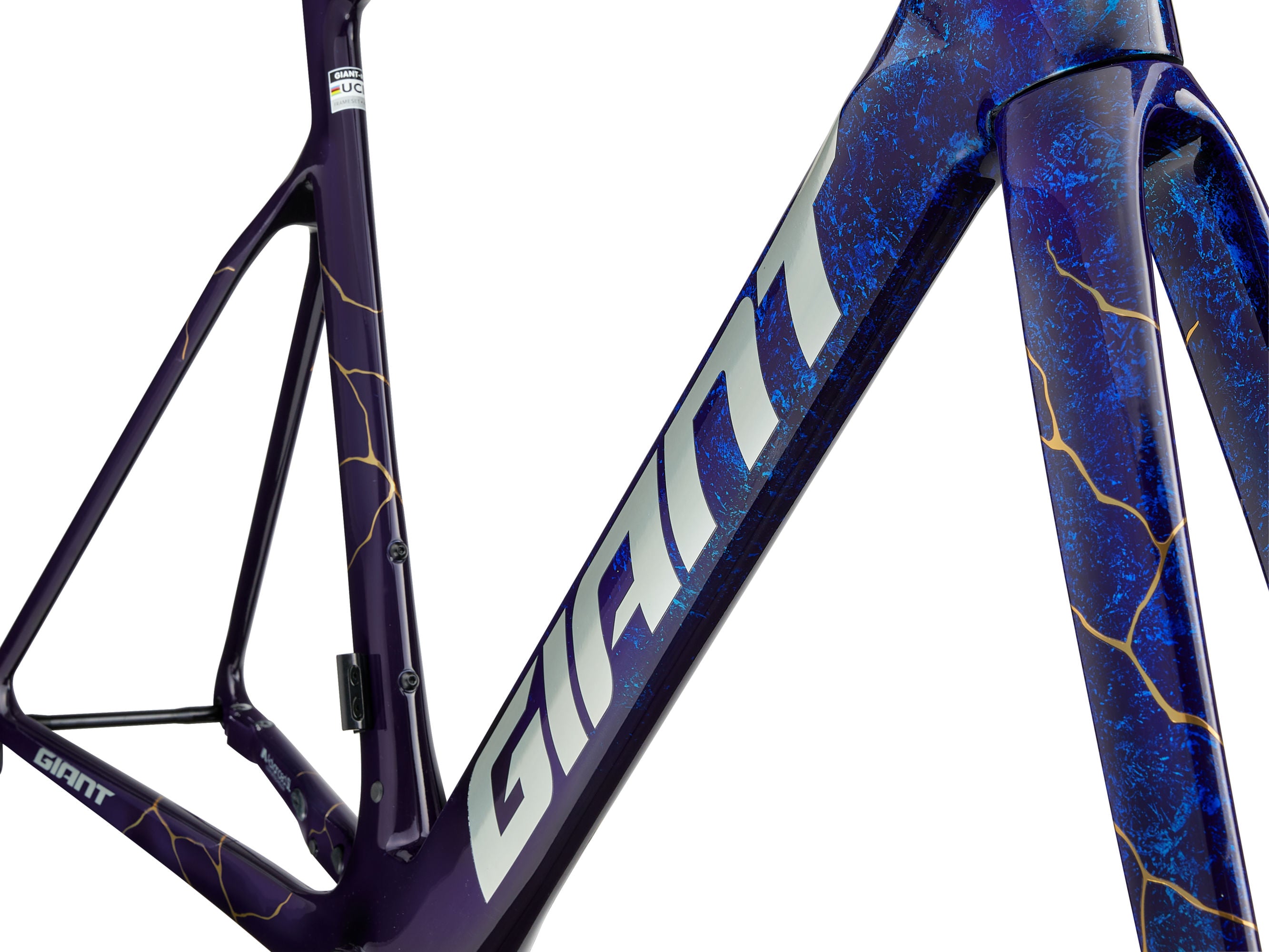

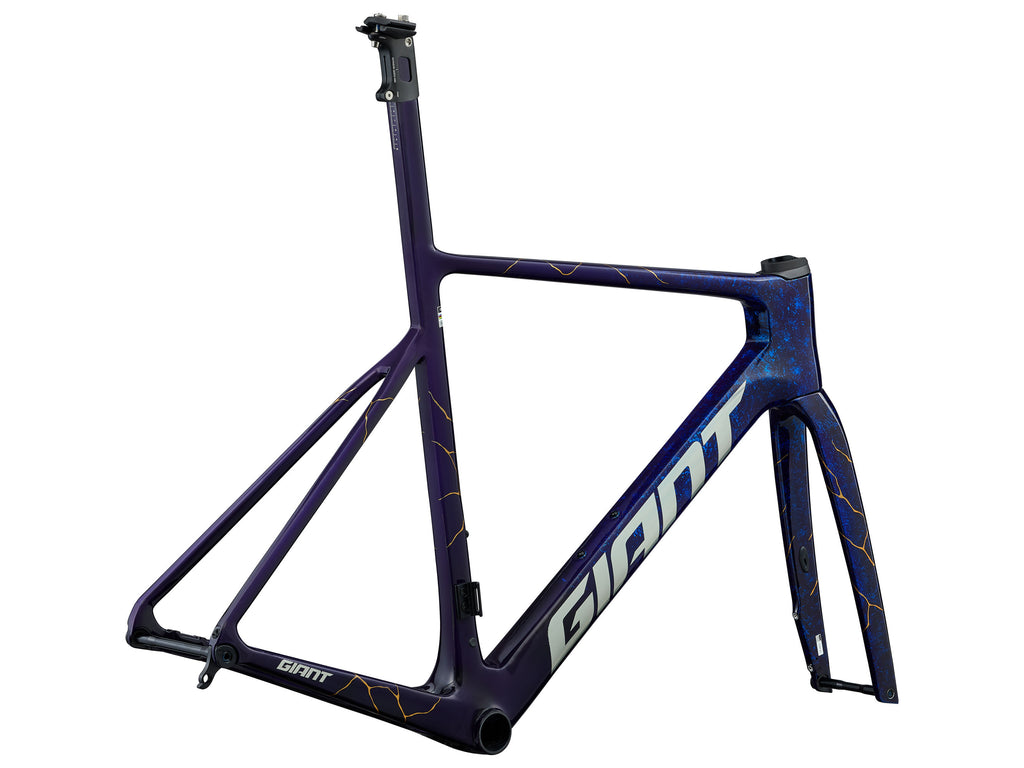

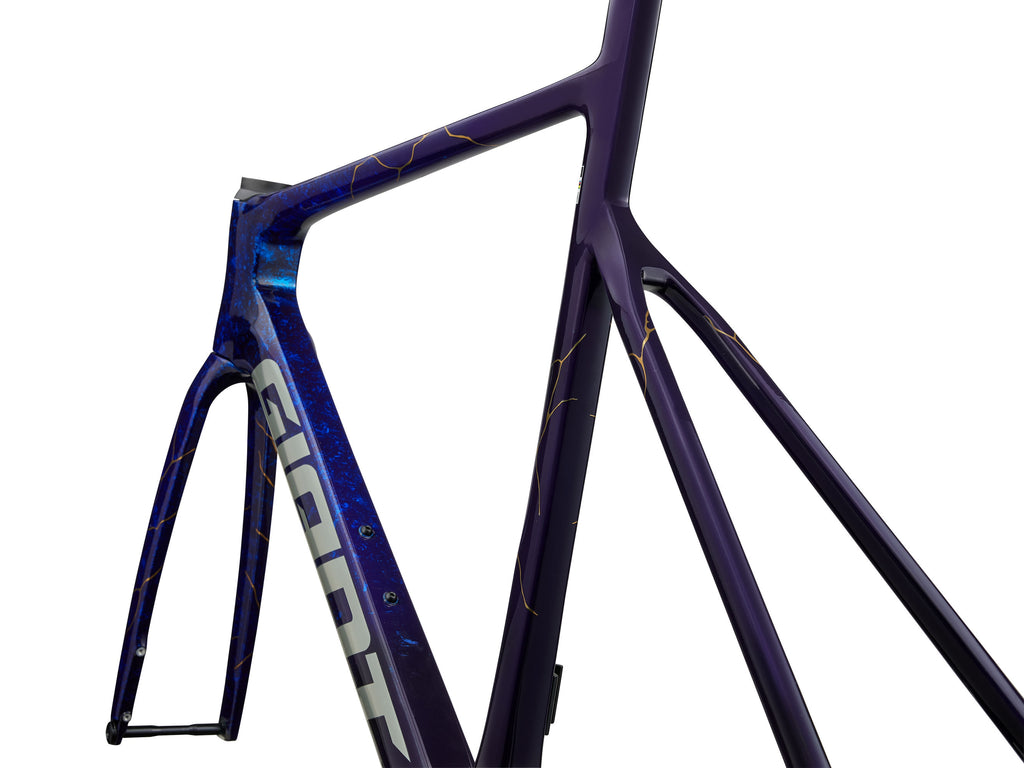

  • Frame
    Advanced SL-grade Composite, 12x142mm thru-axle, integrated seatpost, disc
  • Fork
    Advanced SL-grade composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
  • Seatpost
    Advanced SL-grade composite, integrated design, -5/+15mm offset
  • Bottom Bracket
    BB86 accepts press fit style BB only, bearing set not included
  • Extras
    Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, Computer Mount, Bottle Cages, 30mm max tyre size
  • Max Tyre Clearance
    30mm
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
