Revolt Advanced SL 2
  • Revolt Advanced SL 2
  • Revolt Advanced SL 2
  • Revolt Advanced SL 2
  • Revolt Advanced SL 2
  • Revolt Advanced SL 2
  • Revolt Advanced SL 2
  • Revolt Advanced SL 2
  • Revolt Advanced SL 2
Revolt Advanced SL 2

/ GIANT

Revolt Advanced SL 2

SKU: 9081003103
$8,999.00
$8,999.00

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.
Size
ColourDeep Lagoon
Out of stock

Specifications

The lightest, fastest gravel race bike ever built by Giant. Engineered as a system to deliver a competitive edge over long, demanding gravel efforts, the new Revolt Advanced SL combines aero efficiency with smooth, precise handling, helping you hold speed when others fade.



Key Performance Factors



ULTRALIGHT EFFICIENCY

The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro, while a new Contact SLR XR Integrated Handlebar, lighter WheelSystem, and CADEX GXR 45mm tyres add up to a total system weight savings of 288g*. The lighter weight and wider tyres result in more dynamic handling, faster acceleration, and greater climbing efficiency.

AERO SPEED OVER DISTANCE

Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimised for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Combined with new WheelSystems and tyres designed as a single aerodynamic unit, the system delivers 18.99 watts of total resistance reduction versus the previous Revolt Advanced Pro. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimised for 45mm tyres with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Highlights

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  XS S M ML L XL
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 75.0° 74.5° 74.5° 74.0° 74.0° 74.0°
C Top Tube Length (mm) 530 540 550 565 580 590
D Head Tube Length (mm) 90 100 120 135 155 180
E Head Tube Angle 70.5° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 74 71 67 67 67
H Wheelbase (mm) 1026 1027 1033 1039 1055 1066
I Chain Stay Length (mm) 433 433 433 433 433 433
J Bottom Bracket Drop (mm) 80 80 80 80 80 80
K Stack (mm) 525 536 557 573 592 616
L Reach (mm) 389 391 395 401 410 413
M Stand Over Height (mm) 726 743 762 779 798 818
O Stem Length (mm) 70 80 90 100 100 110
P Crank Length (mm) 165 165 170 170 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C 700C
Specs
  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Deep Lagoon
  • Frame
    Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
  • Fork
    Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc

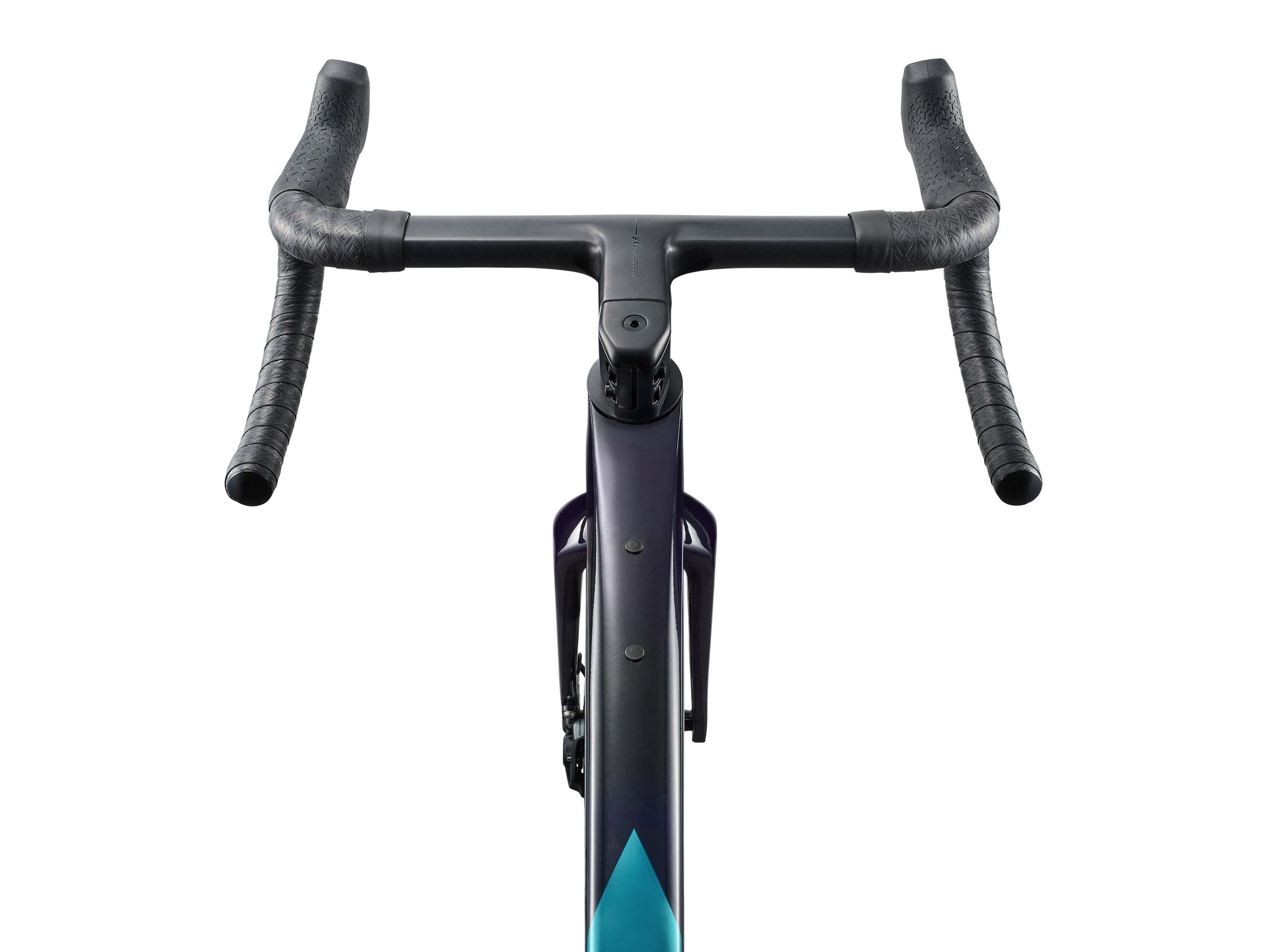

  • Handlebar
    Giant Contact SLR XR Integrated XS:70x38/42cm, S:80x38/42cm, M:90x40/44cm, M/L:100x40/44cm, L:100x40/44cm, XL:110x42/46cm
  • Grips
    Stratus Lite 3.0
  • Stem
    Giant Contact SLR XR Integrated XS:70, S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm
  • Seatpost
    Giant Contact SLR XR D-Fuse, composite, 20mm offset
  • Saddle
    Giant Grit SL
  • Shifters
    SRAM Rival AXS HRD, ED-Rival-E1, 1x13

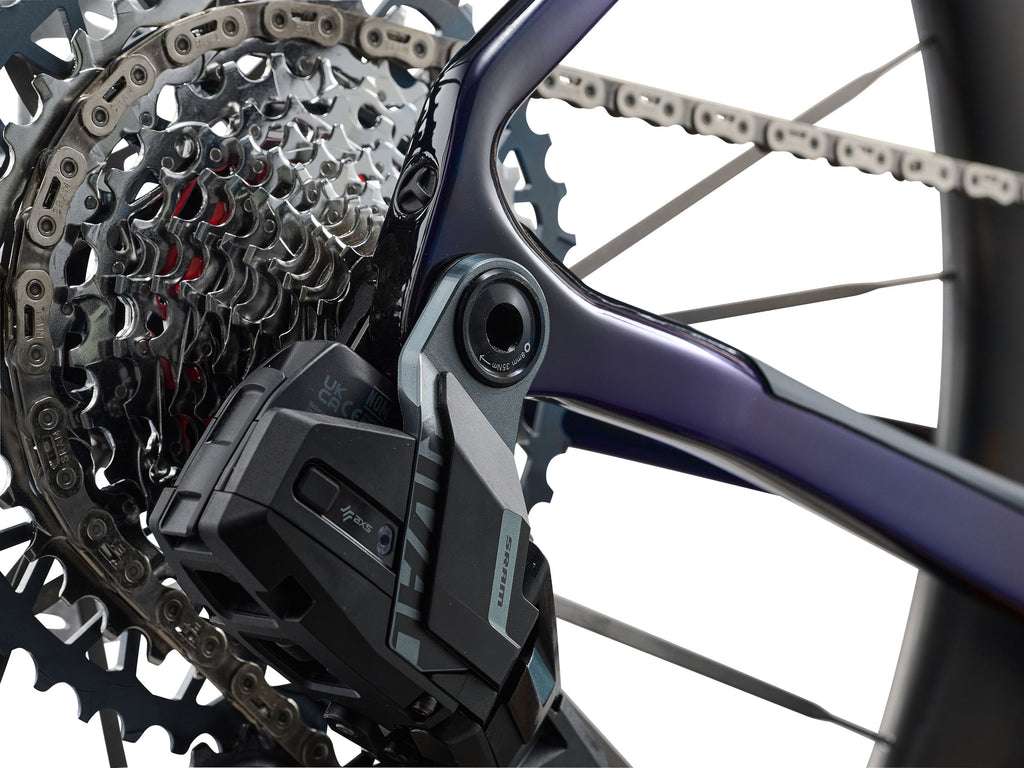

  • Rear Derailleur
    SRAM Rival AXS, RD-Rival-E-E1
  • Brakes
    SRAM Rival AXS HRD, ED-Rival-E1, SRAM PaceLine rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM Rival AXS HRD, ED-Rival-E1
  • Cassette
    SRAM Rival XG-1351-E1, 13-speed, 10-46
  • Chain
    SRAM Rival E1

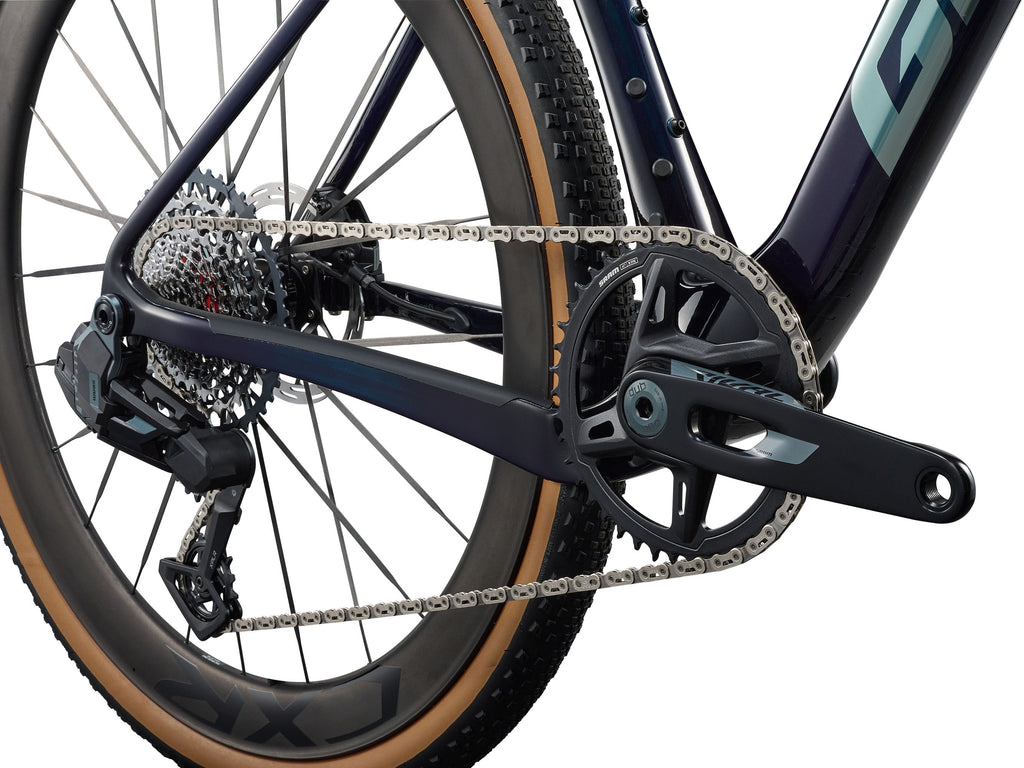

  • Crankset
    SRAM Rival XPLR AXS with spindle power meter, 42t XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant CXR 0 WheelSystem, hookless, carbon [F] 50mm, [R] 50mm
  • Hubs
    [F] Giant Low Friction Aero Hub, Center Lock [R] Giant Low Friction Aero Hub, 60-tooth ratchet driver, Center Lock
  • Spokes
    Aero Bladed Carbon Spoke
  • Tyres
    CADEX GXR, 700x45c, tubeless
  • Extras
    Tubeless prepared, computer mount, chain guide
  • Max Tyre Clearance
    53mm
  • Max Chainring Size
    54t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
