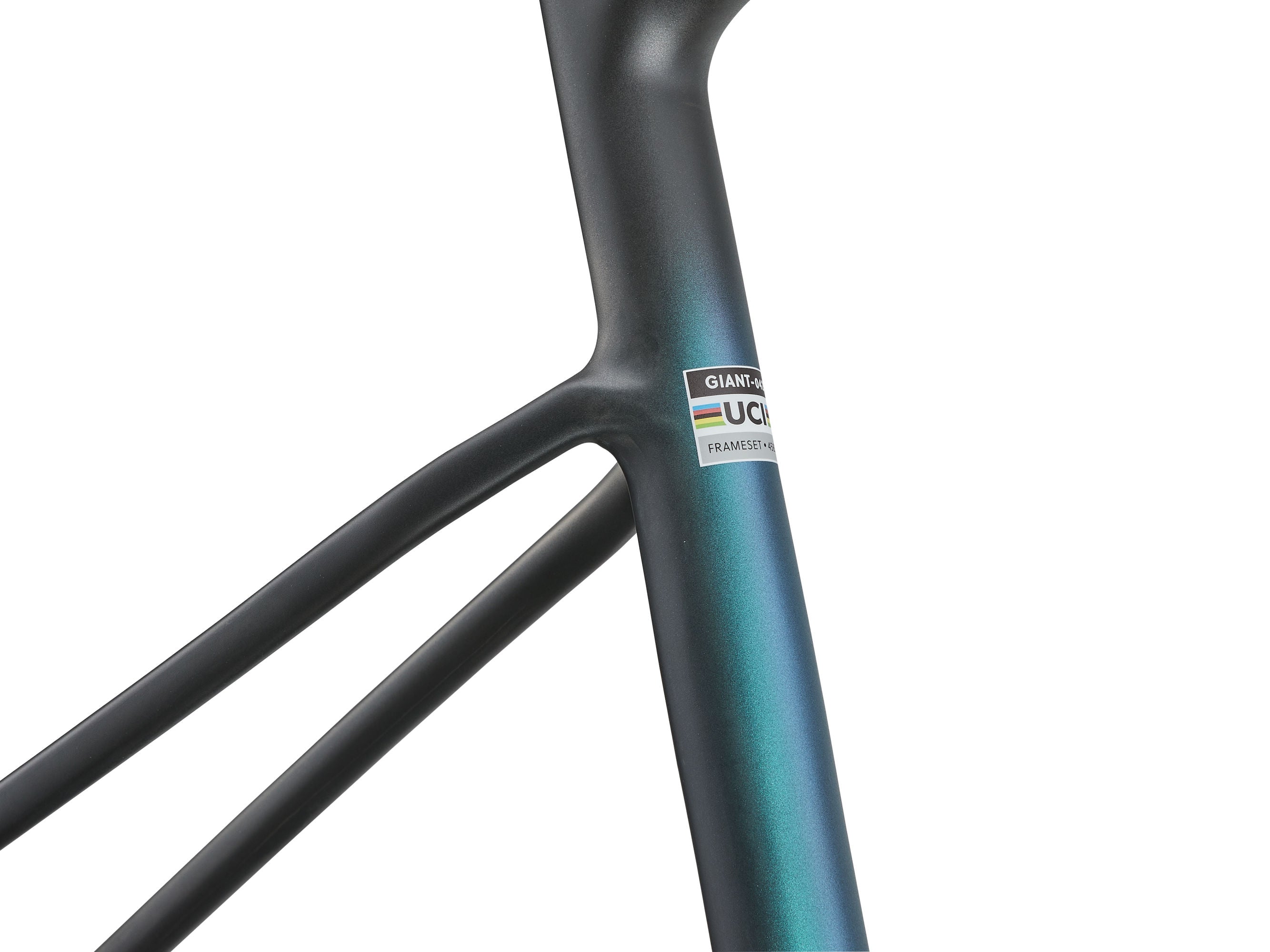

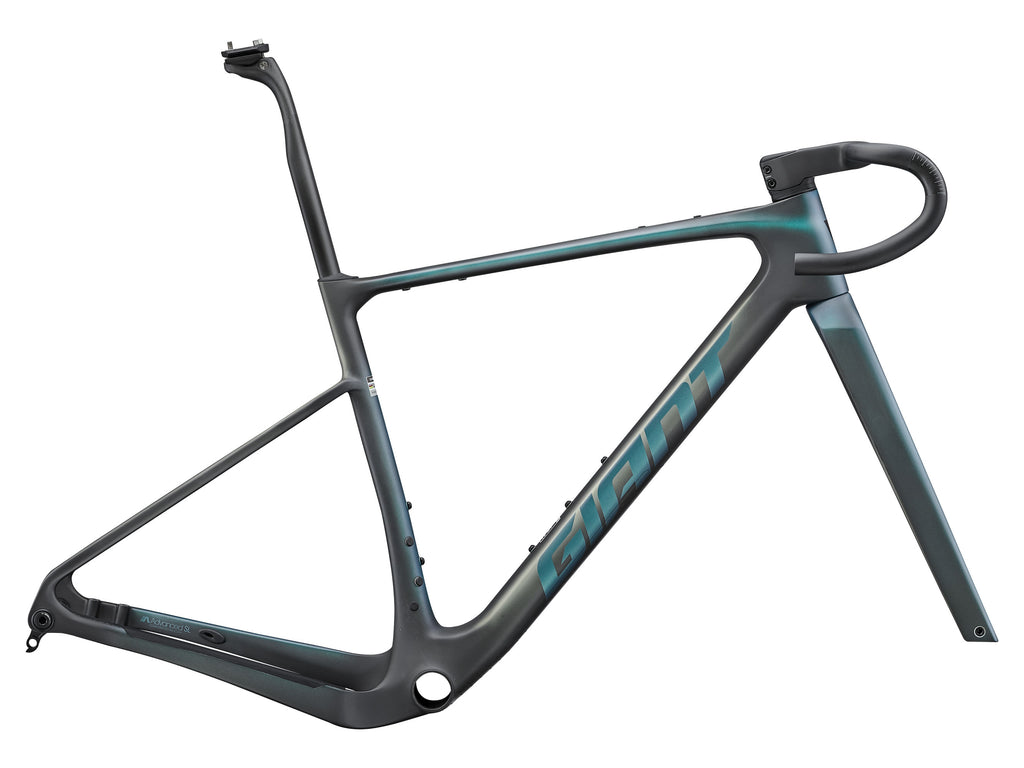

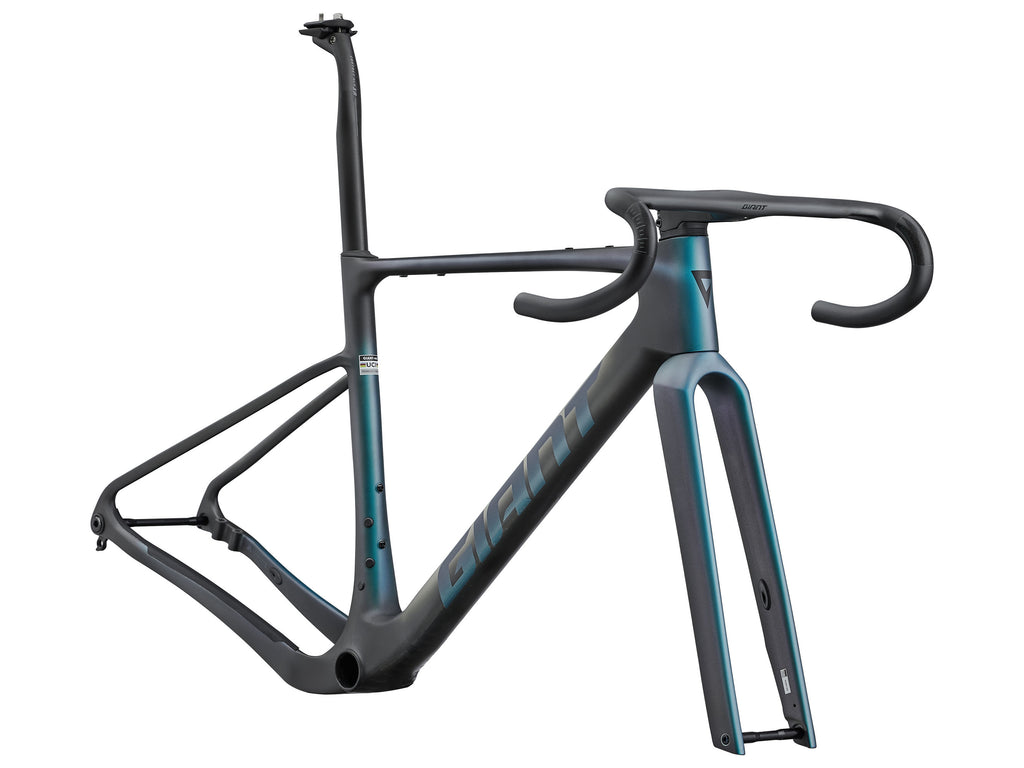

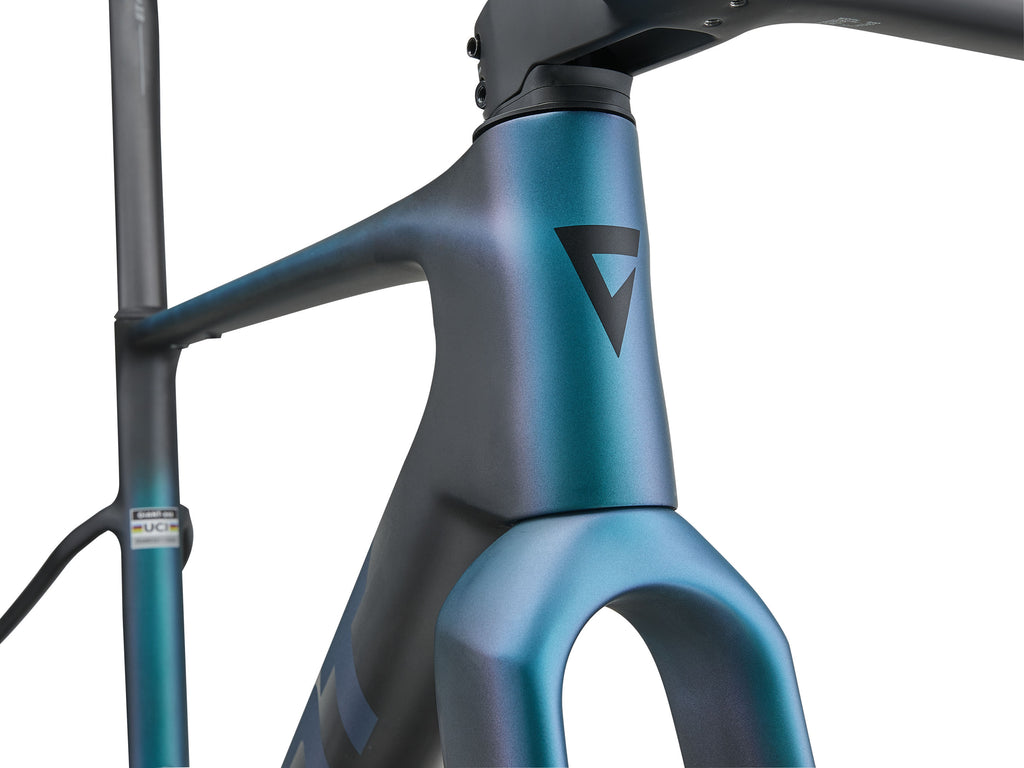

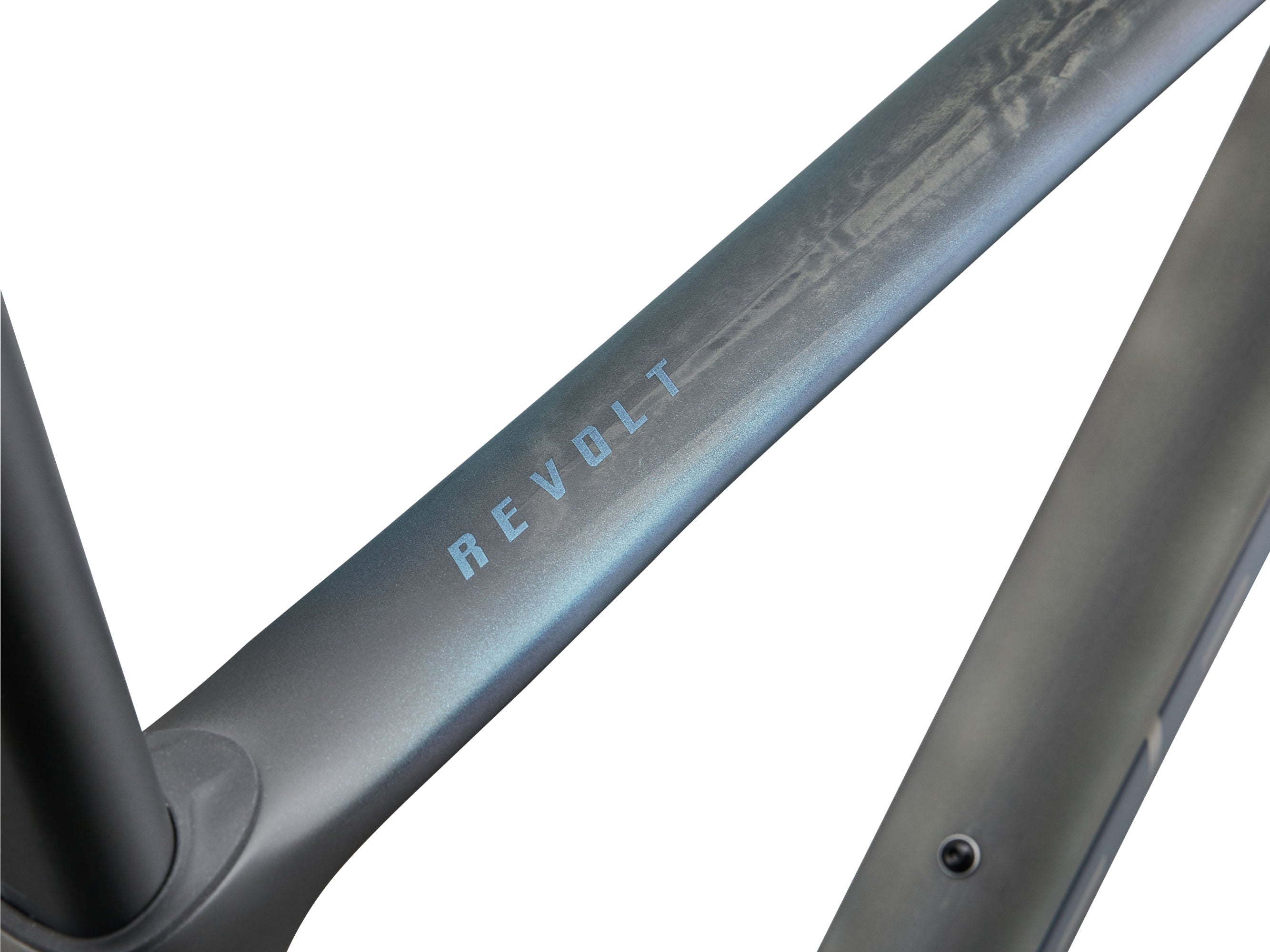

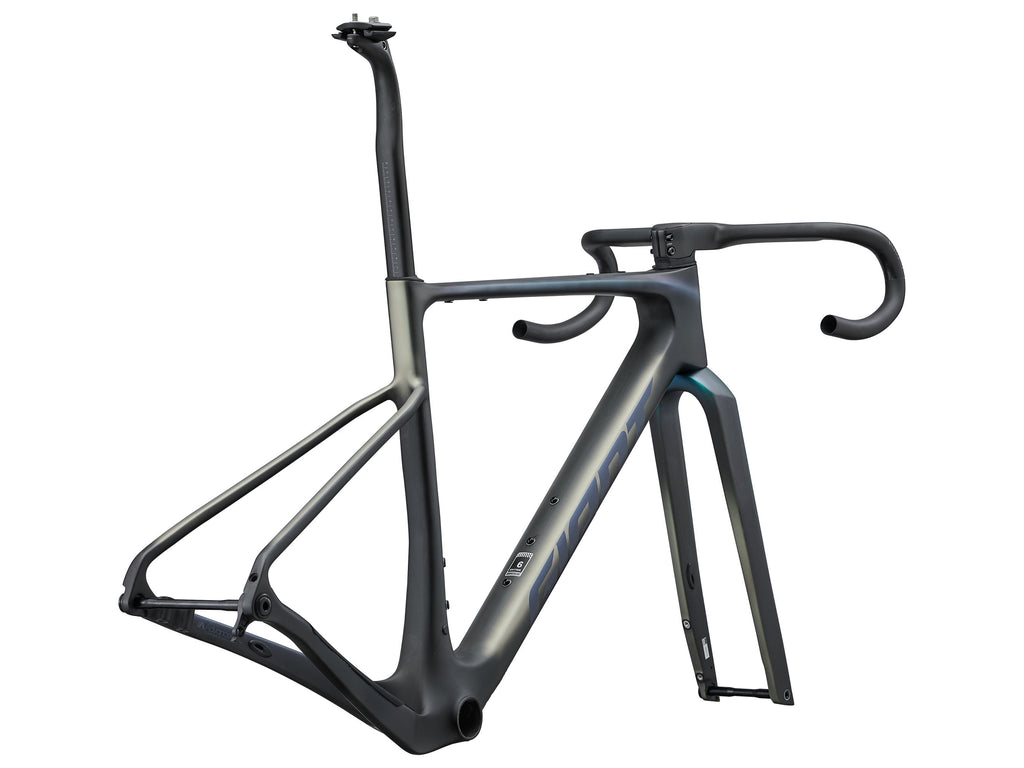

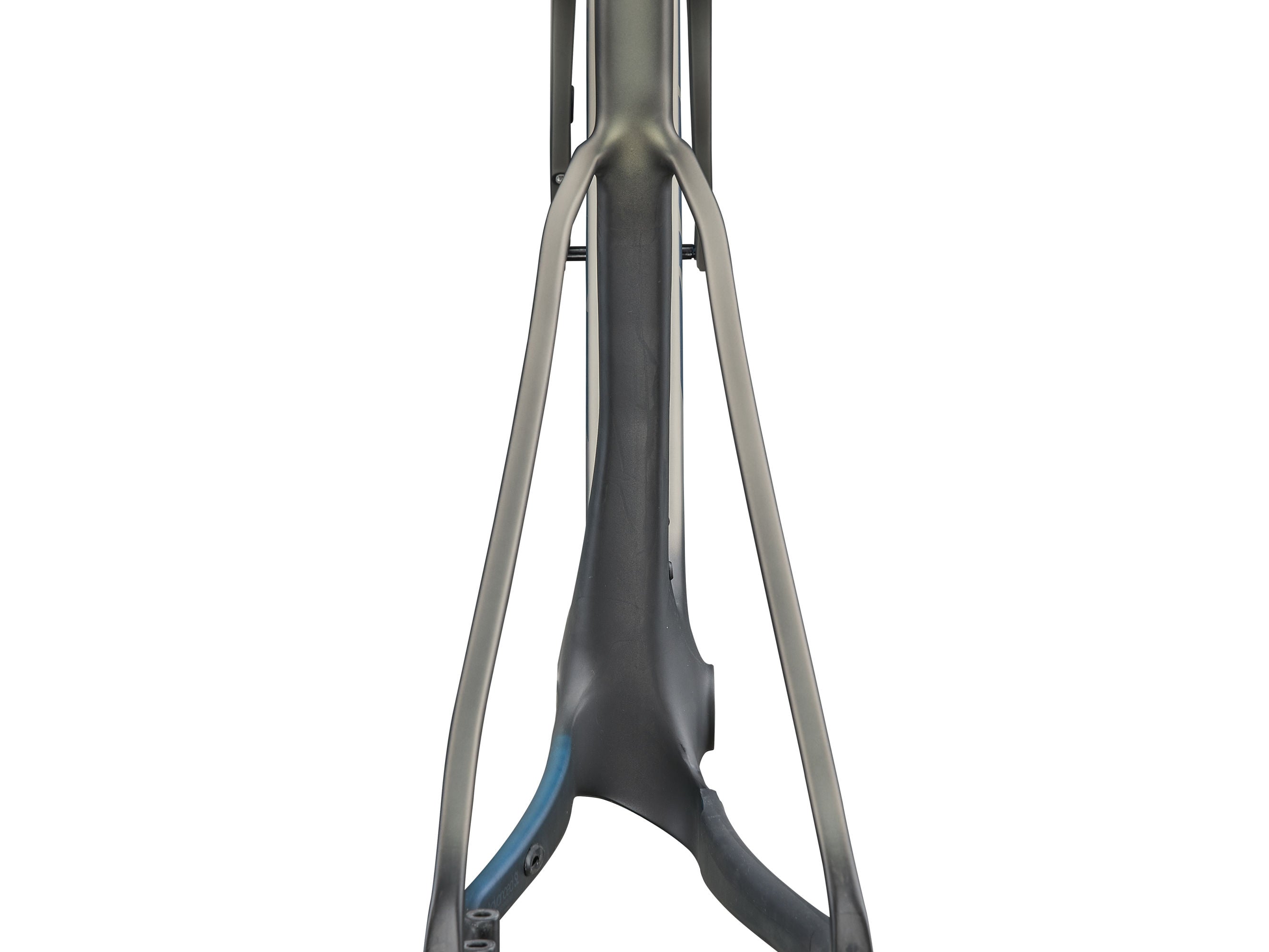

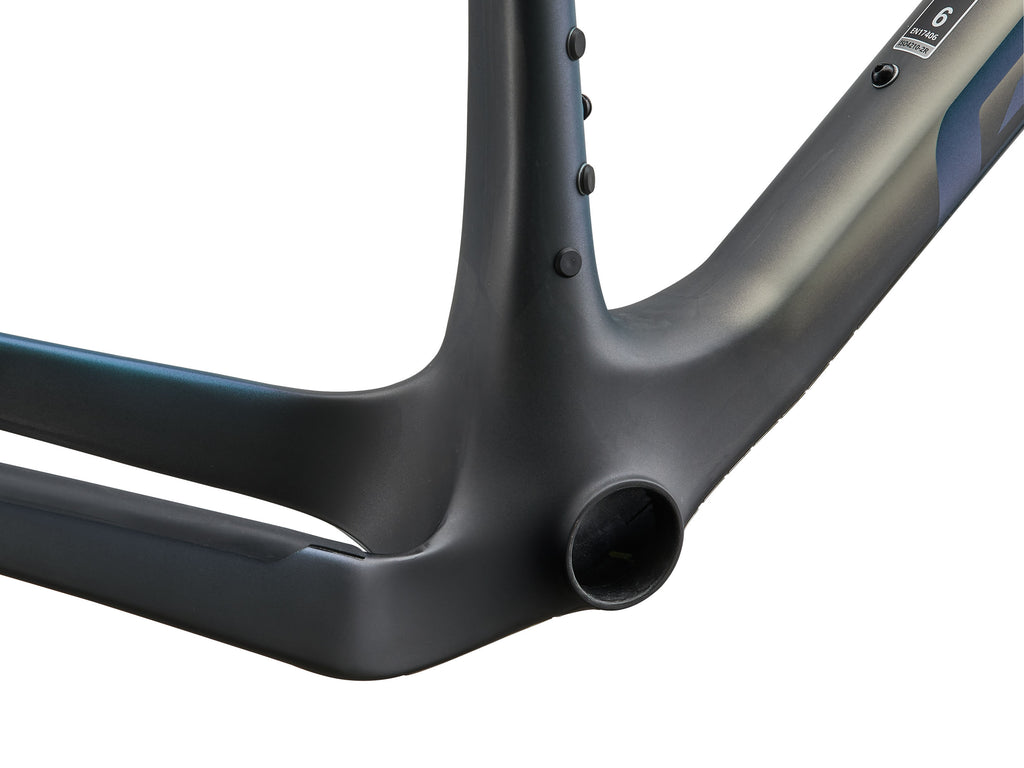

Revolt Advanced SL-FF
  • Revolt Advanced SL-FF
  • Revolt Advanced SL-FF
  • Revolt Advanced SL-FF
  • Revolt Advanced SL-FF
  • Revolt Advanced SL-FF
  • Revolt Advanced SL-FF
  • Revolt Advanced SL-FF
  • Revolt Advanced SL-FF
Revolt Advanced SL-FF

/ GIANT

Revolt Advanced SL-FF

SKU: 1909003103
$5,999.00
$5,999.00

RIDE NOW PAY LATER- Finance options with ZIP MONEY,Studio 19 Rental &Total Lifestyle Credit.
*Not available on some discounted items. Fees may apply.
Size
ColourSuperspeed Teal
Out of stock

Specifications

The new Revolt Advanced SL Frameset delivers the perfect blend of aerodynamic efficiency, low weight, and precise handling. Developed for elite gravel competition, it's engineered to help you carry speed further, stay composed on rough terrain, and create a race-ready machine tailored to your exact needs.



Key Performance Factors



ULTRALIGHT EFFICIENCY

The new frame and fork are handcrafted using our highest-grade Advanced SL composite, making this the lightest Revolt ever. The frame and fork save 176g compared to the previous generation Revolt Advanced Pro.

AERO SPEED OVER DISTANCE

Aerodynamic efficiency compounds over hours. The Revolt Advanced SL’s aero tube shaping is optimised for real gravel race speeds of 30–45 km/h, reducing frontal drag across the frameset, fork and cockpit. Lower drag over multiple hours means less fatigue, higher sustainable speed, and measurable time savings at the finish line.

RACE-TUNED GEOMETRY

With a 557mm stack and 395mm reach (size M), a steeper 74.5° seat tube angle and a 1,033mm wheelbase with 433mm chainstays, the new Revolt Advanced SL puts riders in an aggressive, aerodynamic race posture. Forward, low and efficient. At race pace on loose terrain, it feels fast, precise and composed. Optimised for 45mm tyres with 53mm maximum clearance, it’s purpose-built for modern gravel racing.

Highlights

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorised dealer to determine the correct size.
Available sizes may vary from country to country.

bike diagram with measurements referenced in table that follows

  S M ML L XL
A Seat Tube Length (mm) 450 470 490 510 530
B Seat Tube Angle 74.5° 74.5° 74.0° 74.0° 74.0°
C Top Tube Length (mm) 540 550 565 580 590
D Head Tube Length (mm) 100 120 135 155 180
E Head Tube Angle 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50
G Trail (mm) 74 71 67 67 67
H Wheelbase (mm) 1027 1033 1039 1055 1066
I Chain Stay Length (mm) 433 433 433 433 433
J Bottom Bracket Drop (mm) 80 80 80 80 80
K Stack (mm) 536 557 573 592 616
L Reach (mm) 391 395 401 410 413
M Stand Over Height (mm) 743 762 779 798 818
O Stem Length (mm) 80 90 100 100 110
P Crank Length (mm) 165 170 170 172.5 172.5
Q Wheel Size 700C 700C 700C 700C 700C
Specs
  • Sizes
    S, M, M/L, L, XL
  • Colours
    Superspeed Teal
  • Frame
    Advanced SL-grade composite, 12x142mm thru-axle, disc, UDH dropout
  • Fork
    Advanced SL-grade composite, full-composite, updated OverDrive steerer, 12mm thru-axle, disc
  • Handlebar
    Giant Contact SLR XR Integrated XS:70x38/42cm, S:80x38/42cm, M:90x40/44cm, M/L:100x40/44cm, L:100x40/44cm, XL:110x42/46cm
  • Stem
    Giant Contact SLR XR Integrated XS:70, S:80mm, M:90, M/L:100, L:100, XL:110
  • Seatpost
    Giant Contact SLR XR D-Fuse, composite, 20mm offset
  • Extras
    Computer mount, chain guide
  • Max Tyre Clearance
    53mm
  • Max Chainring Size
    54t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
