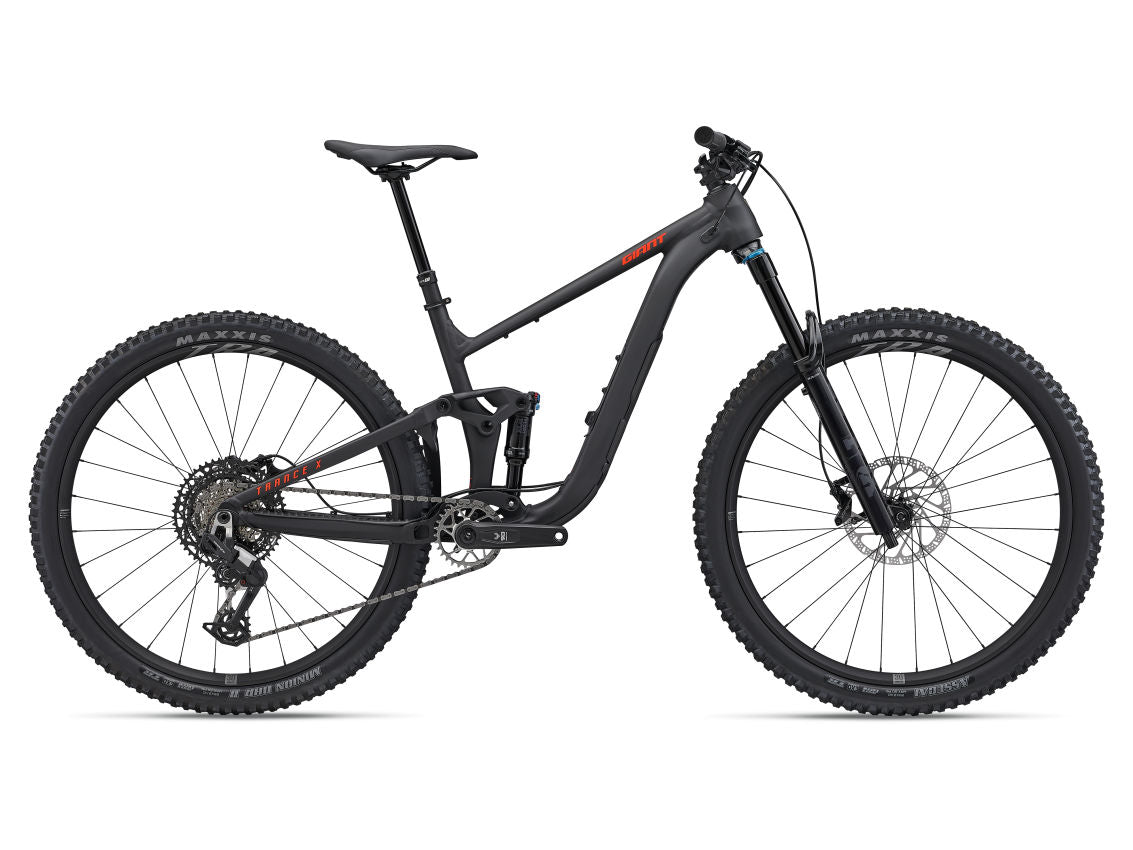

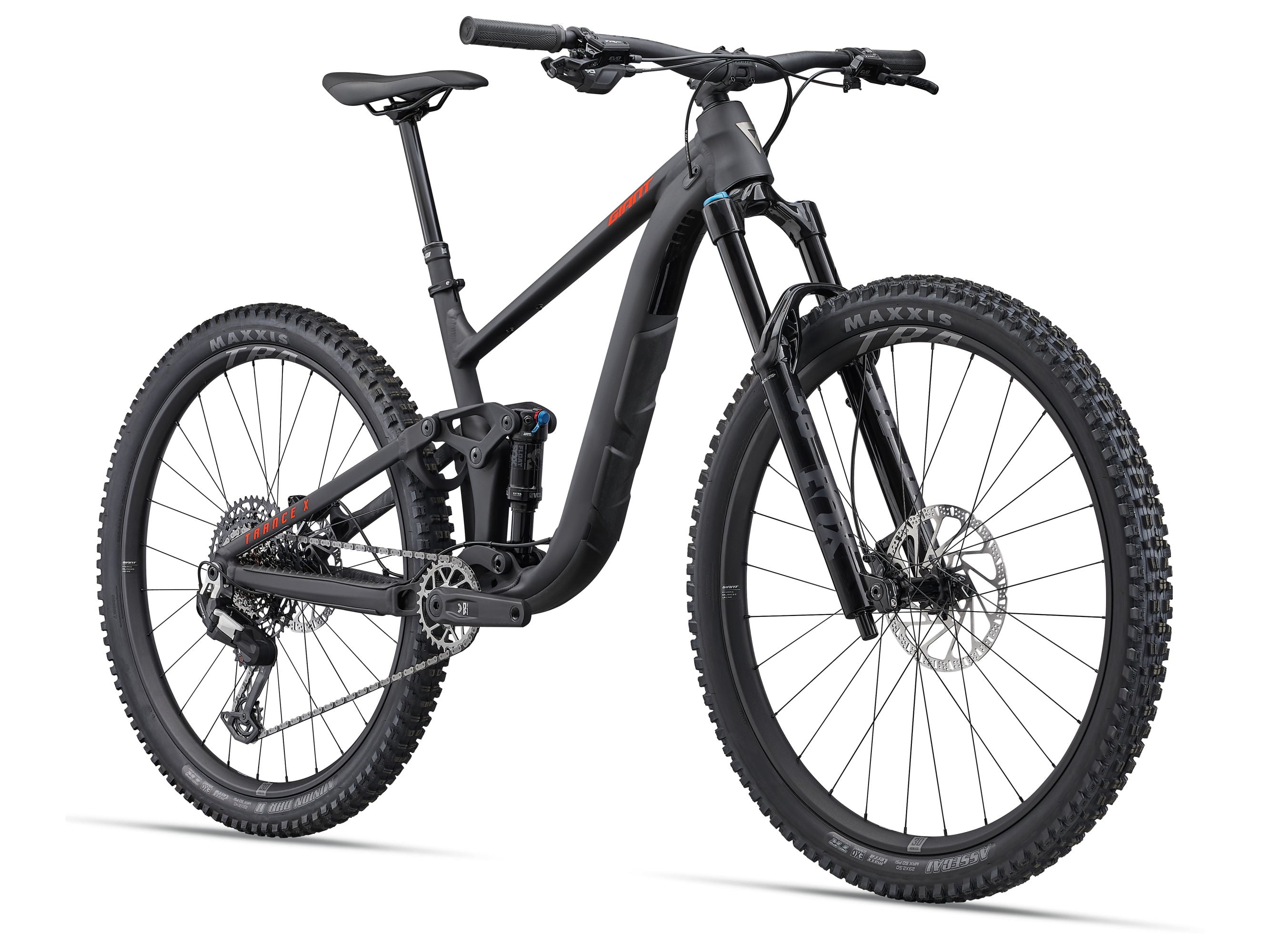

Trance X 1

Updated suspension

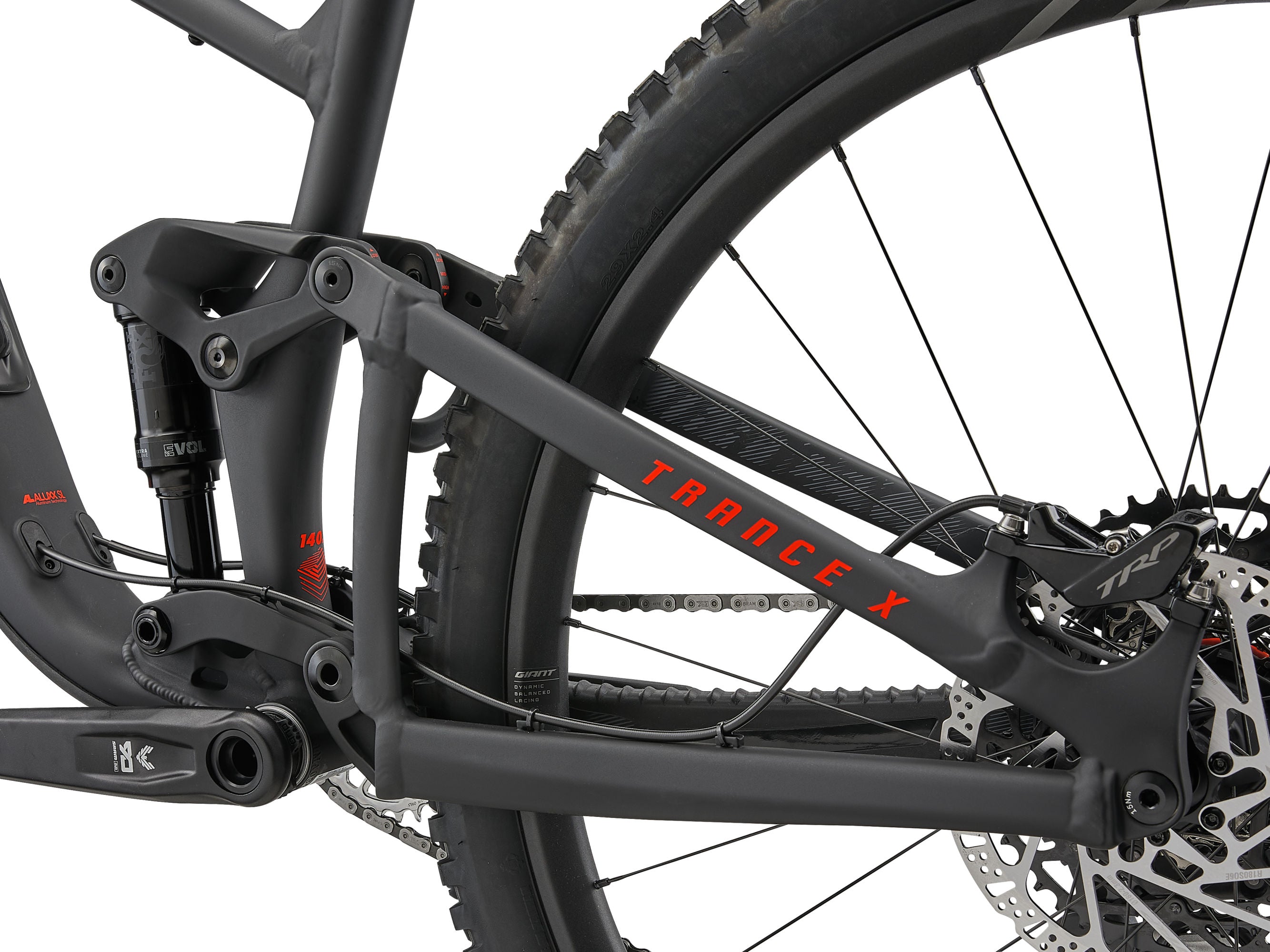

A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

Adjustable trail geometry

A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

Rear wheel options

All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5-inch rear. The stock 29-inch rear wheel optimises stability and roll-over capabilities, while a 27.5-inch option delivers a more agile, snappier feel and more saddle-to-tyre clearance in the rear. Some riders favour this "mullet" setup for riding steep, technical terrain.

• Sizes
  S, M, L, XL
• Colours
  Black
• Frame
  ALUXX SL-grade Aluminium front and rear triangles, 140mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
• Fork
  Fox 36 Float Performance, 150mm, GRIP damper, 3 position, 15x110mm Kabolt X thru-axle, 44mm offset
• Shock
  Fox Float Performance, 2 position, custom tuned for Giant
• Handlebar
  Giant Contact TR35, alloy, 20mm rise
• Grips
  Giant Tactal Pro Single lock-on
• Stem
  Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Seatpost
  Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
• Saddle
  Giant Romero
• Pedals
  N/A
• Shifters
  SRAM Eagle 90, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  SRAM Eagle 90 Transmission
• Brakes
  TRP EVO Expert, hydraulic, TRP 2.3mm rotors [F]203mm, [R]180mm
• Brake Levers
  TRP EVO Expert
• Cassette
  SRAM XS 1270, 10x52
• Chain
  SRAM 70 Transmission
• Crankset
  SRAM Eagle 90 Transmission, 30t, 55mm chainline S:165mm, M:165mm, L:165mm, XL:165mm
• Bottom Bracket
  SRAM DUB, Press Fit
• Rims
  Giant TRA Hookless Tubeless ready Alloy, 29", 30mm inner width
• Hubs
  [F] Giant TRA MTB Alloy Hub, 6 Bolt, 28H [R] Giant TRX MTB Alloy Hub, SRAM XD Drive Body Pawl Driver (Pawl 36x2 T), 28H
• Spokes
  Sapim Laser
• Tyres
  [F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO, TR [R] Maxxis Minion DHR II 29x2.4 WT, MaxxTerra, EXO, TR tubeless
• Extras
  Tubeless prepared, chain guide, 3M tailgate protector
• Max Tyre Clearance
  2.5"
• Max Chainring Size
  34t
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
